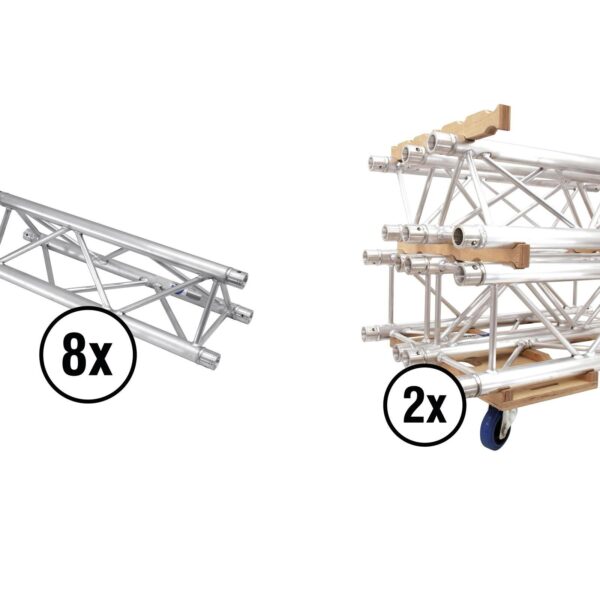

ALUTRUSS Set TRILOCK E-GL33 2000 + Truss transport board

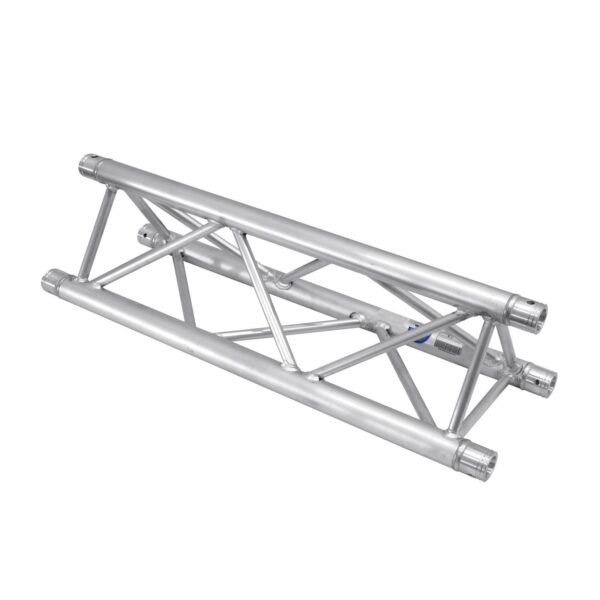

60302186 ALUTRUSS TRILOCK E-GL33 2000 3-Way Cross Beam

TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres. Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessories, this system is highly versatile and offers unlimited design possibilities.The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product! ALUTRUSS elements are made in Europe and welded by specially trained welders certified by the German SLV association.Please note: this truss system must never be combined with other systems!

60302186 ALUTRUSS TRILOCK E-GL33 2000 3-Way Cross Beam

3-point truss system
• Strong EN-AW 6082 alloy for high loads
• High-quality aluminum-tubes with 50 mm in diameter
• Easy installation
• Low weight
• Distance center – center: horizontal 240 mm, vertical 207 mm
• For exhibition and shop installers, discotheque and theatre installations
• 1 x Connection set included

• Made in Europe

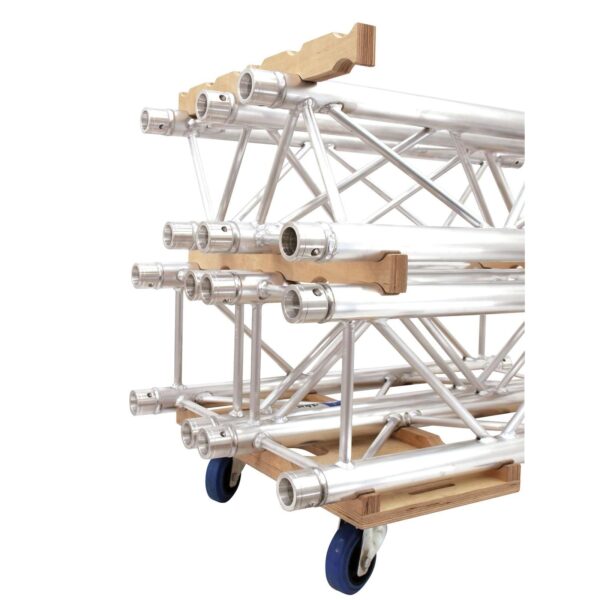

60320306 ALUTRUSS Truss Transport Board Combo for 3 Wheels

Practical transport cart for QUADLOCK and TRILOCK truss elements
• Practical transport cart made of multiplex wood (15 mm)
• Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
• Quick and secure stacking with optional stacking ridges
• Grip hole and cut-outs for safety bands for safe transport of the truss elements
• 12 borings for mounting castors (optinal)
• The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)

• Made in Germany

30004005 ROADINGER Swivel Castor 100mm BLUE WHEEL light blue

100 mm swivel castor
• Double ball race
• Housing made of steel, zinc-plated
• Blue elastic tyre
• Roller race hub bearing
• Replaceable bolt-on wheel
• Height: 128 mm
• Carrying capacity: 450 kg per set (4 castors)

• Made in Germany

30004007 ROADINGER Swivel Castor 100mm BLUE WHEEL with brake

100 mm swivel castor
• Double-action brake (wheel and swivel)
• Double ball race
• Housing made of steel, zinc-plated
• Blue elastic tyre
• Roller-race hub bearing
• Replaceable bolt-on wheel
• Height: 128 mm
• Carrying capacity: 450 kg per set (4 castors)

• Made in Germany

30004056 ROADINGER Bolt Set for Wheels

Complete set (4 x screw, 4 x nut, 4 x washer)
• Screw: hexagon screw M8 x30 DIN933 galvanized
• Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
• Washer: FormA 8,4 DIN125 galvanized

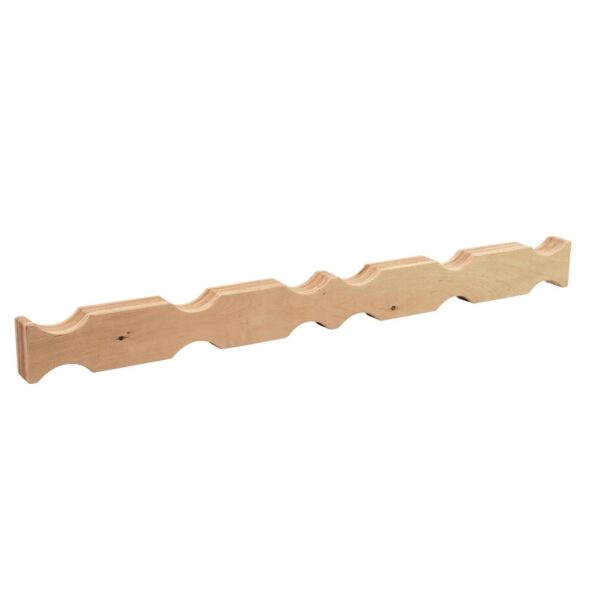

60320300 ALUTRUSS Truss Transport Ridge Combo

Stacking ridge for QUADLOCK and TRILOCK truss elements
• Stacking ridge for quick and secure stacking of truss elements on matching transport carts
• Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
• Multiplex wood (30 mm)

• Made in Germany

60206787 SHZ Clamping Belt S400 Ratchet 5m/25mm black

Clamping belt
• Belt 25 mm
• Complies with EN 12195-2
• 1-part
• Length 5 m
• LC400/800daN surroundings
• With ratchet
• Belt colour black

• Made in Germany

60302186 ALUTRUSS TRILOCK E-GL33 2000 3-Way Cross Beam

Main chords:   50 x 2 mm
Braces:   20 x 2 mm
Alloy:   EN-AW 6082 T6 (AlMgSi1 T6)
Welding material:   AlMg 5
Welding technique:   TIG-welding
Outer dimensions:
Width:   290 mm
Height:   257 mm
Length:   2000 mm
Weight:   7.9 kg

60320306 ALUTRUSS Truss Transport Board Combo for 3 Wheels

Recommended maximum load:   6 truss elements vertical (height approx. 2.1 m)
Dimensions (L x W x H):   600 x 300 x 47 mm
Weight:   3.2 kg

30004005 ROADINGER Swivel Castor 100mm BLUE WHEEL light blue

Color:   Light blue

30004007 ROADINGER Swivel Castor 100mm BLUE WHEEL with brake

Color:   Light blue

60320300 ALUTRUSS Truss Transport Ridge Combo

Dimensions (L x W x H):   600 x 30 x 50 mm
Weight:   420 g
