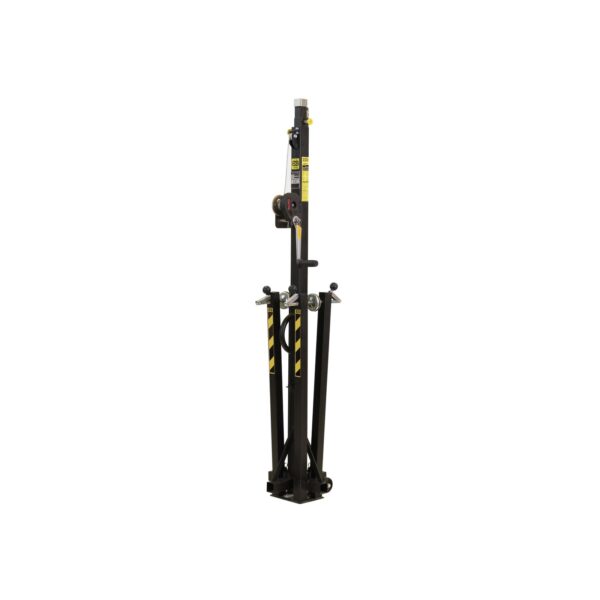

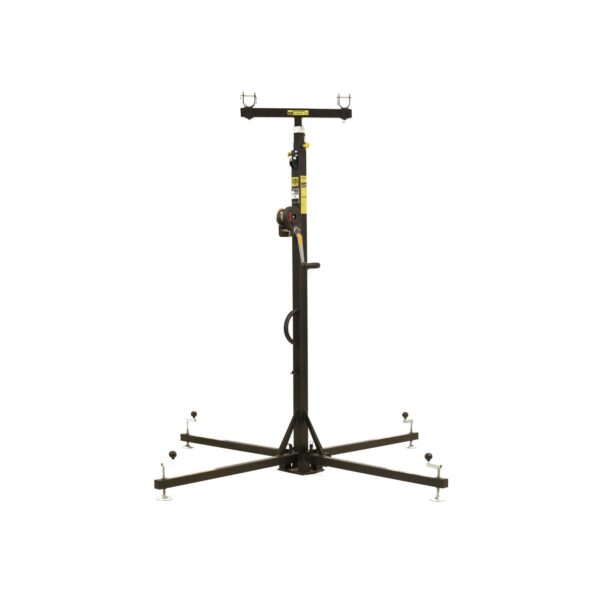

BLOCK AND BLOCK SIGMA-50 Truss lifter 120kg 5m
969,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
High-quality ground support for weights up to 120 kg, made in EU
- Three-part telescopic ground support
- 4 mm steel rope
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted

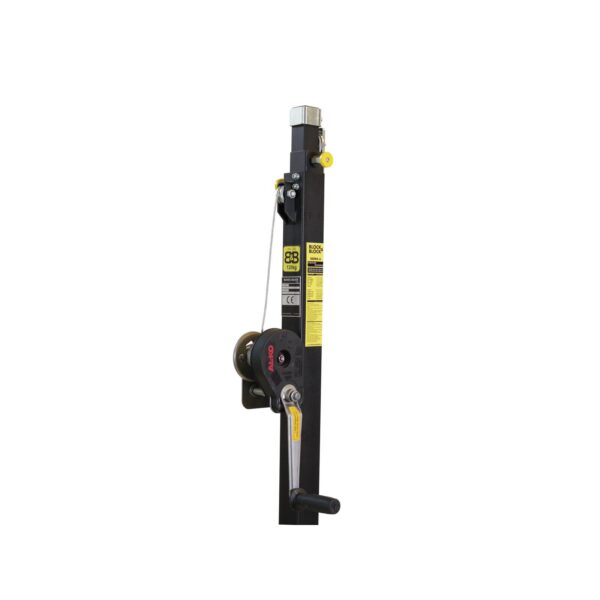

- AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6×19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Made in Europe
| Minimum load: | 25 kg |
| Max. Height: | 5 m |
| Min. height: | 1.9 m |
| Weight: | 35 kg |
| Adapter: | 35 mm |
| Transport dimensions: | 0.38 x 0.38 x 1.9 m |
| Base area: | D= 2.06 m |
| Steel rope: | 4 mm |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Maximum carrying capacity: | 120 kg |
| Peso | 360,000 kg |
|---|---|
| Dimensioni | 19,000 × 0,3800 × 0,3800 cm |
| Codice Ean | 4026397644173 |
