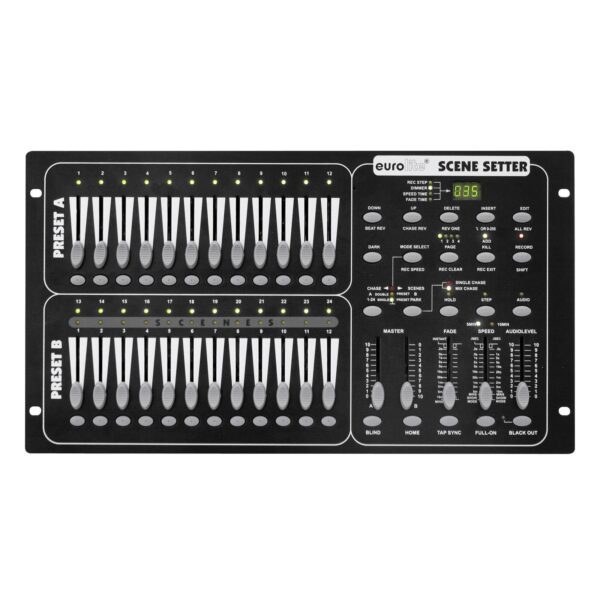

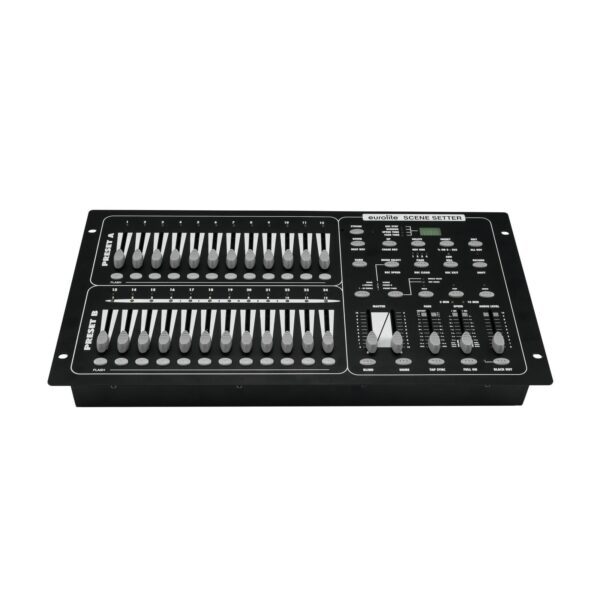

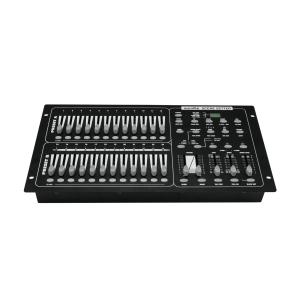

Comfortable DMX controller 24 channels
- 24 control channels
- 48 memorizable programs via 4 pages
- 12 scenes can be called up directly via the faders
- Blackout function
- Mix and single chase function
- Blind/home function
- Sound control via built-in microphone or via line input
- Supports standard MIDI

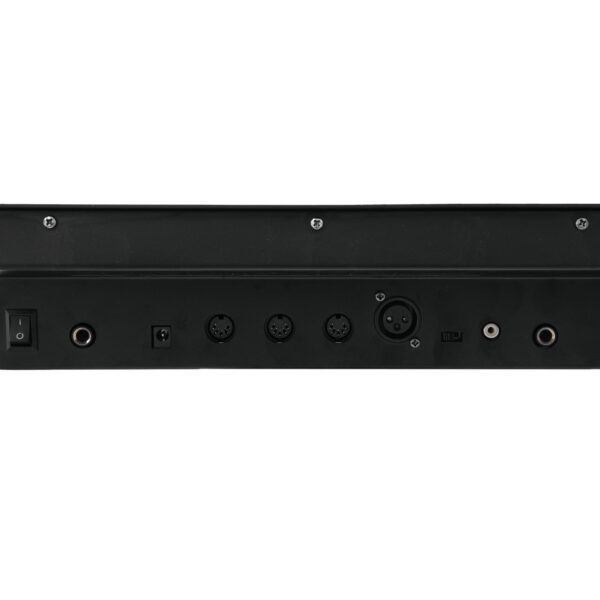

- 3-pin XLR connector with polarity selector
- Footswitch control possible
- Desktop console
- Rack installation with 6 units
| Power supply: | 230 V AC, 50 Hz |

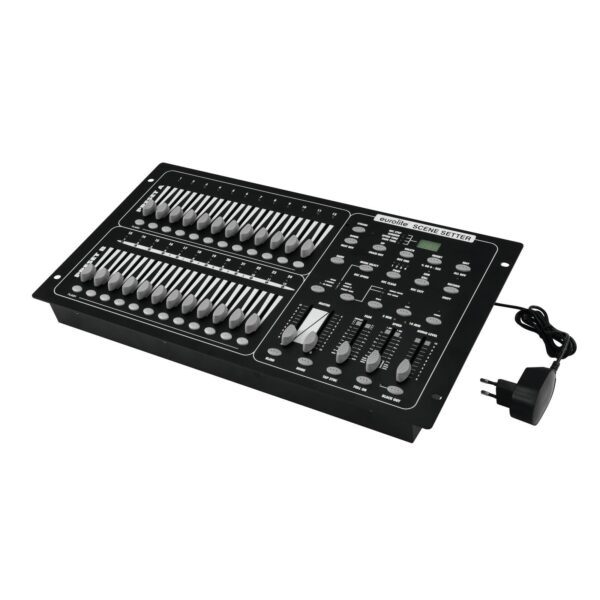

| via 12 V DC, 500 mA power unit included in the delivery | |
| Power consumption: | 4 W |
| Number of control channels: | 24 |
| Sound-control: | via built-in microphone or |
| RCA line input (min. 100 mV) | |
| DMX512 output: | 3-pin XLR connector with polarity selector |
| Dimensions (L x W x H): | 483 x 264 x 90 mm |
| Rack installation with 6 U | |
| Minimum mounting depth: | 80 mm |
| Weight: | 5 kg |
