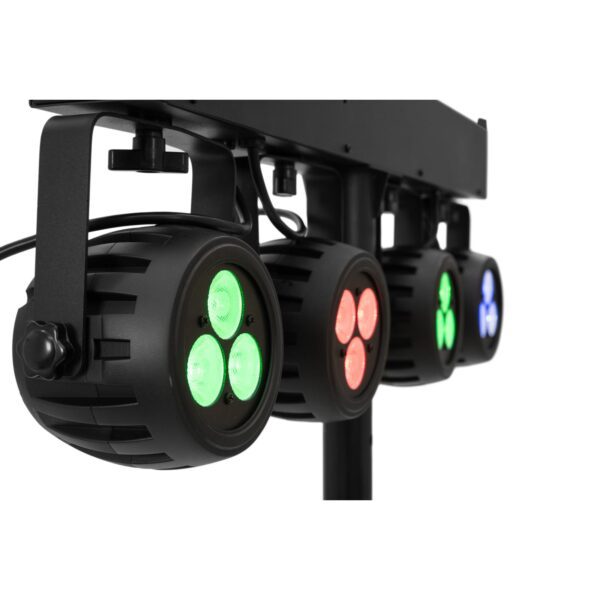

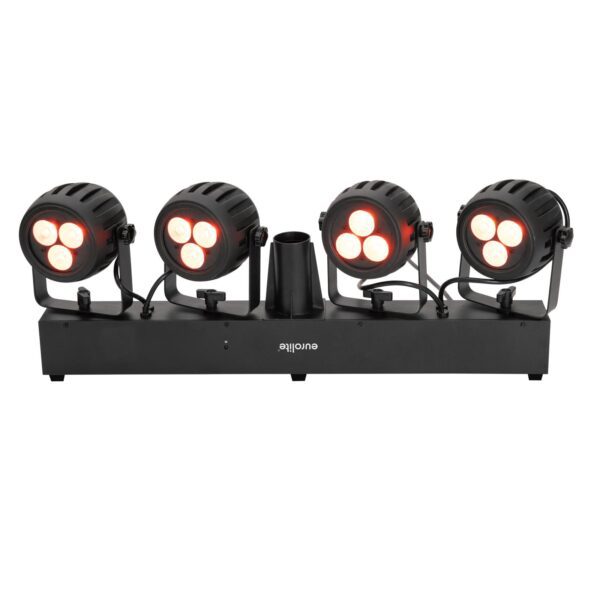

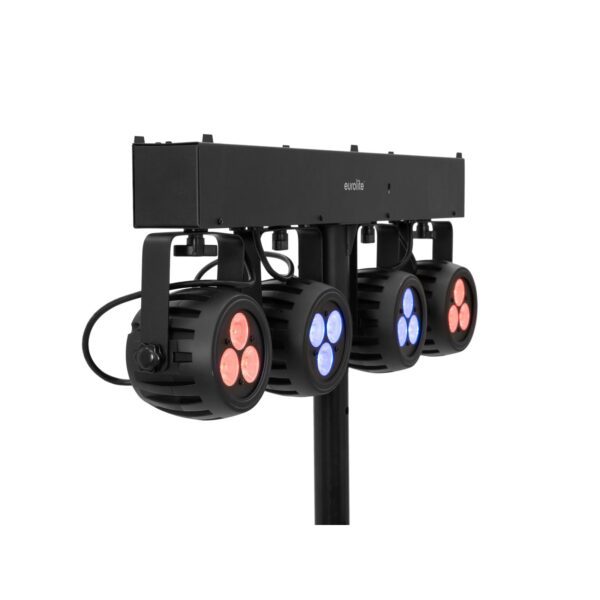

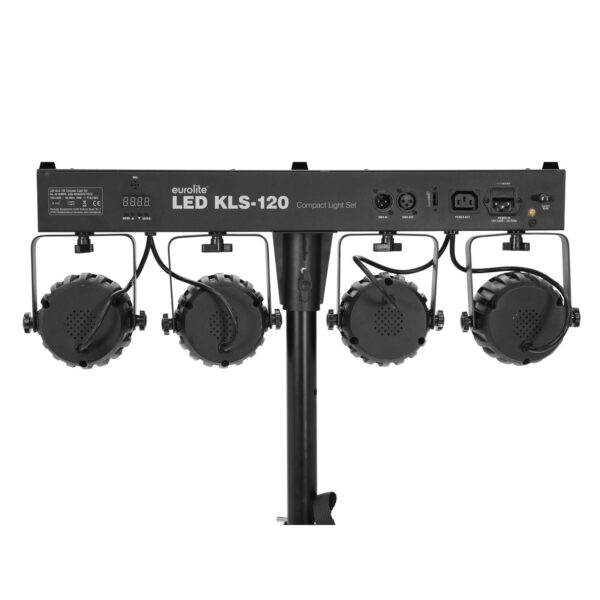

Compact Light Set with 4 RGBW Spots
- Crossbar with integrated DMX control unit and stand sleeve
- Ultra-light ideally suited for mobile use
- Ideal for bands, stages or solo entertainers
- Suited for installation on a speaker stand (not included) or truss
- Comes pre-assembled with practical transport bag
- 3 powerful 4in1 LEDs per spot provide for an exquisite RGBW color mix
- Movable and tiltable spotlights
- Via DMX, each spot can be individually controlled
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Supports QuickDMX – the wireless DMX-system from Eurolite
- Built-in phantom fed socket for QuickDMX receiver (see accessories)
- Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, Master/Slave operation
- Addressing and setting via control panel with 4-digit LED display
- Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
- Black lacquered metal version with movable mounting bracket
- IEC terminals for power linking up to 8 units
- LED: 12 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 4; 7; 16; 19 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; IR remote control; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional)
- Is in EASY SHOW; LED EASY OPERATOR DELUXE already preprogrammed
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug |
| Power output: | IEC connector (F) mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 12 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 4; 7; 16; 19 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; IR remote control; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); EASY SHOW; LED EASY OPERATOR DELUXE |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | 18° |
| Beam angle (1/10 peak): | 34° |
| Housing color: | Black |
| Attachment system: | Ø 35mm |
| Dimension: | Width: 61.6 cm Depth: 10.0 cm Height: 22.6 cm |
| Weight: | 3.70 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
