EUROLITE LED Mini PFE-12 WW

Name: EUROLITE LED Mini PFE-12 WW
Brand: Eurolite
SKU: 40001761
Availability: InStock

60,00 €

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

Disponibile

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 4026397742091 COD: 40001761 Categoria: Fari statici Marchio: Eurolite

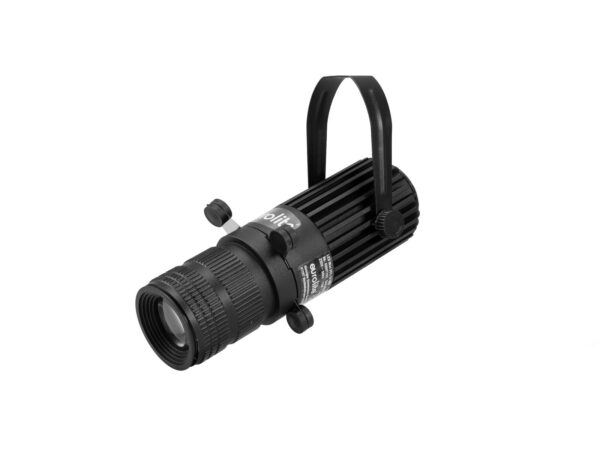

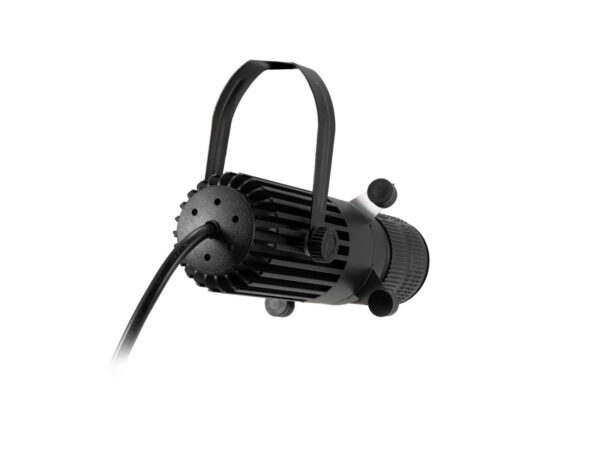

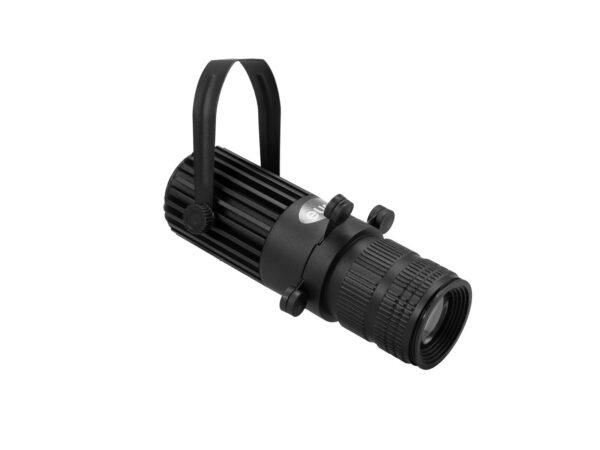

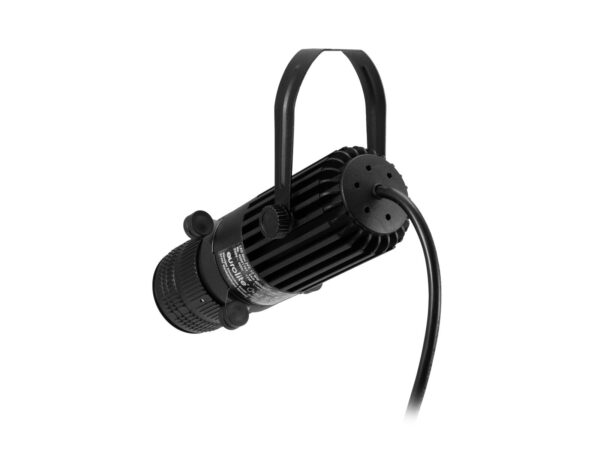

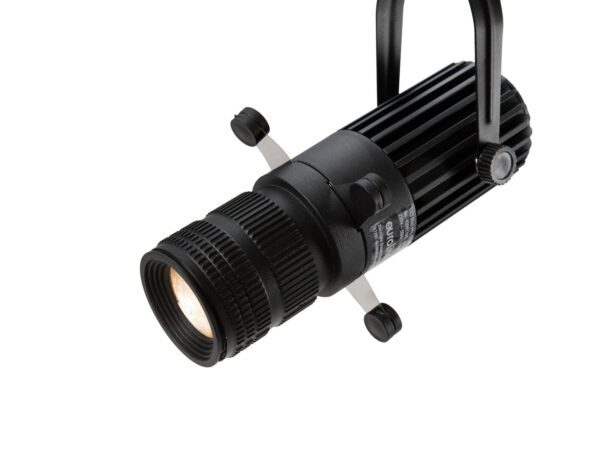

Fanless spotlight with 12 W COB LED, adjustable light beam shape, color rendering index (CRI) >90

4 shutter blades
1 powerful LED COB (chip-on-board)
Focus manual
Spot effect
The device is cooled by passive convection cooling
Easy installation
With a beam angle of 28°
Very high color rendering index (CRI)
With mounting bracket
Various versions available
For application areas such as: Trade fair and shop fitting; installation; restaurants, bars and hotels; video and photography
Very quiet working noise
Application possibility: Suspended

Package contents

Power supply:	230 V AC, 50 Hz
Power consumption:	12 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Cable construction:	3 x 0,75 mm² H05VV-F
LED type:	1 x COB (chip-on-board)
Equipment:	Focus manual
Cooling:	Passive convection cooling
Setup:	Easy installation
Beam angle:	28°
Beam angle (1/2 peak):	28°
Color temperature:	2778K
Color rendering index (CRI):	98 Ra
Illuminance in Lux (lx):	Warm white (WW) 1m: 2388 lx, 3m: 282,5 lx, 6m: 70,06 lx
Luminous flux:	960 lm
Housing color:	Black matte
Attachment system:	Mounting bracket
Material:	Aluminum casting
Dimensions:	Length: 19 cm Width: 8,5 cm Height: 12,5 cm
Weight:	0,50 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Energy efficiency class (A – G):	F
