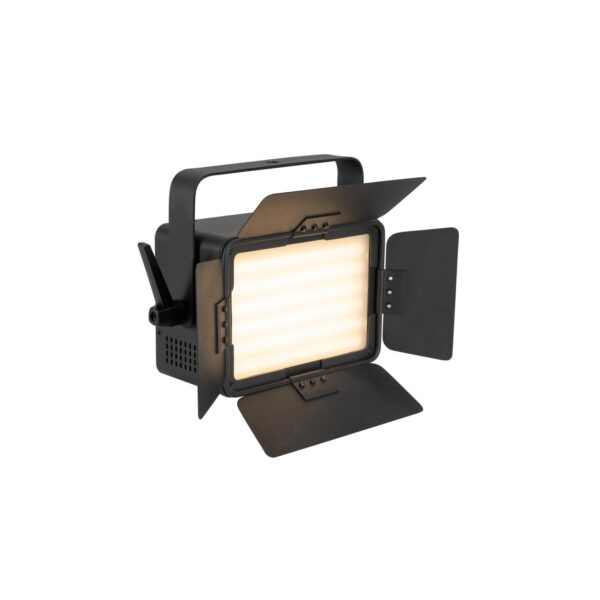

EUROLITE LED PLL-168 CW/WW Panel

Name: EUROLITE LED PLL-168 CW/WW Panel
SKU: 40001850
Price: 237.00 EUR
Availability: InStock

237,00 €

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

Disponibile

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 4026397697292 COD: 40001850 Categoria: Statische Scheinwerfer

DMX-controlled surface light with 168 dual white LEDs, QuickDMX port and barn doors

4 barn doors to avoid blinding the audience and for protection during transport
Energy-saving, durable and environmentally friendly
Quick color temperature and brightness setting via rotary dials
Variable PWM frequency (pulse-width modulation)
Strobe effect 0-20 Hz
Slim, rugged metal housing
Mains input and output for power linking up to 8 units
84 powerful LEDs 0,5 W SMD 2835 warm white (WW)
84 powerful LEDs 0,5 W SMD 2835 cold white (CW)
Variable color temperature 2800 K – 6500 K
Integrated Showprograms
Can be operated in 2; 4; 6 CH mode
The device is cooled by passive convection
Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Sound to light
Preprogrammed in Light Captain
Flicker-free projection
With a beam angle of 120°
Good color rendering index (CRI)
With Mounting bracket
4 digits 7-segment LED display for easy controlling
For application areas such as: Video- and Photographic; Stage

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	40 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Via IEC connector (M) mounting version power supply cord with safety plug
Power output:	1 x IEC connector (F) mounting version
Fuse:	T 1 A Fuse replaceable
Lamp type:	LED lamp
LED:	84 x 0,5 W SMD 2835 warm white (WW) 84 x 0,5 W SMD 2835 cold white (CW)
Color temperature:	2800K – 6500K adjustable
Flash rate:	0 – 20 Hz
DMX channels:	2; 4; 6
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection
Control:	Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Light Captain; Sound to light
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color rendering index (CRI) more than:	80 Ra
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digits 7-segment LED display
Dimensions:	Width: 28,1 cm Depth: 11,0 cm Height: 17,3 cm
Weight:	1,70 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
