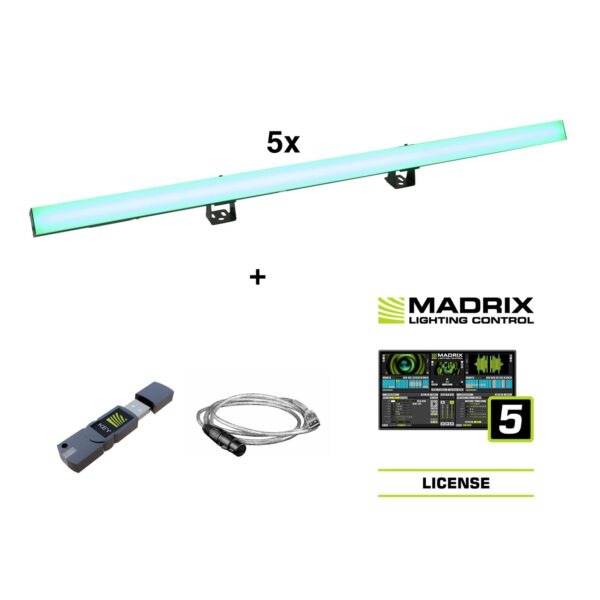

EUROLITE Set 5x LED PR-100/32 Pixel DMX Rail + Madrix Software

EUROLITE LED PR-100/32 Pixel DMX rail

DMX controlled pixel tube with RGB color mixing

• Tube with 96 high power RGB LEDs (3in1) for light effects
• Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
• Auto, music, master/slave and DMX mode
• Static colors, automatic color change, internal programs with variable speed, dimmer settings
• 12 built-in auto and music show programs
• Direct color selection for 17 preset colors
• 3, 5, 8, 48 or 96 DMX channels selectable
• DMX and power terminals intelligently designed for easy wiring
• Sound-control via built-in microphone with adjustable microphone sensitivity
• Addressing and setting via control panel with 4-digit LED display
• Metal housing with brackets for hanging as well as standing installation indoors
• Front cover: milky
• Swivel mounting bracket
• P-Con terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• Can be operated in 3; 5; 8; 48; 96 CH mode
• The device is cooled by passive convection
• Controlling by Stand-alone; DMX; Sound to light via Microphone

MADRIX Software 5 License start

MADRIX 5 licence start

• Includes 1x MADRIX 5 License start
• Requires a valid, empty, and metallic MADRIX KEY
• MADRIX 5 is a powerful, easy-to-use, and award-winning LED lighting control software
• Allows you to realize all kinds of different LED projects and lighting designs
• A normal PC/laptop can be used for professional LED control
• Activates output for up to 2x 512 DMX channels (1,024 DMX channels, or 2 DMX universes, for example) and up to 4,096 DVI voxels (a resolution of 64 x 64 pixels, for example)
• The license is activated via a USB dongle and can be used flexibly on different computers as needed
• Can be upgraded to higher licenses (up to MADRIX 5 License maximum)
• Online activation is initially required one time
• Only one MADRIX 5 License is possible per MADRIX KEY
• Only one MADRIX 5 KEY can be connected to the software
• Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers: Art-Net (I, II, 3, 4) (Unicast & Broadcast), DMX512, Philips Color Kinetics KiNET (V1 / V2), Philips Hue, SPI (via MADRIX NEBULA), Streaming ACN (sACN / E1.31) (Unicast & Multicast), ColourSmart Link, Colorlight A8, Colorlight 5A, Colorlight T9, DVI (VGA, HDMI, and more), Eurolite T9
• Even more options are available via converters or bridging tools
• Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
• The software generates unique effects, visuals, and animations live and in real time
• No additional content is required
• Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, and many more)
• Analyzes incoming audio signals for Sound2Light and Music2Light in real time (WDM or ASIO)
• TRI effect category for interactive performances
• New lighting scenes can easily be created in seconds
• Supports media server features also: Conveniently load and play back images, pictures, logos, and videos as well as live video signal capturing, screen capturing, scrolling text (ticker), and more
• Supports audio playback for videos
• Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
• Clean and simple user interface with 2 themes (dark and light)
• DJ-/VJ-like operation with 2 decks (A/B) and a crossfader
• 256 x 256 Storage Places to organize and store effects
• 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
• 2 DVI outputs
• Controls up to 4 color channels per pixel/voxel (1-channel, 2-channel, RGB, RGBW fixtures, for example)
• Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
• Supports Time Code (Art-Net, MIDI, SMPTE, and System Time)
• Input, interoperability, and remote control available through industry standards: Art-Net (I, II, 3, 4), Blackmagic Design (DeckLink, Intensity, and more), CITP, DMX512, GamePort, MA-Net 1 / MA-Net 2, MADRIX I/O, MIDI, NewTek NDI (Send & Receive), Remote HTTP (Web Server), Spout (Send & Receive), Streaming ACN (sACN / E1.31)
• Even more options are available via converters or bridging tools
• Accompanying Fixture Editor including large fixture library
• Comfortable patching features (incl. Matrix Generator, graphical Patch Editor with background image support, DVI Patch, CSV Fixture List Import, Fixture List Export, and more)
• Includes various other tools and features (Art-Net Time Code Sender, DMX Fader Tool, DMX Watcher, MIDI Watcher, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
• Supports various 3rd-party interfaces via aforementioned standards as well as MADRIX hardware interfaces (sold separately)
• Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0 (optimal system specifications will often be higher)
• Supported operating systems: Microsoft Windows 7 8 8.1 10 (64 bit only)
• Software and installation instructions available in English, German, Spanish, French, and Simplified Chinese
• All user manuals are provided digitally and available in English
• User manuals also available at help.madrix.com
• Made in Germany
• Free software demo mode and more information available at www.madrix.com
• Made in Germany

MADRIX USB ONE DMX512 USB interface

USB-DMX cable to send/receive DMX signals with MADRIX software

• MADRIX USB ONE is a reliable and high-quality DMX512 USB hardware interface for transmitting and receiving DMX data
• DMX512 devices are connected via a 5-pin, female NEUTRIK XLR plug
• To receive DMX512 signals, please use a 5-pin XLR male to 5-pin XLR male gender changer
• The MADRIX Software license is not included: An additional MADRIX KEY (i.e. a software license) is required for DMX output
• Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
• Multiple devices can be used together without problems
• MADRIX 5 minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free hard disk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
• MADRIX 5 supported operating systems: Microsoft Windows 7 8 8.1 10 (64 bit only)
• Installation instructions and software available in English, German, Spanish, French, and Simplified Chinese
• All user manuals are provided digitally and available in English
• User manuals also available at help.madrix.com
• Made in Germany
• Free software demo mode and more information available at www.madrix.com
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Controlling by DMX
• The device can be connected via USB to the PC in connection with MADRIX software
• Made in Germany

MADRIX KEY

MADRIX 5 KEY – without license

• Includes an empty MADRIX KEY
• Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
• Package contents: Beautiful, high-quality box including 1x MADRIX KEY, 1x USB flash drive incl. MADRIX 5 Software, 1x lanyard, and 1x quick start guide
• The device can be connected via USB to the PC
• Made in Germany
