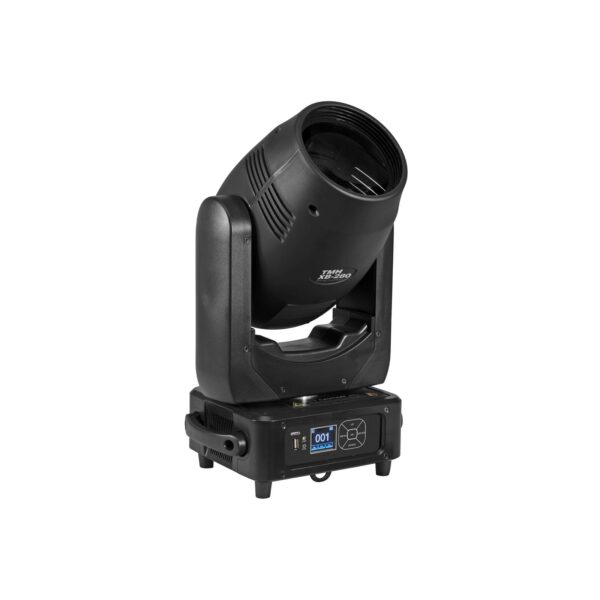

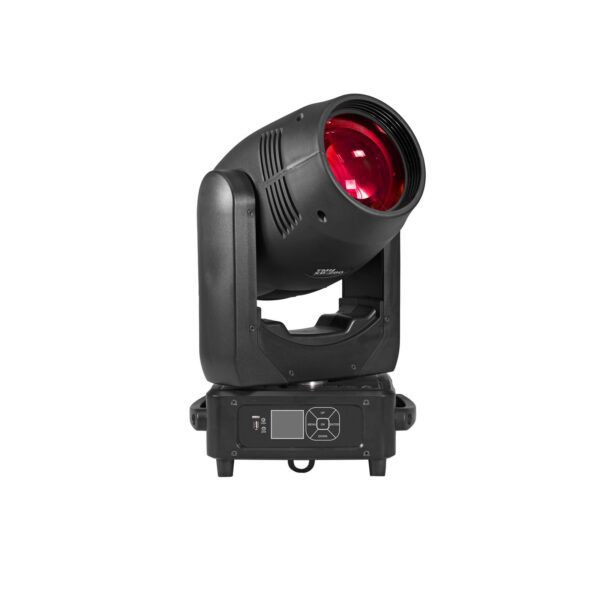

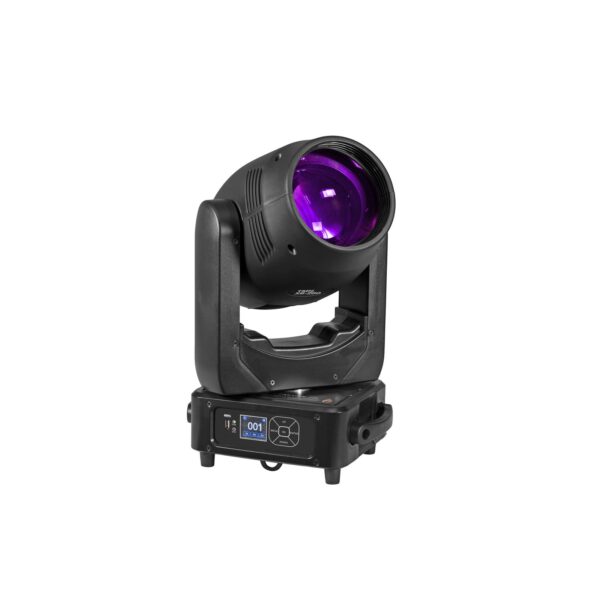

EUROLITE TMH XB-280 Moving-Head-Beam

Name: EUROLITE TMH XB-280 Moving-Head-Beam
SKU: 51786825
Price: 855.00 EUR
Availability: InStock

855,00 €

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

Disponibile

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 4026397677171 COD: 51786825 Categoria: Moving-Head-Beam

Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms

Equipped with an OSD 10 Reflector 280W discharge lamp
Very narrow beam angle of 2°
Positioning within 540° PAN and 270° TILT
Exact positioning via 16 bit PAN/TILT movement resolution
Rotating 8-and 24-facet prism, combinable for multi-facet effects
The prisms rotate in both directions and at different speeds
Frost-filter
Multi-color-filter
Strobe effect with adjustable speed
Random strobe effect
Dimmer
Motorized focus
Supports QuickDMX – the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Control board with graphic LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset, lamp on/off, operating hours
P-Con power input
Switch-mode power supply for operation between 100 and 240 volts
Color wheel 14 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
Can be operated in 16; 19 CH mode
The device is cooled by cooling fan
Controlling by DMX; Stand-alone; Master/slave function; QuickDMX via USB (optional); Sound to light via Microphone
Is in EUROLITE LED PC-Control 512 software already preprogrammed

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	385 W
IP classification:	IP20

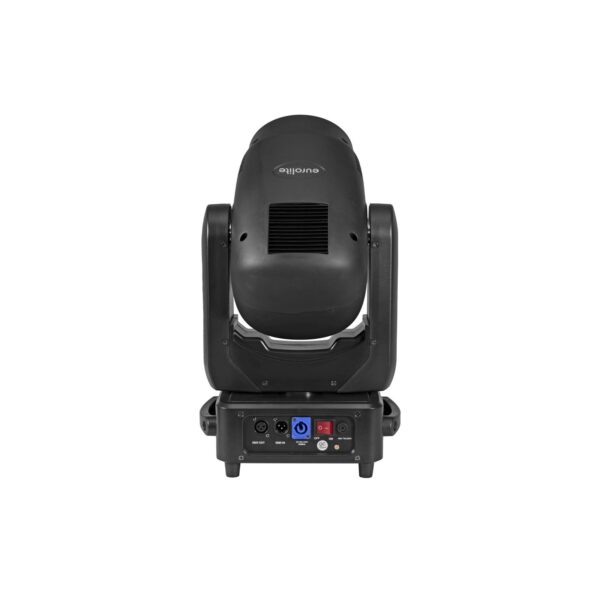

Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse:	T 5 A Fuse replaceable
Lamp type:	Discharge lamp
Max. TILT movement:	Exact positioning (16 bit resolution) 270°
Max. PAN movement:	Exact positioning (16 bit resolution) 540°
Flash rate:	1 – 18 Hz
Equipment:	Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism rotating
Color generation:	Color wheel 14 dichroic filters plus open
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	16; 19
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; Stand-alone; Master/slave function; QuickDMX via USB (optional); Sound to light via Microphone; EUROLITE LED PC-Control 512 software
Beam angle:	2°
Beam angle (1/2 peak):	2°
Housing color:	Black
Display type:	Multicolor LCD display
Dimension:	Width: 30.0 cm Depth: 20.5 cm Height: 50.5 cm
Weight:	14.80 kg
Noise classification:	Class 4 (loud noises)
