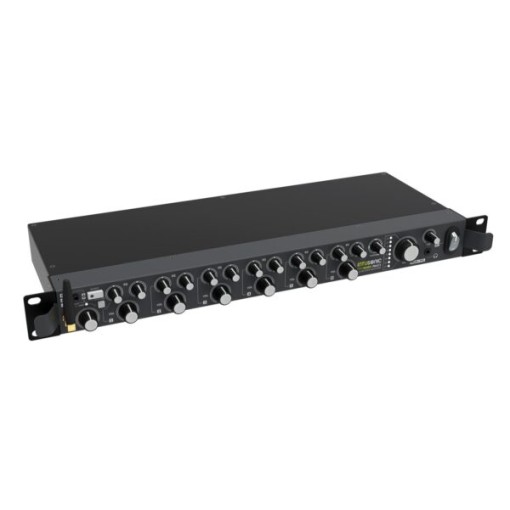

INTUSONIC PAA71+ Microphone Line Mixer
252,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Esaurito
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
The INTUWORX PAA71+ is a 7-channel mic/line mixer with an improved design. As the perfect center of any installed sound system, it offers 5 multi-purpose inputs which can either be fed with a balanced microphone signal or an unbalanced stereo line signal. One further balanced stereo line level input is specifically useful for sources at larger distance; the same input can be switched to receive its input signal from the 3.5mm TRS jack on the front, or the built-in LINKOUSTIC 5.2 wireless audio link. An additional dedicated microphone input with adjustable talkover (priority) provides control over announcements. Every input — with the exception of the balanced stereo input — is equipped with rear-panel gain control and a front-panel 2-band equalizer. The external shutdown and emergency signal input connections allow integration with central announcement and evacuation systems where required. The adjustable monitor output can either feed a stereo headphone or a balanced mono output.
Microphone line mixer, 7 channels
- 5 stereo inputs mic/line, switchable
- 1 stereo input AUX/Wireless Audio Link, switchable
- 1 additional microphone input on rear-side with adjustable talkover function
- Adjustable monitor output
- External shutdown and emergency signal connections
- Each microphone input with optional 12 V phantom power
- Control via LINKOUSTIC 4.2 Wireless Audio Link
- (19") 48.3 cm rack installation
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x mixer
- 1 x power cord
- 11 x screw plug-in terminal
- 1 x plug (male)
- 4 x foot
- 1 x antenna
- 1 x user manual
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | Max. 12 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 0.5 A fuse replaceable |
| Frequency range: | 20 – 20000 Hz |
| S/N ratio: | >82 dB line |
| THD: | <0.05 % at 1 kHz |
| Phantom power: | Or 12 V DC |
| Control: | LINKOUSTIC 4.2 Wireless Audio Link |
| Bluetooth device name: | LINKOUSTIC |
| Carrier frequency: | 2.4 GHz |
| Housing color: | Black |
| Control elements: | Power switch, source selector, level control per channel, Master control, stereo/mono switch; regular talkover |
| Status LED: | Power, pairing, level meter |
| Connections: | Input: line via 2 x 6.3-mm-jack (bal.) Input: AUX via 1 x 3.5 mm jack (stereo) mounting version Input: line via 5 x stereo RCA Input: microphone via 6 x screw plug-in terminal Input: Emergency via 1 x screw plug-in terminal Input: mute function via 1 x screw plug-in terminal Output: master via 2 x screw plug-in terminal Output: rec. via 1 x stereo RCA Output: headphones via 1 x 3.5 mm jack (stereo) mounting version Output: zones via 1 x screw plug-in terminal |
| Channels: | Input chanel: 1 x stereo with Line-Line-Bluetooth switch, channel control via rotary dial, source selector Input chanel: 5 x mono + stereo with mic-line switch via RCA or screw plug-in terminal, channel control via rotary dial, 2-band tone control EQ, gain control Input chanel: 1 x mono via screw plug-in terminal, channel control via rotary dial, 2-band tone control EQ, gain control, regular talkover Master output: 1 x mono + stereo via screw plug-in terminal, channel control via rotary dial Rec. output: 1 x stereo via RCA Headphones output: 1 x mono + stereo via jack or screw plug-in terminal, channel control via rotary dial |
| Housing design: | (19") 48.3 cm rack installation |
| Dimensions: | Width: 48.3 cm Depth: 19 cm Height: 4.4 cm |
| Weight: | 2.70 kg |
| Peso | 3,25 kg |
|---|---|
| Dimensioni | 0,0955 × 0,5400 × 0,3300 cm |
| Codice Ean | 5060502923615 |
