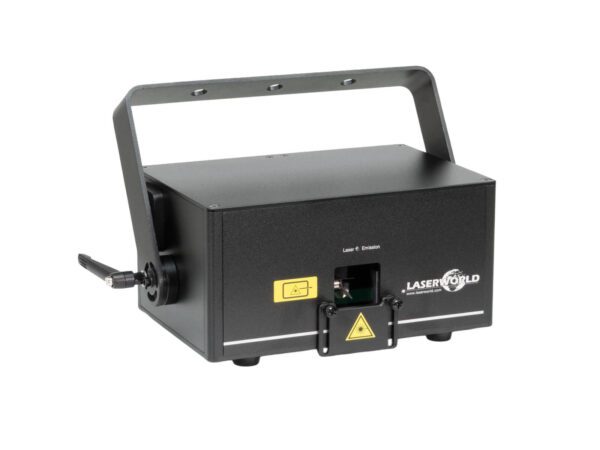

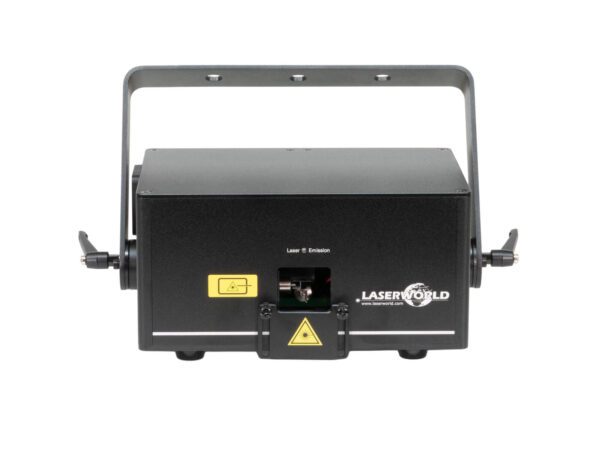

Full color mixing laser with analog color modulation
- Control via DMX; ILDA; sound to light; master/slave function; stand-alone
- 4 digit 7-segment LED display
- Integrated show programs
- The device is cooled by cooling fan

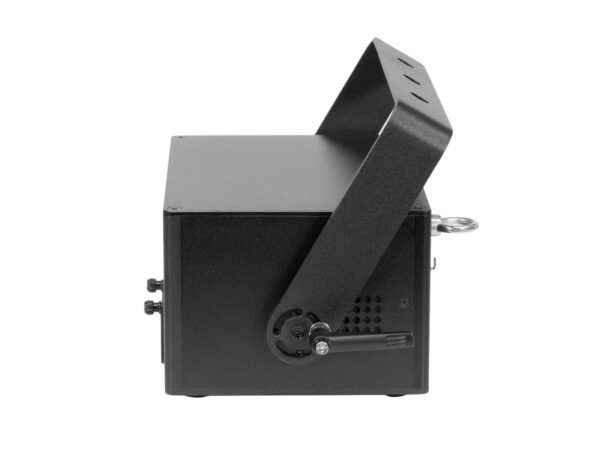

- With mounting bracket
Scope of delivery
- 1 x laser
- 1 x user manual
- 1 x power cord
- 1 x Interlock
- 2 x key
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

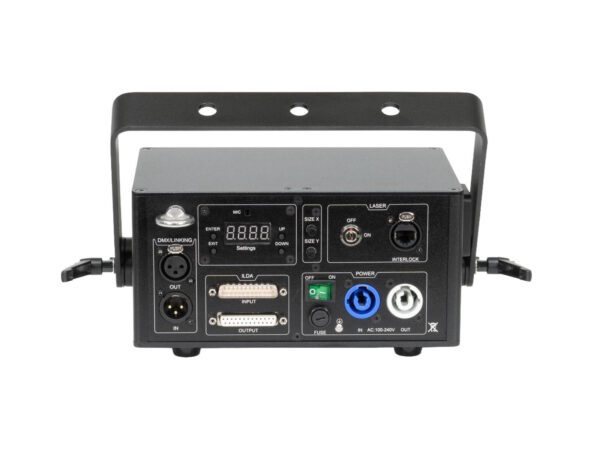

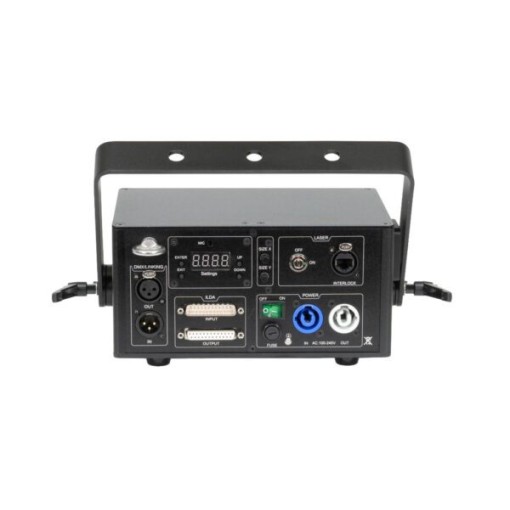

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 1 x P-Con (gray), mounting version |
| Laser class: | 4 |
| Laser color: | R/G/B |
| Laser module: | Red (R) 500 mW 638nm Green (G) 700 mW 520nm Blue (B) 1800 mW 450nm |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; ILDA; sound to light; master/slave function; stand-alone |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 1 x 4 digit 7-segment LED display |
| Dimensions: | Length: 20 cm Width: 16.5 cm Height: 14.1 cm |
| Weight: | 2.65 kg |
