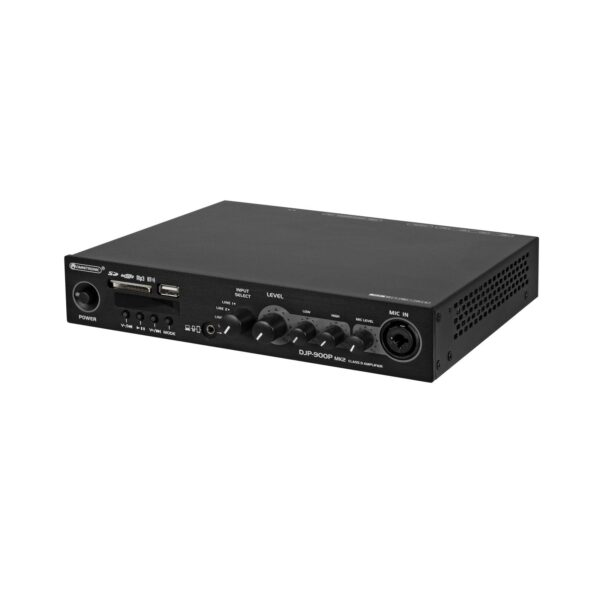

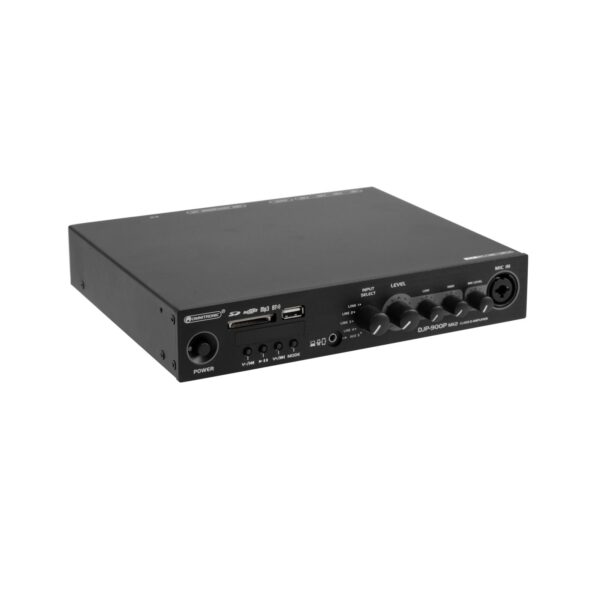

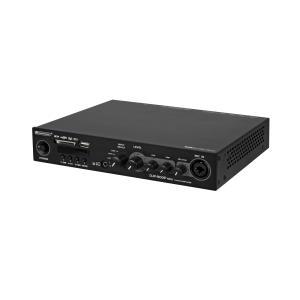

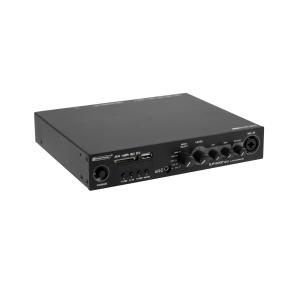

OMNITRONIC DJP-900P MK2 Class D Amplifier
285,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
The compact stereo mixing amplifier DJP-900P with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 460 watts at 4 ohms and makes mixing of a stereo line source and a microphone easy. For double output power it is possible to switch to bridge mode. Then 900 watts are provided.Low-impedance speakers and PA speakers with 100 V audio transformers can be connected. Stream your music wirelessly from your smartphone, tablet or computer via Bluetooth to the built-in audio player, which also offers slots for USB storage devices and SD(HC) memory cards. Extensive protective circuits provide protection e.g. against short circuit, overload and overheating.
Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms
- Built-in audio player with Bluetooth receiver
- Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Speaker switch-on delay and auto limiters
- 1 mono microphone input with volume control on the front panel
- Audio source selector
- Outputs for low-impedance and 100 V speakers
- Extensive protective circuits
- Rugged steel chassis with aluminum front panel
- The device is cooled by cooling fan
- Desktop console housing
- (19″) 48.3 cm rack installation (provided) 1 U
- For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels
Audio player
- Controlling by Bluetooth
- Bluetooth: Use a operating range up to 10m
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 140 W 1/8 power |
| Output power: | 2 x 460 W RMS (4 ohms) 2 x 240 W RMS (8 ohms) Max. 260 W bridged (100 V) Max. 900 W bridged (8 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 – 20,000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,05 % at 1 kHz |
| Cooling: | Cooling fan |
| Impedance: | 4 ohms; 8 ohms; 16 ohms; Public address systems 100V |
| Impedance: | Input 20 kOhm , bal. Input 10 kOhm , bal. |
| Circuitry: | Class D |
| Slew rate: | >14 V/µs |
| Damping factor: | >300 |

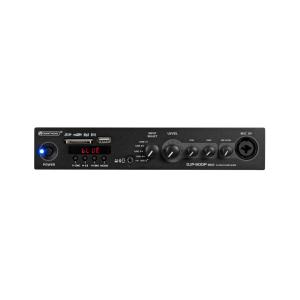

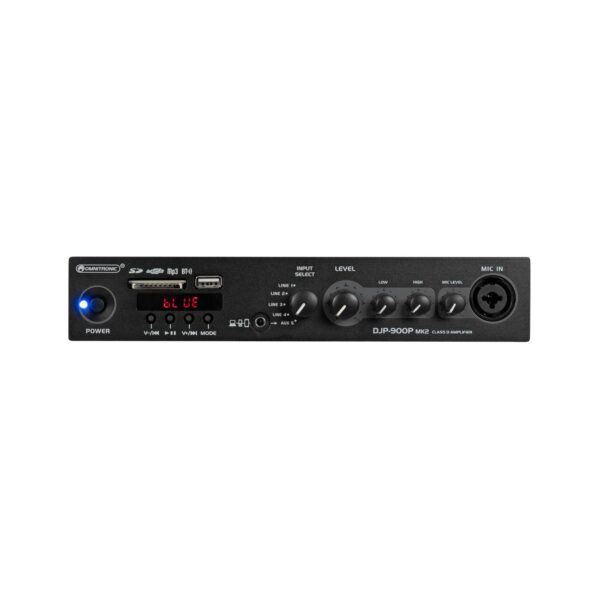

| Control elements: | Power switch, source selector, EQ controls, level control, mode switch (stereo / bridged/100V) |
| Controls: | Softstart; short-circuit; overheat; overload; DC voltage; VHF |
| Equalizer: | Master: 1 x 2-band tone control stereo |
| Status LED: | Power |

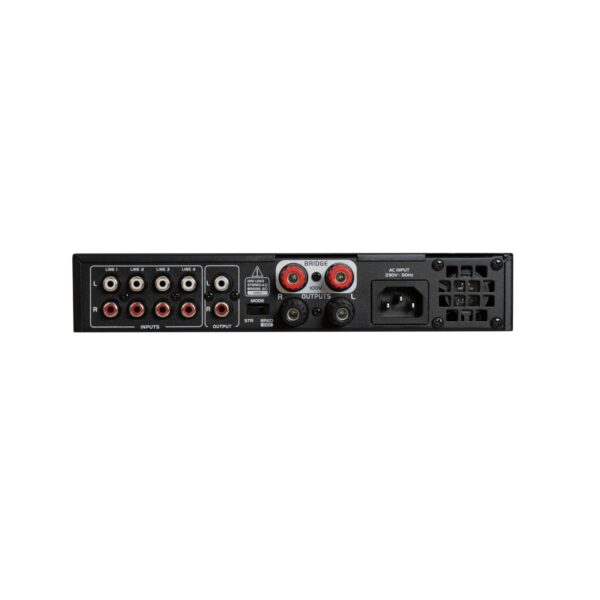

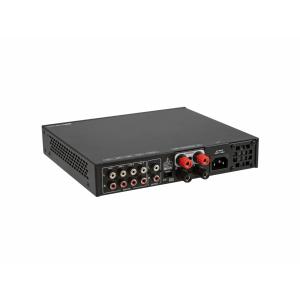

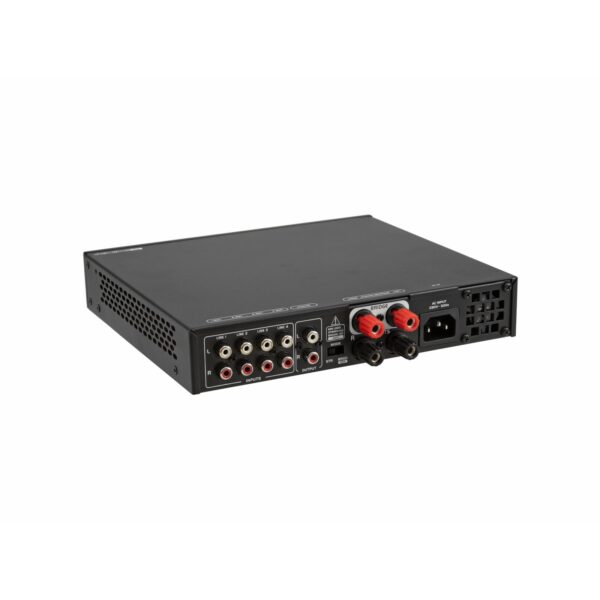

| Connections: | Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 4 x stereo RCA Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: speaker via 1 x screw terminal Output: rec. via 1 x stereo RCA |
| Input sensitivity: | 1 V |
| Material: | Metal |
| Housing design: | Desktop console housing (19″) 48.3 cm rack installation (provided) 1 U |
| Dimensions: | Width: 24,1 cm Depth: 25,6 cm Height: 4,45 cm |
| Weight: | 2,54 kg |
| Audio player | |
| Control: | Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Format: | MP3, WMA; WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 16/32) |
| Range: | 10 m Bluetooth |
| Peso | 2,95 kg |
|---|---|
| Dimensioni | 0,0800 × 0,3350 × 0,2900 cm |
| Codice Ean | 4026397702620 |
