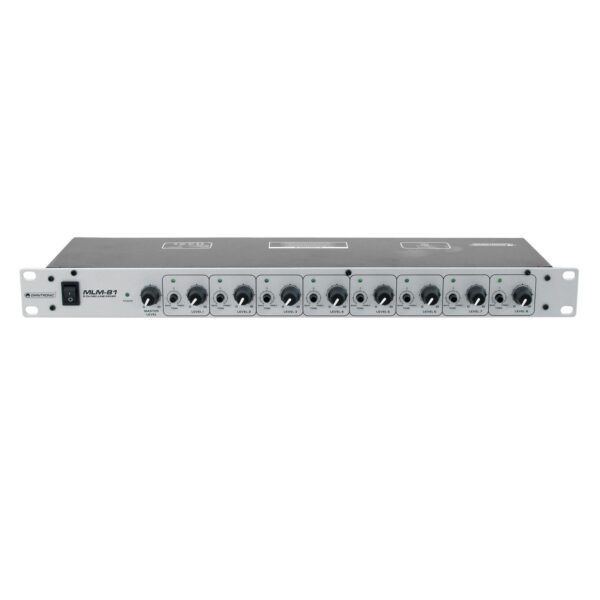

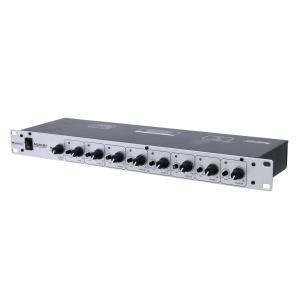

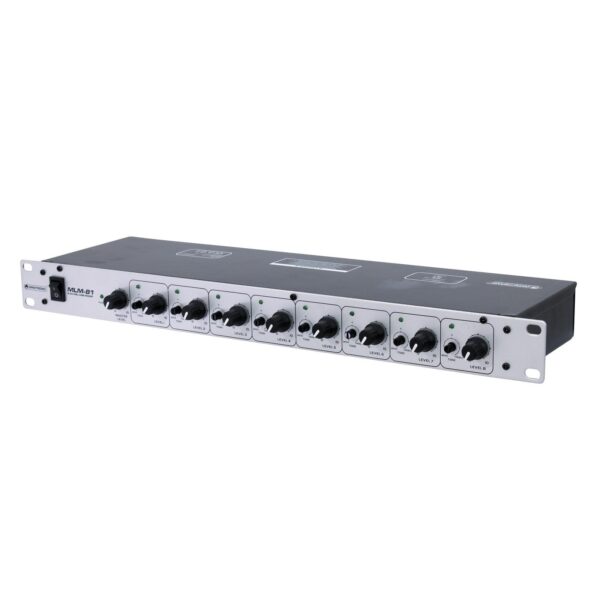

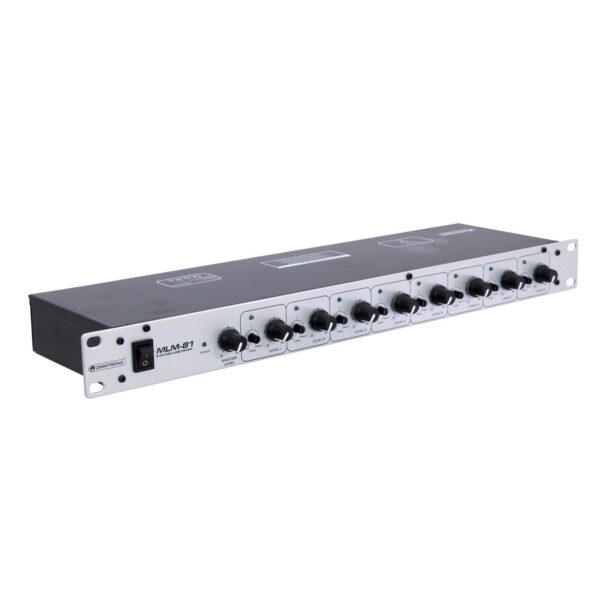

OMNITRONIC MLM-81 Microphone/Line Mixer
169,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
Mix it!
To say something, you need to be heard. If you are the only one who is talking, the prospect of attention is quite good. But if there are several persons joining a panel discussion for example, it might happen, that your own contribution will be overheard as others have a stronger voice at their disposal. With our OMNITRONIC MLM-81 this competitive disadvantage belongs to history. Because our device mixes up to 8 mono input signals to one output. Via individual level and tone controls, the different sources can be controlled and perfectly dovetailed. The MLM-81 is not only suited for panel discussions or symposiums but for press conferences as well and – due to its compact design – occupies almost no space.
To say something, you need to be heard. If you are the only one who is talking, the prospect of attention is quite good. But if there are several persons joining a panel discussion for example, it might happen, that your own contribution will be overheard as others have a stronger voice at their disposal. With our OMNITRONIC MLM-81 this competitive disadvantage belongs to history. Because our device mixes up to 8 mono input signals to one output. Via individual level and tone controls, the different sources can be controlled and perfectly dovetailed. The MLM-81 is not only suited for panel discussions or symposiums but for press conferences as well and – due to its compact design – occupies almost no space.
Microphone line mixer, 8 channels
- For mixing up to 8 mono input signals to 1 mono output
- 8 mic/line channels with separate level and tone controls and signal LEDs

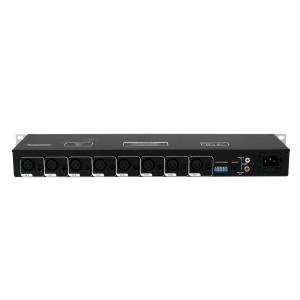

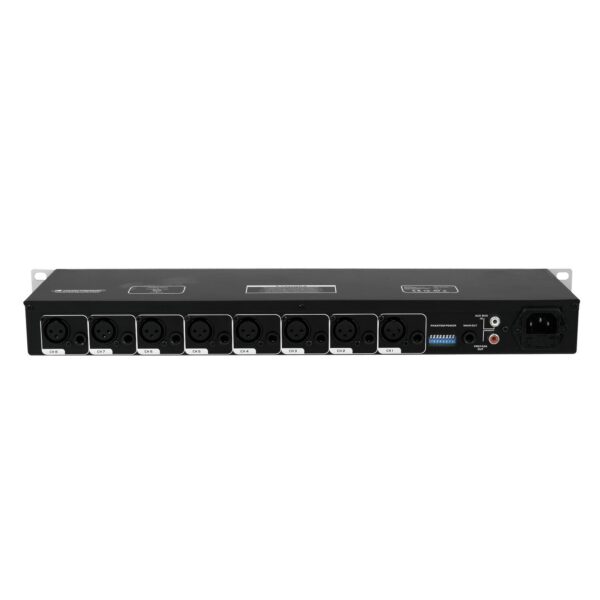

- Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
- Each mic input with optional 12 V phantom power via DIP switches
- Master level control; master out via balanced 6.3 mm jack (1/4")
- Feed-through output (independent of master control) for connecting a further MLM-81
- Each 6.3 mm line input can be separately converted to a line output via internal jumpers
- Rack installation, 1 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 10 W |
| Input impedance: | 600 ohms (Mic), 18 kohms (Line), 10 kohms (Aux Bus) |
| Max. input level: | -23 dBV (Mic), +22 dBV (Line) |
| Phantom power: | 12 V |
| Max. output level: | +17 dBV |
| Output impedance: | 51 ohms |
| Max. gain: | 69 dB (Mic), 26 dB (Line) |
| Distortion: | <0.003 % |
| S/N ratio: | 106 dB |
| Dimensions (W x D x H): | 482 x 152 x 44 mm |
| Weight: | 2.3 kg |
| Peso | 27,500 kg |
|---|---|
| Dimensioni | 0,0900 × 0,5400 × 0,2650 cm |
| Codice Ean | 4026397295085 |
