OMNITRONIC UHF-304 4-Channel Wireless Mic System 823-832/863-865MHz
323,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |

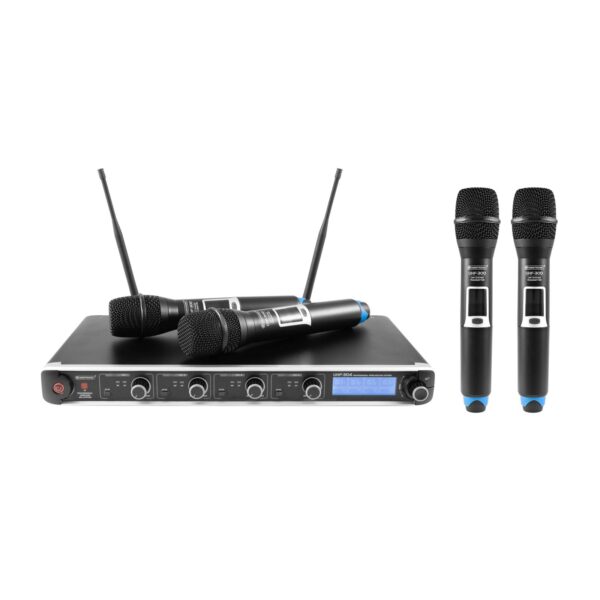

4-channel UHF PLL microphone system
- 4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
- 93 preset channels in 10 channel groups
- Easy and error-free synchronization between receiver and transmitters via infrared signal
- LCDs for group, frequency and channel
- LEDs for carrier and audio signal
- 4 separate channels with volume controls
- Balanced XLR output per channel
- Unbalanced 6.3 mm jack for mixed signal output
- Jack cable included
- Removable antennas (BNC connection)
- Incl. mounting brackets for 483 mm rack installation
- 4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
- Matching pocket transmitter can be ordered separately
- License-free and approved in large parts of the EU (please check on a country-by-country basis)

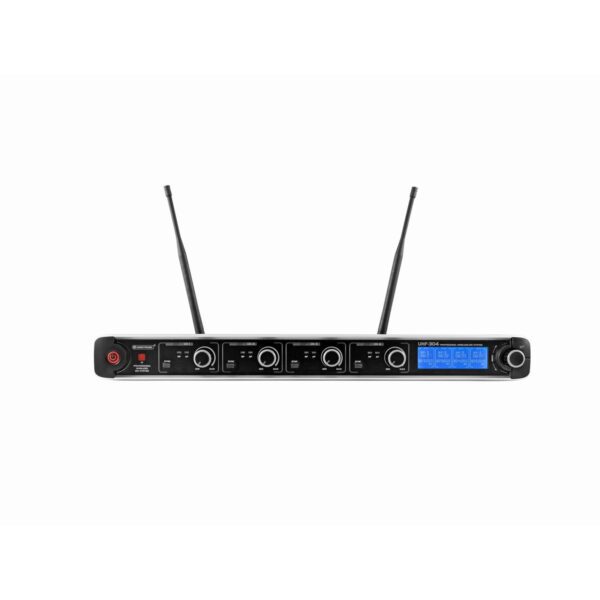

Receiver
- Housing design: (19″) 48.3 cm rack installation possible 1 U

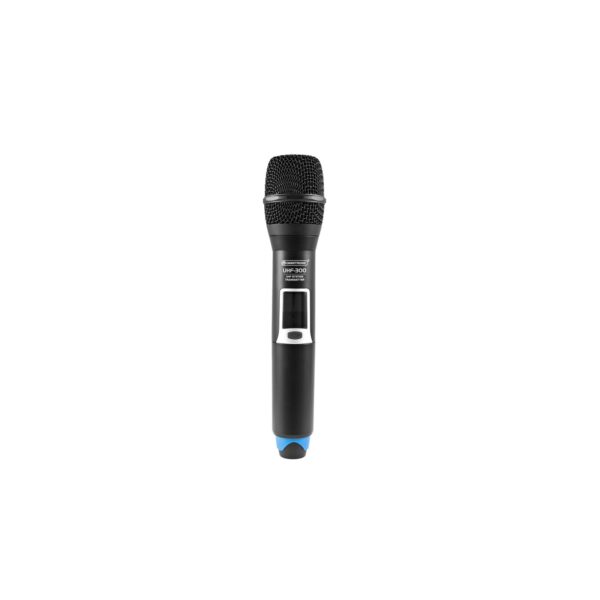

Microphone
- Polar pattern: Cardioid
- Battery: 2 x Mignon (AA) (not included)
| Type: | Wireless set |
| Frequency band: | UHF 823 – 832 MHz; UHF 863 – 865 MHz |
| Frequency range: | 50 – 18,000 Hz |
| S/N ratio: | >80 dB |
| Number of channels: | 4 |
| Range: | 60 m |
| Weight: | 3,00 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 500 mA |
| Power consumption: | 6 W |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Material: | Metal |
| Housing design: | (19″) 48.3 cm rack installation possible 1 U |
| Width: | 41 cm |
| Height: | 4,7 cm |
| Depth: | 23,5 cm |
| Microphone | |
| Type: | Transmitter |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Capsule type: | Dynamic |
| Material: | Plastic |
| Length: | 25 cm |
| Diameter: | 5,1 cm |
| Weight: | 0,23 kg |
| System: | Non-diversity, 4 channels |
| Receiving frequencies: | 93 |
| RF power output: | 10 mW |
| Modulation method: | FM |
| Frequency stability: | 10 ppm |
| Sensitivity: | 6 dBµV |
| T.H.D.: | <0.5 % at 1 kHz |

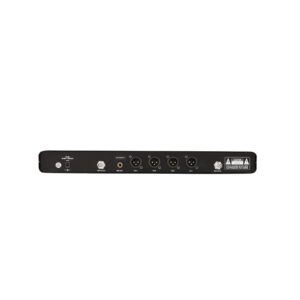

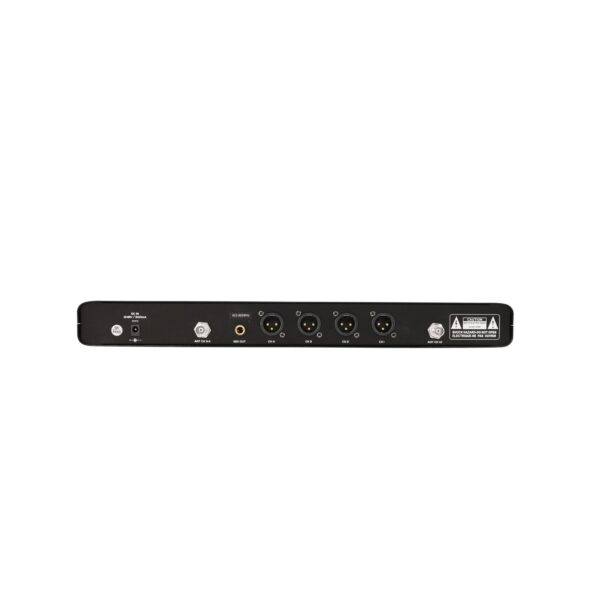

| Audio outputs: | |
| Mic: | 4 x XLR, bal. |
| Mix: | 6.3 mm jack, unbal. |
| Peso | 3,8 kg |
|---|---|
| Dimensioni | 0,1200 × 0,5300 × 0,3000 cm |
| Codice Ean | 4026397654523 |
