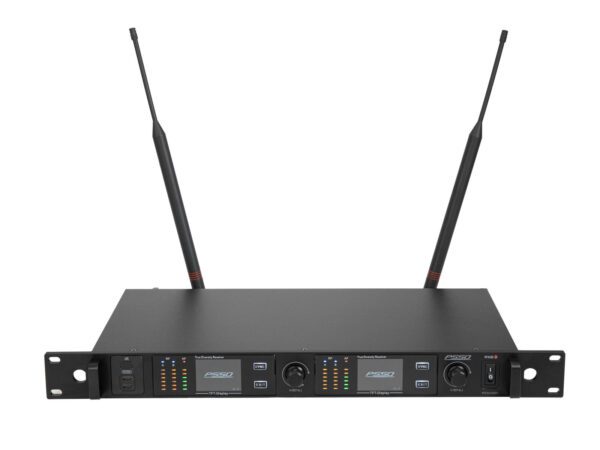

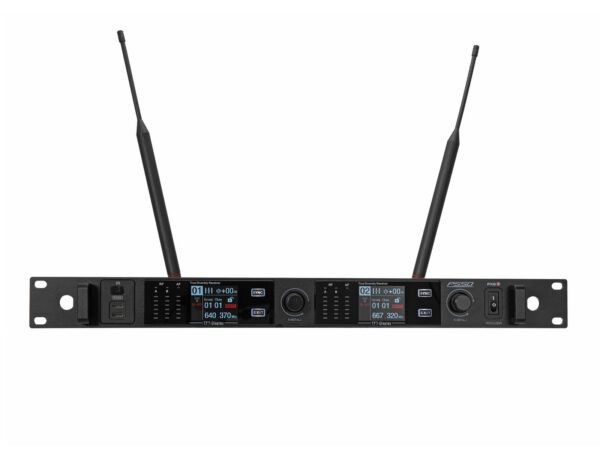

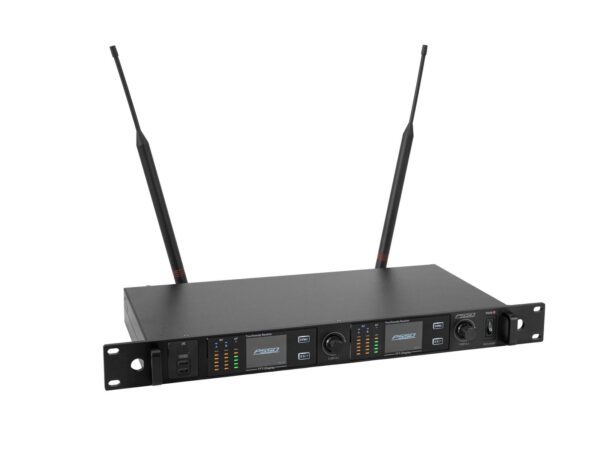

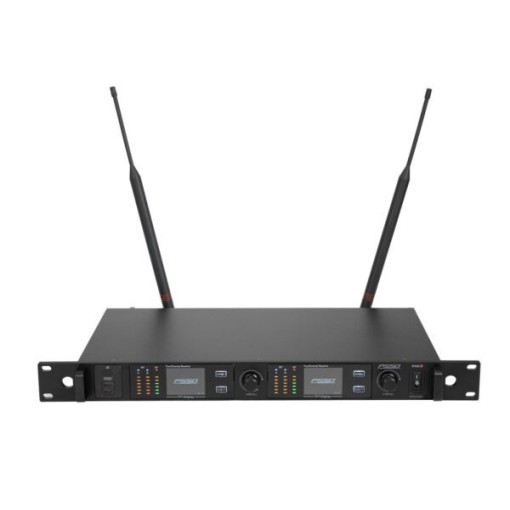

PSSO PXS TWO 2-channel True Diversity Receiver 640-690 MHz
475,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Esaurito
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
License-free true diversity wireless receiver with auto scan, 3-band EQ & TFT color displays
- Professional multifrequency wireless receiver with true diversity reception for stage use
- High-grade components and intelligent features ensure best performance and high reliability
- Ideal for large multi-channel systems
- Automatic frequency setup
- Spectrum analysis to identify interference frequencies
- Multifunctional jogdial for menu settings
- 2 detachable BNC antennas allow for use with external antenna divider
- (19") 48.3 cm rack installation possible 1 U
- Operating range up to 200m
- Up to 28 transmitters can be operated in parallel without interference
- Multicolor TFT display
- Charge status indicator

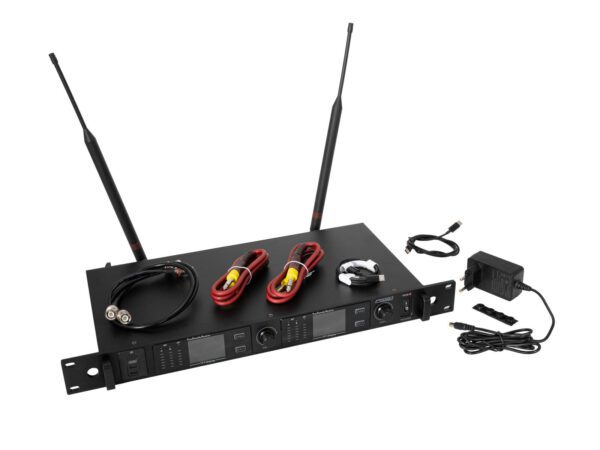

Scope of delivery
- 1 x receiver
- 2 x antenna
- 1 x external mains adapter
- 4 x foot
- 2 x USB cable
- 2 x jack cable
- 2 x BNC cable
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1500 mA |
| Power consumption: | 6 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 30 – 19000 Hz |
| S/N ratio: | >112 dB |
| THD: | <0.5 % at 1 kHz |
| Range: | Range up to 200m |
| Frequency band: | UHF 640 – 690 MHz |
| Diversity: | True diversity |
| Frequency stability: | ± 0.001 % |
| Parallel mode: | Max. 28 transmitter |
| Frequency selection: | Frequencies automatically scannable |
| Housing color: | Black |
| Display type: | Multicolor TFT display |
| Display: | Frequency , goup , channel , charge status indicator; RF signal level , AF audio level , antenna A/B , Mute |
| Control elements: | Power switch, encoder, exit, menu, sync button |

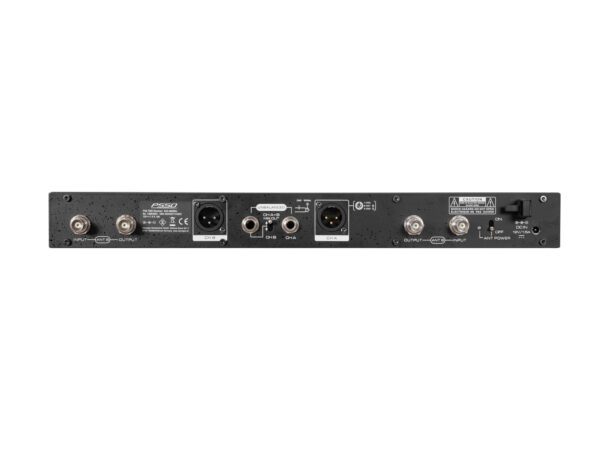

| Connections: | Input: antenna via 2 x BNC (F) 11.54 V Output: antenna via 2 x BNC (F) Output: microphone via 2 x 6.3 mm plug (unbal.) Output: microphone via 2 x 3-pin XLR (M) mounting version Output: USB C (W) mounting version 5 V |
| Equalizer: | 3-band tone control |
| USB port: | 2 x type C |
| Material: | Metal |
| Mounting dimensions: | 48.2 cm x 26 cm x 4.55 cm |
| Housing design: | (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 48.2 cm Depth: 27.4 cm Height: 4.55 cm |
| Weight: | 2.88 kg |
| USB cable | |
| Dimensions: | Length: 100 cm |
| Jack cable | |
| Dimensions: | Length: 100 cm |
| BNC cable | |
| Dimensions: | Length: 53 cm |
| Peso | 3,5 kg |
|---|---|
| Dimensioni | 0,0700 × 0,5350 × 0,4100 cm |
| Codice Ean | 4026397744002 |
