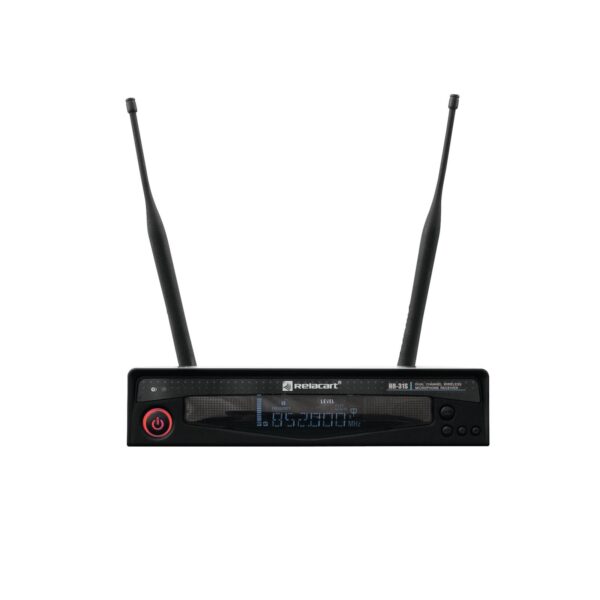

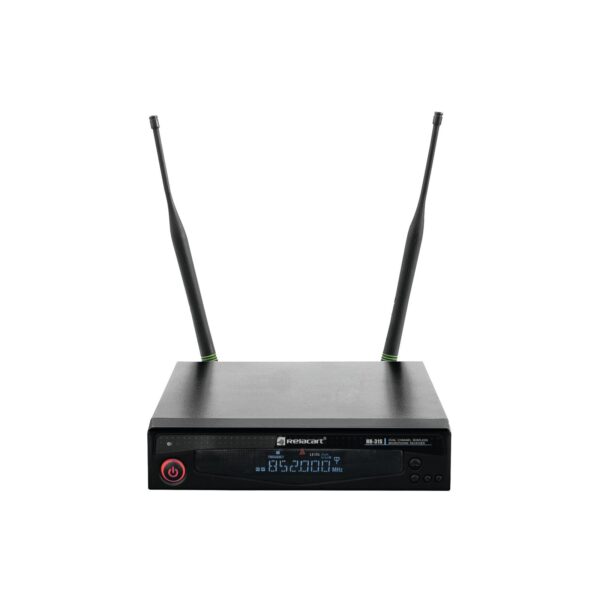

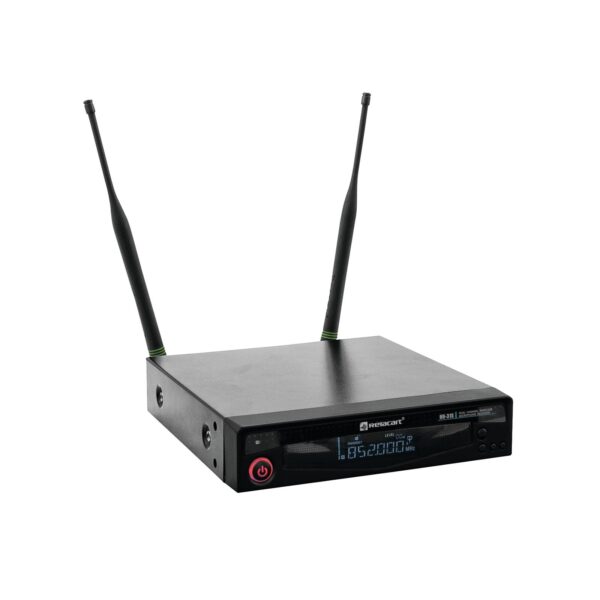

RELACART HR-31S 1-Channel True Diversity Receiver

True diversity wireless receiver with PC control

• Multifrequency wireless receiver with high-quality true diversity reception
• Real-time monitoring and data management using RWW PC software
• 2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Parallel operation of up to 12 systems is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Operation range with line of sight approx. 80 meters
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Up to 32 units can be linked with network cables
• Lock function avoids accidental changing of settings

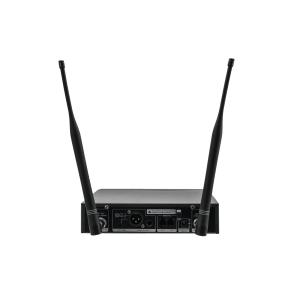

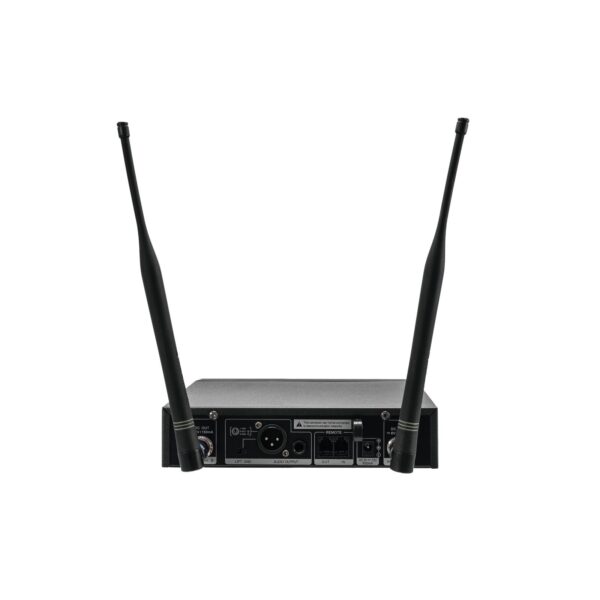

• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (HR-31S), pocket transmitter (T-30)
• Delivery includes practical transport bag with jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
