RELACART HR-31S 1-Channel True Diversity System
494,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |

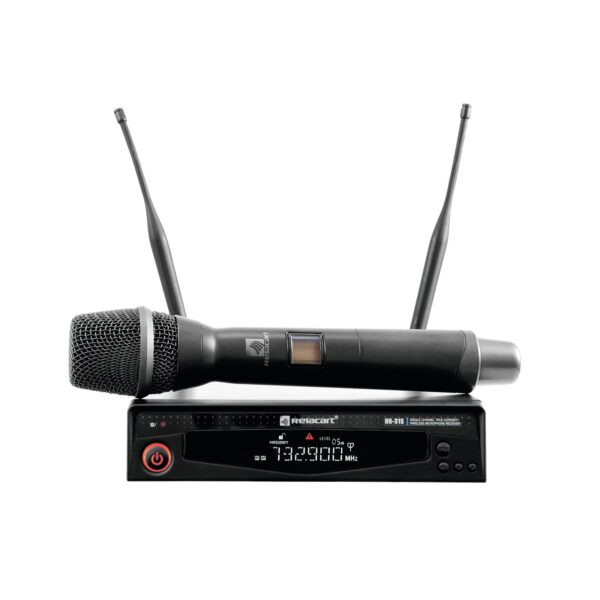

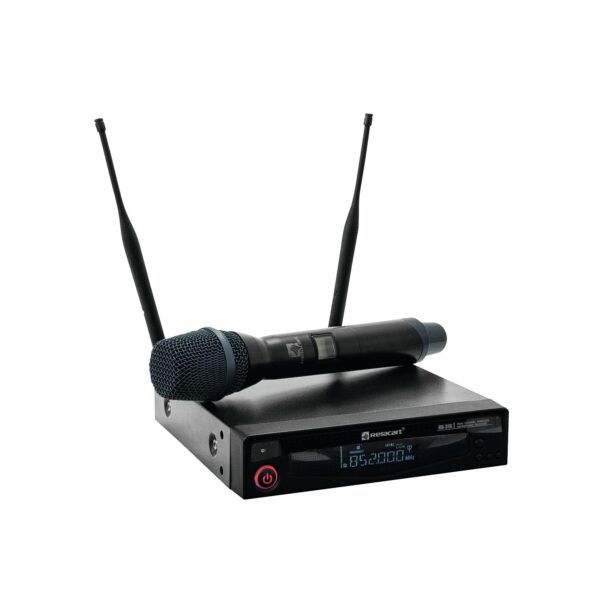

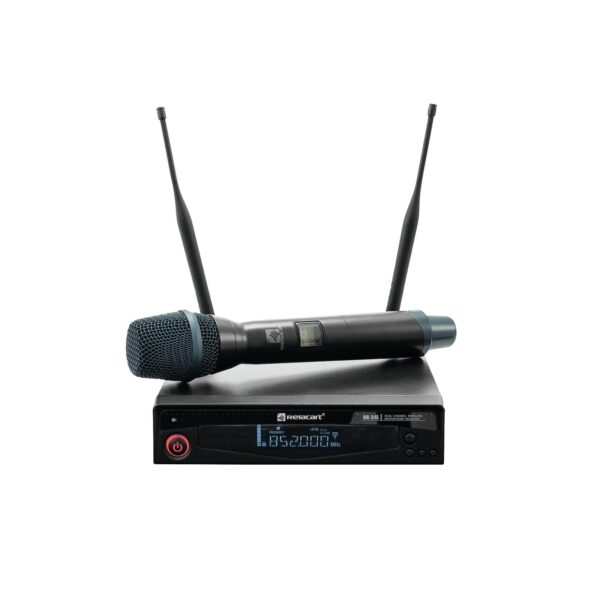

True diversity wireless microphone system with PC control
- Multifrequency wireless receiver with high-quality true diversity reception
- Dynamic hand-held microphone with ergonomic aluminum alloy housing and OLED display, applicable for touring
- Real-time monitoring and data management using RWW PC software
- 2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
- Parallel operation of up to 12 systems is possible without any interference
- Pilot tone technology (PLL) and noise squelch for interference-free operation
- Operation range with line of sight approx. 80 meters
- Long battery life for up to 15 hours continuous operation
- Automatic frequency scan (AFS) finds interface-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
- Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
- Several units can be linked with network cables
- Lock function avoids accidental changing of settings
- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider

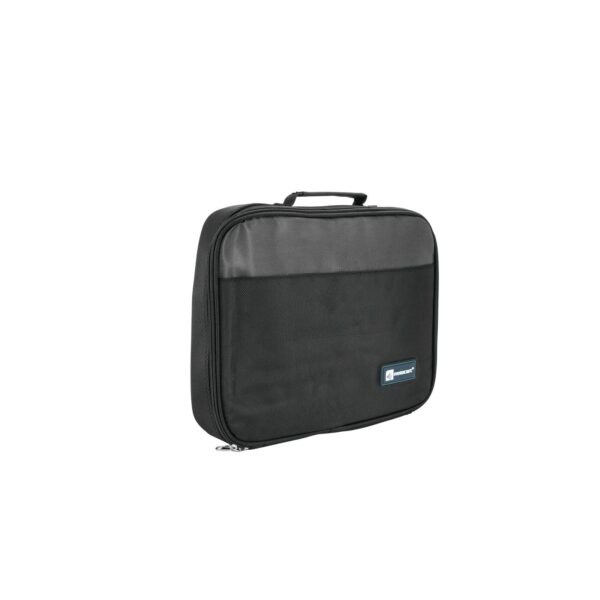

- Delivery includes practical transport bag with jack cable and power unit
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- Microphone directly compatible with Shures SM58 capsule
- Receiver and microphone also available separately
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
| System: | True diversity, 1 channel |
| Carrier frequencies: | UHF 731-790 MHz and 823-832 MHz, |
| adjustable in steps of 25 kHz | |
| Frequency groups: | 10, with up to 25 preset frequencies each + |
| 8, with up to 7 preset frequencies each | |
| Switching bandwidth: | 68 MHz |
| Deviation: | ±45 kHz |
| Frequency stability: | ±0.0005 % |
| T.H.D.: | <0.6 % at 1 kHz |
| S/N ratio: | >108 dB |
| Modulation method: | FM |
| Coverage: | 80 m (with line-of-sight) |
| Frequency range: | 45-18000 Hz (±1 dB) |
| Sensitivity: | 5 dBµV (S/N >60 dB at 25 deviation) |
| Audio output: | XLR, bal. |
| 6.3 mm jack, unbal. | |
| Antenna inputs: | 2 x BNC (supply 8 V/150 mA) |
| Communication: | serial RS-485 interface (RJ-14 In/Out) |
| for remote control with the PC software RWW | |
| Power supply: | 12 V DC, 500 mA |
| via supplied power unit connected to 100-240 V AC, 50/60 Hz | |
| Dimensions: | 224 x 43 x 206 mm |
| Rack installation with 1 U | |
| with supplied mounting brackets | |
| Weight: | 1.1 kg |
| Microphone: | |
| Type: | Dynamic |
| Directivity pattern: | Cardioid |
| Power supply: | 2 x 1.5 V battery (type AA) |
| Current consumption: | approx. 90 mA |
| Battery life: | approx. 15 hours |
| Dimensions: | 51 x 256 mm |
| Weight: | 215 g |
| Peso | 24,000 kg |
|---|---|
| Dimensioni | 0,0650 × 0,3900 × 0,3000 cm |
| Codice Ean | 4026397525762 |
