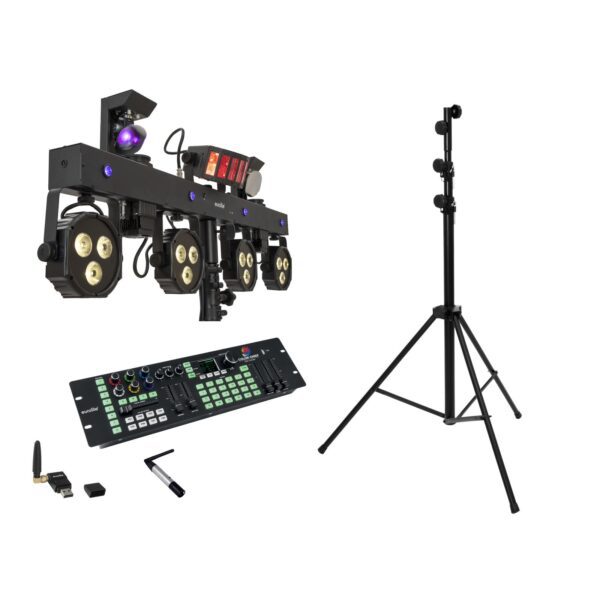

EUROLITE Set LED KLS Scan Next FX Compact Light Set + Controller + Steel stand

EUROLITE LED KLS Scan Next FX Compact Light Set

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

• DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
• Ultra-light ideally suited for mobile use
• Crossbar with integrated DMX control unit and TV spigot for stand installation
• Swivel mounting brackets for truss mounting
• Comes pre-assembled with practical transport bag
• Convenient control via included IR remote control or optional wireless foot switch
• Sound-control via built-in microphone with sensitivity control
• Several diverse DMX modes for various consoles and requirements
• LED derby and LED spots individually tiltable and controllable
• Spots with 15° beam angle
• Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
• Brand-new software design with smart programs
• 20 built-in auto and music show programs that include all 4 effect units
• Addressing and setting via control panel with 4-digit OLED display
• Supports QuickDMX – the wireless DMX system by Eurolite
• Built-in phantom-powered USB port for QuickDMX receivers (accessories)
• When fog is used, this effect becomes especially attractive
• P-Con terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
• The device is cooled by cooling fan
• Controlling by DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
• For application areas such as: Wedding/gala; Lender; Small lender

spotlight

• LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)

light effect

• LED: Multi beam effect each 1 x 3 W RGB

moving light

• LED: Scanner each 1 x 15 W CW

bar

• LED: 4 x high-power 1 W UV

EUROLITE QuickDMX USB Wireless Transmitter/Receiver

Wireless miniature DMX transceiver 2.4 GHz, phantom powered

• User-friendly USB plug with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• 2.4 GHz ISM band – license-free worldwide
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Controlling by DMX; QuickDMX built-in

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide
• Can transmit up to 512 DMX channels
• Controlling by QuickDMX built-in
• Use a operating range up to 400m

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for data storage of lighting programs
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Programmable 24 sequencens
• Can transmit up to 240 DMX channels
• Controlling by DMX; Sound to light via RCA (f) mounting version; Sound to light via Microphone
• (19″) 48.3 cm rack installation 3 U

EUROLITE STV-60-WOT EU Steel Stand black

Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm

• Stable lighting stand (without T bar)
• For mobile use
• Steel/magnesium version
• Ø 29 mm attachment fits standard TV pins
• Carry bag available as accessory
• Available in black and white
• Made in Europe

Weight:	20,86 kg
EUROLITE LED KLS Scan Next FX Compact Light Set
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	115 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A Fuse replaceable
Lamp type:	LED lamp
Equipment:	Color wheel; gobo wheel with static gobos
DMX channels:	3; 7; 13; 14; 15; 18; 19; 30; 32; 39
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
Beam angle:	15°
Beam angle (1/2 peak):	Spot 15°
Beam angle (1/10 peak):	Spot 28°
Illuminance in Lux (lx):	R red 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx G green 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx B blue 1m: 395 lx, 3m: 47 lx, 6m: 13 lx WW 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx
Housing color:	Black
Attachment system:	TV spigot Ø 28mm
Display type:	OLED display
Dimensions:	Width: 1,1 m Depth: 15,5 cm Height: 43 cm
Weight:	12,80 kg
Spotlight
LED:	Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)
Light effect
LED:	Multi beam effect each 1 x 3 W RGB
Moving light
LED:	Scanner each 1 x 15 W CW
Bar
LED:	4 x high-power 1 W UV
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese
Legal specifications
Ecodesign regulation:	yes
Special product:	Not designed for household room illumination
intended use:	show effect lighting
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Power supply:	5 V DC
IP classification:	IP20
Power connection:	Mains input USB A (M) connectable version
DMX channels:	Input 512 Output 512
DMX output:	1 x USB, type A
Control:	DMX; QuickDMX built-in
Carrier frequency:	2,4 GHz
Modulation:	GFSK
Parallel mode:	Max. 6 transmitter
Color:	Black
Dimensions:	Width: 8,6 cm Depth: 4 cm Height: 1,1 cm
Weight:	10 g
EUROLITE QuickDMX Wireless Transmitter
Power supply:	100-240 V AC, 50/60 Hz 5 V DC 1 A
IP classification:	IP20
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
DMX channels:	Output 512
DMX input:	1 x 3-pin XLR (M)
Control:	QuickDMX built-in
Carrier frequency:	2,4 GHz
Modulation:	GFSK
Parallel mode:	Max. 6 transmitter
Range:	400 m
Color:	Silver
Dimensions:	Length: 21,2 cm Diameter: Ø 1,8 cm
Weight:	150 g
EUROLITE DMX LED Color Chief Controller
Power supply:	100-240 V AC, 50/60 Hz 9 V DC 800 mA
Power consumption:	10 W
IP classification:	IP20
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Programs:	Programmable 24 Sequences
DMX channels:	Output 240
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Sound to light via RCA (f) mounting version; Sound to light via Microphone
Housing color:	Black
Available storage media:	USB devices (FAT 32)
USB port:	Typ A
Color:	Black
Housing design:	(19″) 48.3 cm rack installation 3 U
Dimensions:	Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm
Weight:	2,25 kg
EUROLITE STV-60-WOT EU Steel Stand black
Maximum carrying capacity:	30 kg
Height:	Maximum: 315 cm Minimum: 150 cm
Attachment system:	TV spigot Ø 28mm
Type (general stands):	Light stand/manual
Material:	Steel/magnesium
Color:	Black
Transport dimensions:	1,26 m x 12 cm x 15 cm
Weight:	5,65 kg
