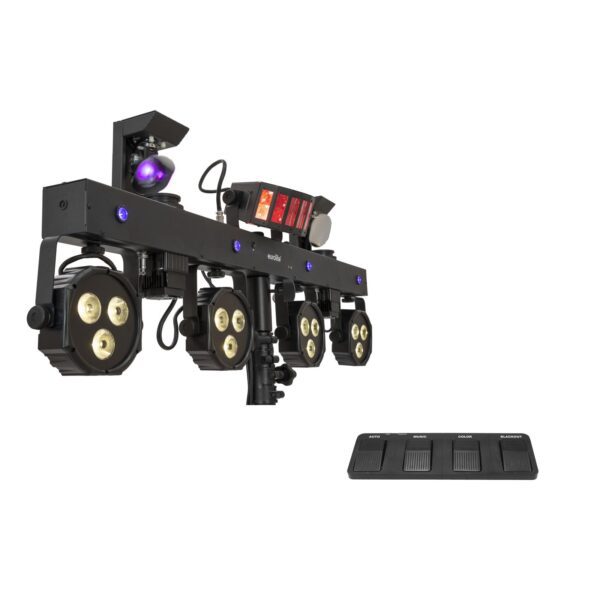

EUROLITE Set LED KLS Scan Next FX Compact Light Set + Foot switch
798,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
EUROLITE LED KLS Scan Next FX Compact Light Set
Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag
- DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
- Ultra-light ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for stand installation
- Swivel mounting brackets for truss mounting
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- Sound-control via built-in microphone with sensitivity control
- Several diverse DMX modes for various consoles and requirements
- LED derby and LED spots individually tiltable and controllable
- Spots with 15° beam angle
- Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
- Brand-new software design with smart programs
- 20 built-in auto and music show programs that include all 4 effect units
- Addressing and setting via control panel with 4-digit OLED display
- Supports QuickDMX – the wireless DMX system by Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- When fog is used, this effect becomes especially attractive
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
- For application areas such as: Wedding/gala; Lender; Small lender
spotlight
- LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)
light effect
- LED: Multi beam effect each 1 x 3 W RGB
moving light
- LED: Scanner each 1 x 15 W CW
bar
- LED: 4 x high-power 1 W UV
EUROLITE Foot Switch KLS Compact Light Set MK2
Wireless foot switch for KLS Compact Light Sets
- The device is cooled by passive convection
- Controlling by Wireless footswitch
- Non-slip pedal housing
| Weight: | 13,64 kg |
| EUROLITE LED KLS Scan Next FX Compact Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 115 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| Equipment: | Color wheel; gobo wheel with static gobos |
| DMX channels: | 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | Spot 15° |
| Beam angle (1/10 peak): | Spot 28° |
| Illuminance in Lux (lx): | R red 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx G green 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx B blue 1m: 395 lx, 3m: 47 lx, 6m: 13 lx WW 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm |
| Display type: | OLED display |
| Dimensions: | Width: 1,1 m Depth: 15,5 cm Height: 43 cm |
| Weight: | 12,80 kg |
| Spotlight | |
| LED: | Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix) |
| Light effect | |
| LED: | Multi beam effect each 1 x 3 W RGB |
| Moving light | |
| LED: | Scanner each 1 x 15 W CW |
| Bar | |
| LED: | 4 x high-power 1 W UV |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese |
| Legal specifications | |
| Ecodesign regulation: | yes |
| Special product: | Not designed for household room illumination |
| intended use: | show effect lighting |
| EUROLITE Foot Switch KLS Compact Light Set MK2 | |
| IP classification: | IP20 |
| Battery: | 9.0 V E block (provided) |
| Cooling: | Passive convection |
| Control: | Wireless footswitch |
| Housing color: | Black |
| Carrier frequency: | 433,92 MHz |
| Housing design: | Non-slip pedal housing |
| Weight: | 840 g |
| Peso | 14,8 kg |
|---|---|
| Dimensioni | 0,3000 × 13,000 × 0,5000 cm |
| Codice Ean | 4026397690842 |
