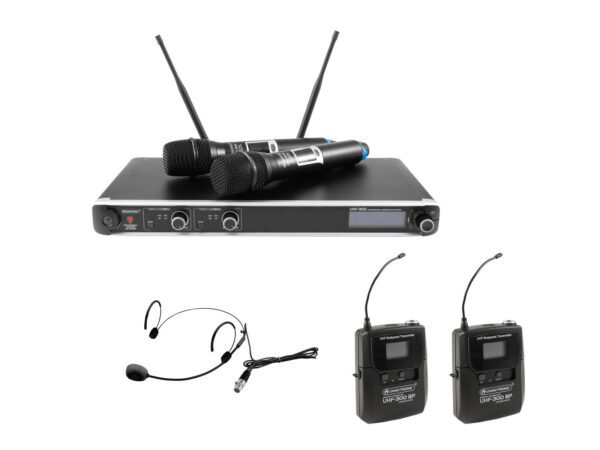

OMNITRONIC Set UHF-301 Receiver + Headset + 2x Transmitter 823-832/863-865 MHz

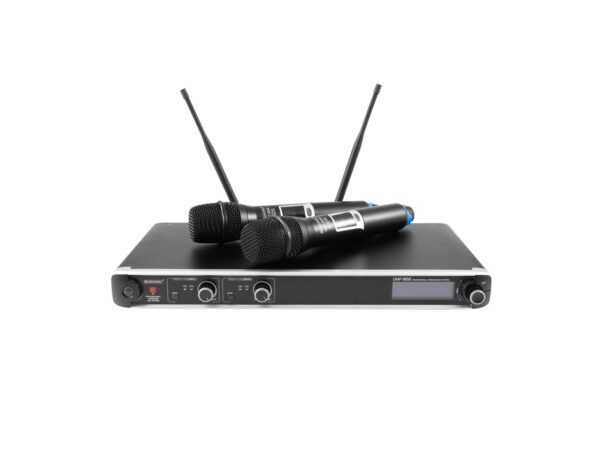

OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz

2-channel UHF PLL microphone system

• 2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
• 93 preset channels in 10 channel groups
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LEDs for carrier and audio signal
• 2 separate channels with volume controls
• Balanced XLR output per channel
• Detachable BNC antennas
• 2 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
• Operating range up to 60m with line-of-sight
• UHF 823 – 832 MHz License-free and approved in large parts of Europe
• UHF 863 – 865 MHz License-free and approved in Europe
• For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels

receiver

• (19") 48.3 cm rack installation possible 1 U
• LCD display
• Desktop console housing

microphone

• Polar pattern: Cardioid
• LCD display
• Charge status indicator

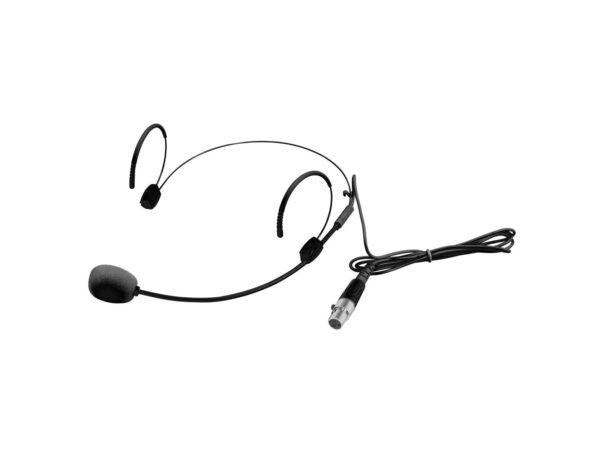

OMNITRONIC UHF-300 Headset Microphone black

Headset microphone for UHF-300 bodypack transmitter

• Low weight
• With gooseneck-microphone boom for exact positioning of the microphone capsule
• Provides high-quality voice pickup for applications requiring hands-free operation, such as aerobics or percussion
• Polar pattern: Cardioid
• For application areas such as: Clubs/dancing school; sports centres/gyms

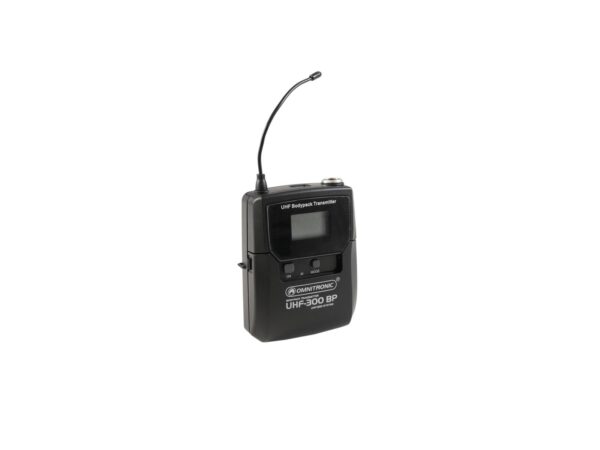

OMNITRONIC UHF-300 Bodypack 823-832/863-865MHz

Bodypack transmitter for UHF-300 receivers

• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Gain level adjustable in 4 steps
• Operating range up to 60m with line-of-sight
• UHF 823 – 832 MHz License-free and approved in large parts of Europe
• UHF 863 – 865 MHz License-free and approved in Europe
• LCD display
• Charge status indicator
• For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels

Scope of delivery

1 x OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz

• 1 x receiver
• 2 x antenna
• 1 x external mains adapter
• 2 x microphone
• 1 x jack cable
• 2 x holder
• 2 x mounting bracket
• 4 x screw
• 1 x user manual
• 1 x declaration of conformity

1 x OMNITRONIC UHF-300 Headset Microphone black

• 1 x microphone
• 1 x windshield
• 1 x user manual

2 x OMNITRONIC UHF-300 Bodypack 823-832/863-865MHz

• 1 x transmitter
• 1 x user manual
• 1 x declaration of conformity

Weight:	3.22 kg
OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz
Type:	Wireless set
IP classification:	IP20
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 – 832 MHz; UHF 863 – 865 MHz
Frequency stability:	±
Modulation:	FM; PLL technology
Frequency selection:	93 switchable frequencies
Weight:	2.30 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 14V DC 350 mA
Power consumption:	4 W
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	2
Frequency range:	50 – 18.000 Hz
S/N ratio:	>80 dB
THD:	<0.5 % at 1 kHz
Display type:	LCD display
Display:	Channel , frequency , goup
Control elements:	Power switch, level control, encoder
Connections:	Input: antenna via 2 x BNC (F) Output: line via 1 x 6.3 mm plug (unbal.) Output: microphone via 2 x 3-pin XLR
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 41 cm Depth: 23.5 cm Height: 4.7 cm
Microphone
Type:	Hand-held transmitter
Power supply:	3V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
RF power output:	10 mW
Display type:	LCD display
Display:	Frequency , charge status indicator
Switch:	On/off switch
Material:	Plastic
Dimensions:	Length: 25 cm Diameter: Ø 5.2 cm
Weight:	0.23 kg
OMNITRONIC UHF-300 Headset Microphone black
Type:	Headset microphone
Power supply:	1.5-10V DC
Power connection:	Mains input via Mini XLR (F) 3-pin
Cable length:	1.00 m
Capsule type:	Condenser
Polar pattern:	Cardioid
Frequency range:	20 – 20000 Hz
Sensitivity:	-53 dB
Impedance:	680 Ohm
Connector type:	Mini XLR (F) 3-pin
Material:	Metal
Color:	Black
Weight:	0.03 kg
OMNITRONIC UHF-300 Bodypack 823-832/863-865MHz
Type:	Pocket transmitter
Power supply:	3V DC
Power connection:	Battery/battery pack
Battery:	2 x Mignon (AA) (not included)
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 – 832 MHz; UHF 863 – 865 MHz
RF power output:	10 mW
Frequency selection:	Switchable frequencies
Connector type:	Mini XLR (M) 3-pin mounting version
Display type:	LCD display
Display:	Charge status indicator , frequency
Switch:	On/off switch; mute control
Material:	Plastic
Color:	Black
Dimensions:	Width: 6 cm Depth: 2.3 cm Height: 8.5 cm
Weight:	0.07 kg
