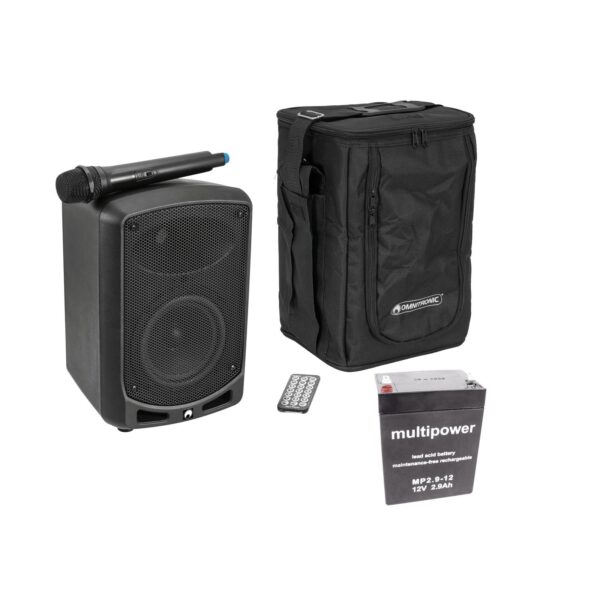

OMNITRONIC Set WAMS-65BT + Battery + Carrying bag

OMNITRONIC WAMS-65BT Wireless PA System

Portable 6.5″ PA with wireless microphone, audio player, Bluetooth and 40 W peak power

• Portable all-in-one PA system with 40 watts output power
• 4-channel power mixer
• 2-way bass-reflex system
• SD card slot and USB port
• Integrated automatic charging of the battery
• 1 microphone input (XLR) with adjustable reverb effect
• 1 line input (RCA)
• Tone control and master control
• Link output for the combination of several amplifier systems
• Light-weight ABS cabinet with metal grille and carrying handle
• Flange for stand installation
• UHF 863 – 865 MHz License-free and approved in europe
• For application areas such as: Theater; mobile use; Wedding/gala/events; product presentations and lectures

Battery pack

• Battery operation up to 4h

Audio player

• Controlling by Bluetooth; IR remote control
• 4 digits 7-segment LED display
• 2.4 GHz license-free worldwide
• Bluetooth: Operating range up to 10m

Microphone

• Polar pattern: Cardioid
• Operating range up to 30m

Remote control

• Operating range up to 10m

Package contents

• 1 x device, 1 x power cord, 1 x microphone, 1 x remote control, 1 x user manual, 1 x declaration of conformity

Akku 12V/2900mAh WAMS-05 / WAMS-65

Package contents

• 1 x device

OMNITRONIC WAMS-65BT Speaker Carry Bag

Protective bag for WAMS-65BT

• Made of easy-care artificial black textile
• Sound-transparent front of meshed fabric
• Speaker can remain in the bag during operation
• Opening for speaker stand
• With 2 Outside pockets

Package contents

• 1 x bag

Weight:	6,32 kg
OMNITRONIC WAMS-65BT Wireless PA System
Power supply:	100-240 V AC, 50/60 Hz Or 12 V DC
Power consumption:	60 W
Output power:	40 W RMS
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack (not included)
Frequency range:	62 – 18000 Hz
THD:	<0,5 % at 1 kHz
Circuitry:	Class D
Control elements:	Echo effect control, Audio player
Status LED:	Power, peak, ON AIR, signal, charge level
Connections:	Input: line via 1 x stereo RCA Input: Microphone via 1 x 3-pin XLR Output: line via 1 x 6.3 mm plug (unbal.)
Input channels:	1 x mono via XLR, channel control via Rotary dial 1 x stereo via RCA, channel control via Rotary dial
Frequency band:	UHF 863 – 865 MHz
Carrier frequency:	865 MHz
Frequency selection:	Fixed frequencies
Speaker:	1 x woofer (6.5″) approx. 17 cm 1 x tweeter (1″) approx. 2,5 cm
Frequency stability:	± 0,005 %
Type of speaker:	Compact cabinet speaker; Wireless PA system
Color:	Black
Weight:	4,15 kg
Battery pack
Battery pack type:	1 x lead 12 V, 2900 mAh,
Battery pack:	Battery operation up to 4h Recharging time 4h
Audio player
Control:	Bluetooth; IR remote control
Audio player:	USB + SD + Bluetooth
Display type:	4 digits 7-segment LED display
Format:	MP3, WAV
Frequency band:	2.4 GHz
Available storage media:	USB devices/SD cards max. 32GB (FAT 32)
Range:	Bluetooth: range up to 10m
Microphone
Power supply:	3 V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
RF power output:	10 mW
Range:	Range up to 30m
Switch:	On/off/mute switch
Material:	Plastic
Dimensions:	Length: 26 cm Diameter: Ø 4 cm
Weight:	115 g
Remote control
Power supply:	3 V DC
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
Range:	Range up to 10m
Akku 12V/2900mAh WAMS-05 / WAMS-65
Weight:	1,094 kg
OMNITRONIC WAMS-65BT Speaker Carry Bag
Color:	Black
Weight:	420 g
