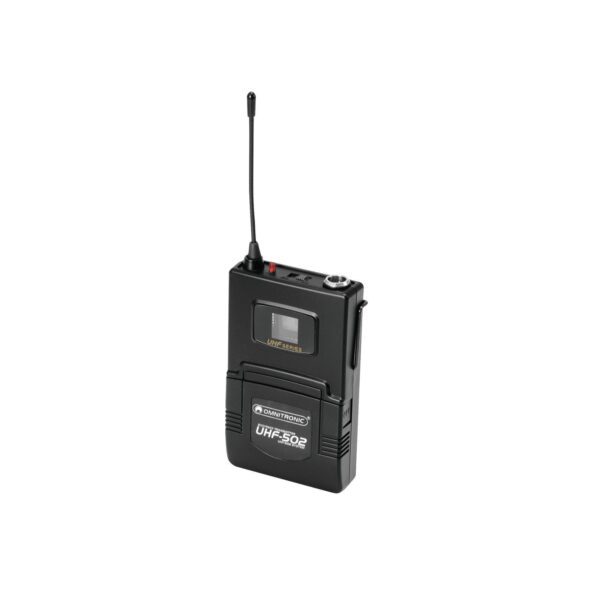

Pocket transmitter with lavalier microphone
- Pocket transmitter for UHF-502 microphone system
- Incl. lavalier microphone
- Headset microphone optional
- Operation in the Duplex Gap 823-832 MHz
- Pilot tone technology (PLL) for interference-free operation
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- LCD for battery capacity and transmission channel

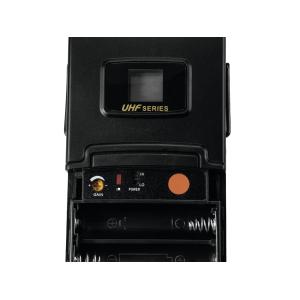

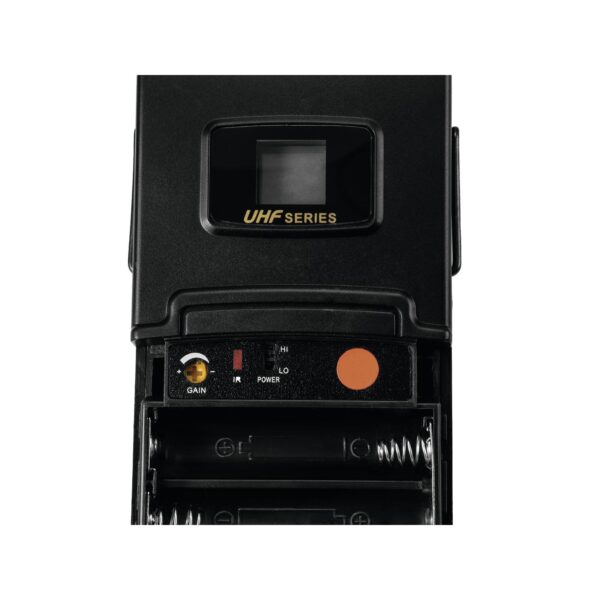

- Sensitivity adjustable
- Transmitting power 5 mW/10 mW, switchable
- LED battery indicator
- Belt clip

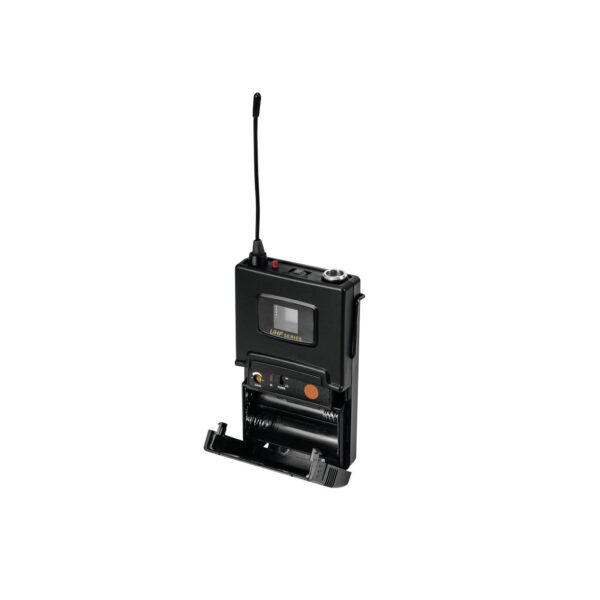

- Operation via 2 x 1.5 V batteries (type AA), not included
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
| Carrier frequency: | UHF 823-832 MHz |
| Color code: | CH A = green, CH B = orange |
| Receiving frequencies: | 100 |
| Coverage: | 50 m (with line-of-sight) |
| RF power output: | 5 mW (LO), 10 mW (HI) |
| Modulation method: | FM |
| Frequency stability: | 10 ppm |
| S/N ratio: | >90 dB |
| T.H.D.: | <1 % |
| Audio input: | mini XLR (supplies 5 V) |
| Battery: | 2 x 1.5 V, type AA |
| Power consumption: | approx. 100 mA |
| Dimensions (L x W x H): | 108 x 66 x 22 mm |
| Weight: | 190 g |
| Lavalier microphone: | |
| Type: | Electret |
| Directivity pattern: | Cardioid |
| Frequency range: | 50-15000 Hz |
| Sensitivity: | -47 dB |
| Impedance: | 680 ohms |
| S/N ratio: | >63 dB |
| Power supply: | 2-10 V DC |
| Connection: | cable with 3-pin mini XLR plug |
| Cable length: | approx. 1 m |
| Capsule: | 9.7 x 5.2 mm |
| Weight: | 27 g |
| Peso | 0,2190 kg |
|---|---|
| Dimensioni | 0,0700 × 0,2100 × 0,0900 cm |
| Codice Ean | 4026397580747 |
