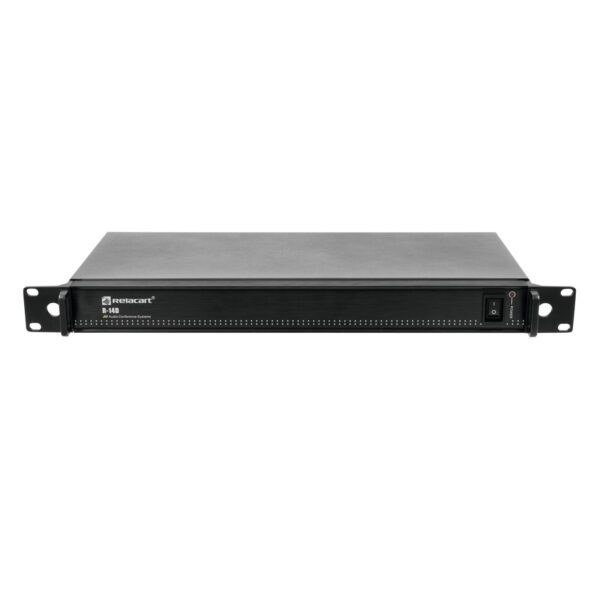

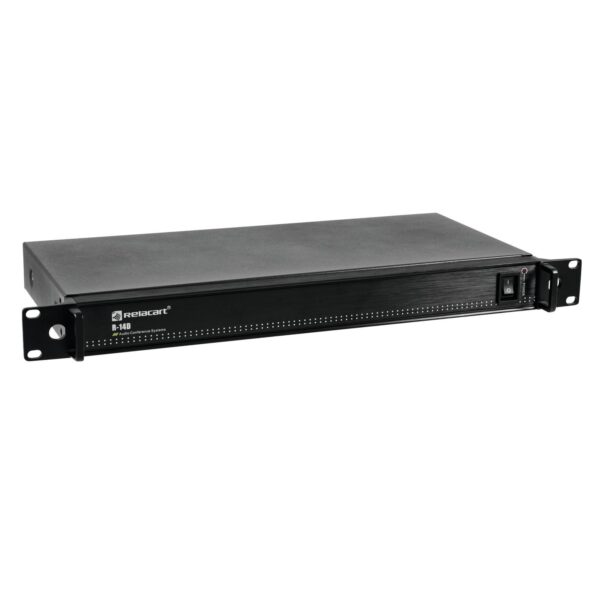

RELACART R-14D Antenna Distribution System
442,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
Antenna distributor
- Active antenna distributor for operating up to four UHF receivers on one pair of multi-antennas
- Improves the interference safety and enlarges the range
- Replaces the respective antennas and PSUs of the individual receivers
- Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
- Low-voltage outputs for supplying four UHF receivers, incl. matching connection cables
- Use in the entire UHF frequency range (470 – 900 MHz)

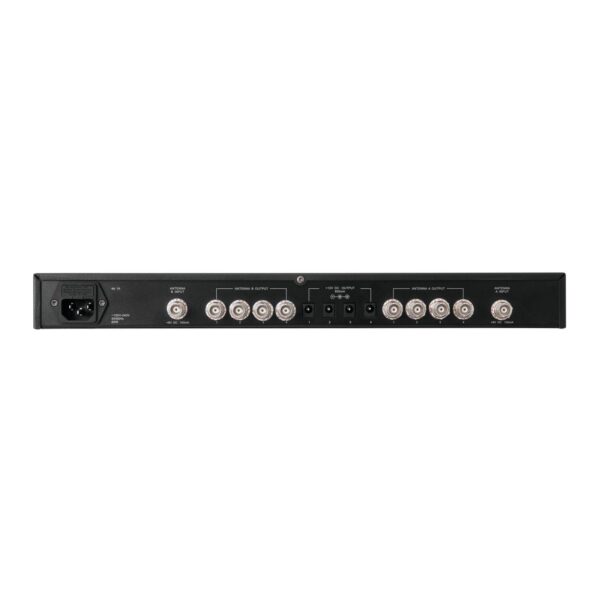

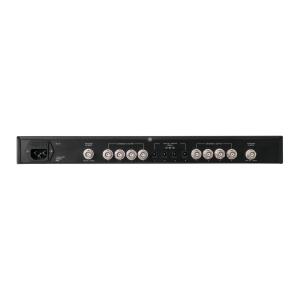

- All antenna connections via BNC jacks
- Rack installation with 1 unit
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 60 W |
| Frequency range: | 470-900 MHz |
| Impedance: | 50 ohms |
| Antenna connectors: | 2 x BNC |
| Receiver outputs: | 8 x BNC |
| Low-voltage outputs: | 4 x 12 V DC |
| Dimensions distributor: | 482 x 242 x 45 mm |
| Rack installation with 1 U | |
| Weight: | 2.6 kg |
| Peso | 36,740 kg |
|---|---|
| Dimensioni | 0,0850 × 0,5900 × 0,4300 cm |
| Codice Ean | 4026397566543 |
