RELACART UR-222D 2-Channel UHF Receiver
243,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
2-channel multifrequency wireless receiver with true diversity reception
- 2-channel multifrequency wireless receiver with high-quality true diversity reception
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot tone technology (PLL) for interference-free reception
- Operation range with line of sight approx. 80 meters
- Automatic frequency scan (AFS) finds interface-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider

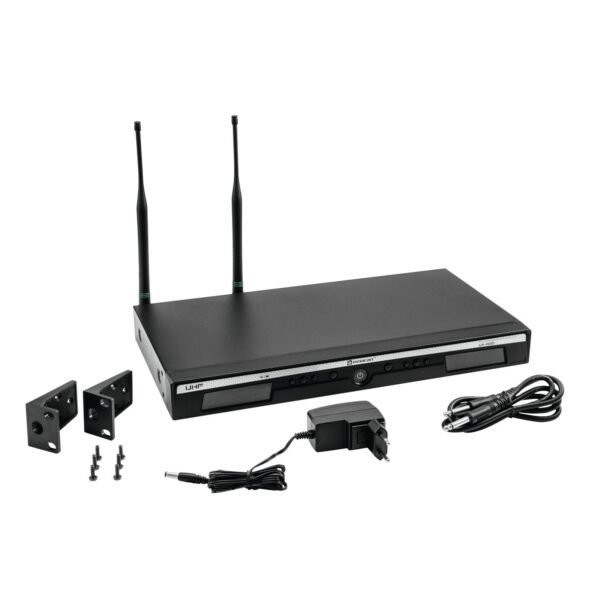

- Delivery includes practical transport bag with jack cable and power unit
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- Matching transmitters optionally available: hand-held microphone (UH-222D) and pocket transmitter (UT-222)
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- On/off/mute-switch: Yes
| System: | True diversity, 2 channels |
| Carrier frequency: | UHF 823-832 MHz and 863-865 MHz |
| Receiving frequencies: | 90 |
| 10 frequency banks with up to 10 preset frequencies each | |
| Switching bandwidth: | 11 MHz |
| Deviation: | ±45 kHz |
| Frequency stability: | ±0.0005 % |
| T.H.D.: | <0.7 % at 1 kHz |
| S/N ratio: | >105 dB |
| Modulation method: | FM |
| Coverage: | 80 m (with line-of-sight) |
| Frequency range: | 45-18000 Hz |
| Sensitivity: | 5 dBµV (S/N >60 dB at 25 deviation) |
| Audio output: | 2 x XLR, bal. |
| 6.3 mm jack, unbal. | |
| Antenna inputs: | 2 x BNC (supply 8 V/150 mA) |
| Power supply: | 12 V DC, 1 A |
| via supplied power unit connected to 100-240 V AC, 50/60 Hz | |
| Dimensions: | 410 x 46 x 260 mm |
| Rack installation with 1 U | |
| with supplied mounting brackets | |
| Frequency band: | UHF 863 – 865 MHz |
| Frequency band: | UHF 823 – 832 MHz |
| Power consumption: | 6 W |
| Weight: | 1.9 kg |
| Material: | Metal |
| Height: | 4,6 cm |
| Depths: | 26 cm |
| Width: | 41 cm |
| Peso | 30,000 kg |
|---|---|
| Dimensioni | 0,0850 × 0,6000 × 0,4300 cm |
| Codice Ean | 4026397607635 |
