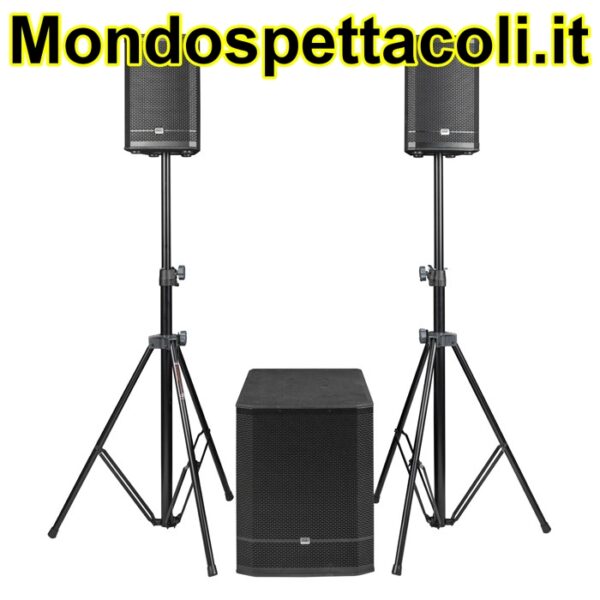

Pure Club 15 Sistema attivo Sub 15″ + 2 Top 8″ con DSP

Il fratello maggiore del Pure Club 12 con un subwoofer da 15″ e due satelliti da 8″ /1″. I satelliti sono dotati di driver ad alto contenuto di neodimio e di una speciale guida d’onda per frequenze fino a 20Khz. Grazie agli altoparlanti medi da 8″ questo set ha una qualità sonora naturale più dettagliata. Il processore DSP integrato proteggerà il sistema e i driver degli altoparlanti dal sovraccarico e darà un’eccellente risposta in frequenza a qualsiasi livello di pressione sonora. Il set è rifinito con vernice antigraffio ed eleganti griglie in metallo.

Mono Inputs: 2
Mono Input Connector: 3pole XLR / RCA / TRS balanced 6,3mm
Mono Input Impedance: 20.000 Ω
Low Driver Power: 400 W
Mid Driver Power: 150 W
Amplifier RMS Output Power: 700 W
Amplifier Peak Output Power: 1400 W
Top Cabinet High Driver Power: 150 W
Top Cabinet Low Driver Power: 150 W
Subwoofer Power: 400 W
Passive High Output Connector: NL4
Main Outputs: 2
Main Output Connector: 3pole XLR
Main Output Maximum Level: 10 dB
THD Distortion Level: < 0.5%
Signal – Noise Ratio: > 105dB
AD/DA Convertor Sample Rate: 96 kHz
SLEW Rate: 20 V/μs
Amp Technology: Class D /Class H
Dampings Factor: 400 :1
Top Cabinet Impedance: 8 Ω
Subwoofer Impedance: 8 Ω
Speaker System: Active Sub-Top Set
Speaker Sensitivity (1w/1m): 100 dB
Max. SPL on 1m: 128 dB
Max. SPL subwoofer on 1m: 128 dB
Max. SPL top cabinet on 1m: 116.8 dB
DSP Processor Bitrate: 48 bit
Frequency Respons Minimum: 40 Hz
Frequency Respons Maximum: 20.000 Hz
Frequency Respons (-10dB) Minimum: 35 Hz
Frequency Respons (-10dB) Maximum: 20.000 Hz
Crossover Frequency Low: 125 Hz
Crossover Frequency Mid: 125 Hz
Crossover Frequency High: 2.700 Hz
Woofer Diameter: 15
Woofer Voice Coil: 3
Woofer Magnet Type: Ferrite
Satellite Woofer: 8
Satellite Woofer Voice Coil: 2
Satellite Woofer Magnet Type: Ferrite
Compression Driver Diameter: 1
Compression Driver Voice Coil: 1
Compression Driver Magnet Type: Neodymium
Dispersion Angle Horizontal: 90 °
Dispersion Angle Vertical: 60 °
Subwoofer Dispersion Angles Horizontal: 360 °
Subwoofer Dispersion Angles Vertical: 180 °
Satellite Dispersion Angles Horizontal: 90 °
Satellite Dispersion Angles Vertical: 60 °
Equalizer Range: 12 dB
Parametric Input Equalizer: 3 Bands
Equalizer Types Input: Bell / High Shelf / Low Shelf / Notch
Crossover Filter Types: Butterworth
Crossover Slopes: 24 dB
Limiter Treshold Minimum: -20 ms
Limiter Treshold Maximum: 0 ms
User Presets: Yes
User Presets Capacity: 6
Display: LCD
Power Supply: 100-240VAC 50-60Hz
Power Consumption: 1200 W
Power Connector in: ProPower Blue
Length Top Cabinet: 265 mm
Length Subwoofer: 625 mm
Height Top Cabinet: 420 mm
Height Subwoofer: 570 mm
Width Top Cabinet: 250 mm
Width Subwoofer: 454 mm
Speaker Adapter Diameter: 35mm mm
Weight Top Cabinet: 7.9 kg
Weight Subwoofer: 32.5 kg
IP Rating: IP20(indoor use only)
Material: Wood
Housing: Wood
Finish: Painted
Colour: Black
Amplifier Airflow: N/A
Amplifier Cooling: Convection
Electronic Protection: Clip limiter / DC voltage / Digital limiter / High frequency / Overheat / RF / Short circuit / Softstart
LED Indicators: Power
Rotatable Horn: No
Useable as Monitor/Wedge: No
Speaker Grill: Steel
Speaker Handles: Left side / Right side / Top
Castors: Optional
Included Cables: PowerCon cable
