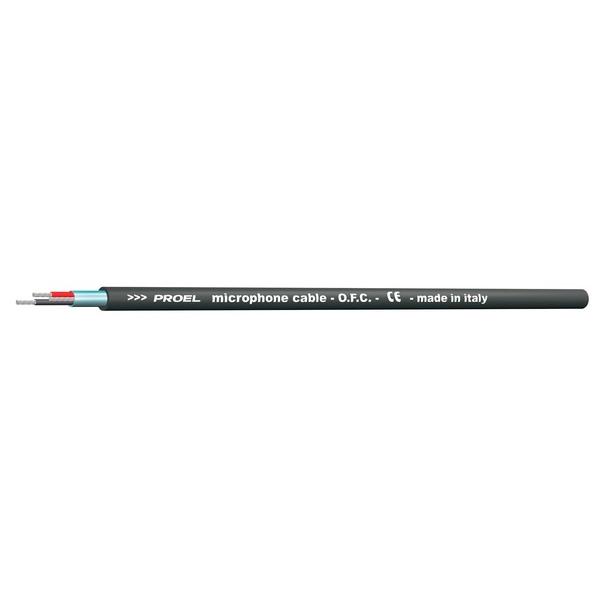

PROEL HPC201BK

Cavo bilanciato professionale per microfono con guaina esterna robusta e flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0,14 mm²). Colore nero.

Cavo bilanciato professionale per microfono con guaina esterna robusta e flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0,14 mm²). Colore nero.

• Application fields: Mixer connections / Microphone connections
• Conductors: Bare copper 26 AWG = 18 x 0.10 mm (0.14 mm²)
• Insulation: PE Ø 1.25 mm
• Shield: Aluminium/Polyester 100%
• Jacket: Flexible PVC 60 shore Ø 6.00 mm
• Drain wire: Tinned copper 24 AWG = 7 x 0.20 mm (0.22 mm²)
• Color: Black
• Electrical resistance: 125 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 45 pF/m (conductor/conductor) @ 1 KHz
• 96 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 66 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 40 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging:
• 100 m carton reel
