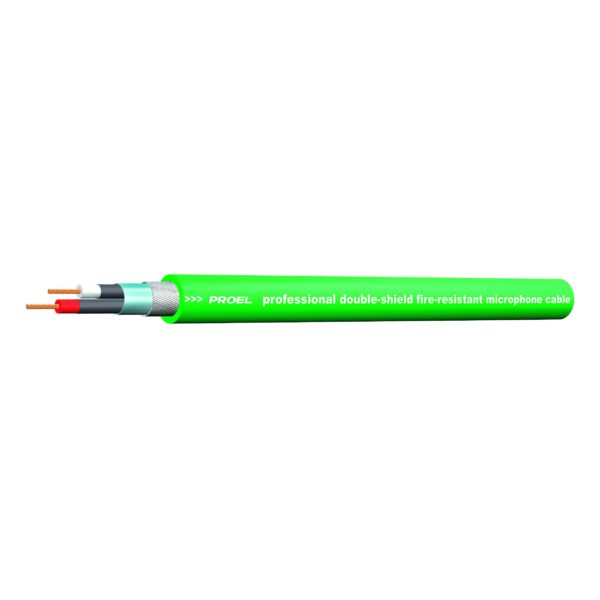

PROEL HPC210FR300

Cavo bilanciato per microfono con guaina esterna flessibile antifiamma particolarmente indicato per installazioni fisse. – O.F.C. (Oxygen Free Copper) – Sezione 2 x 0.34 mm². Colore verde RAL6017. Bobina in legno da 300 m.

Cavo bilanciato per microfono con guaina esterna flessibile antifiamma particolarmente indicato per installazioni fisse. – O.F.C. (Oxygen Free Copper) – Sezione 2 x 0.34 mm². Colore verde RAL6017. Bobina in legno da 300 m.

• Application fields: Installation / Recording studios / Microphone connections
• Conductors: Bare copper 22 AWG = 19 x 0.15 mm (0.34 mm²)
• Insulation: XLPE Ø 1.60 mm natural/red
• Shield: Aluminium foil 100% / Tinned copper braid 90%
• Jacket: Flexible fl ame resistant PVC Ø 5.60 mm / Complying with IEC 332.2 regulations
• Color: Green RAL6017
• Electrical resistance:< 62 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 50 pF/m (conductor/conductor) @ 1 KHz
• 87 pF/m (conductor/shield) @ 1 KHz
• Nominal impedance: 110 Ohm
• Attenuation:
• 1 MHz = 1.60 dB/100 m
• 3 MHz = 2.80 dB/100 m
• 6 MHz = 4.00 dB/100 m
• 8 MHz = 4.60 dB/100 m
• 10 MHz = 5.10 dB/100 m
• Velocity of propagation: 66 %
• Operating temperature: -20°C / +80°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 44 Kg/Km
• Minumum bending radius: 30 mm
• Packaging: 300 m wooden reel (HPC210FR300)
