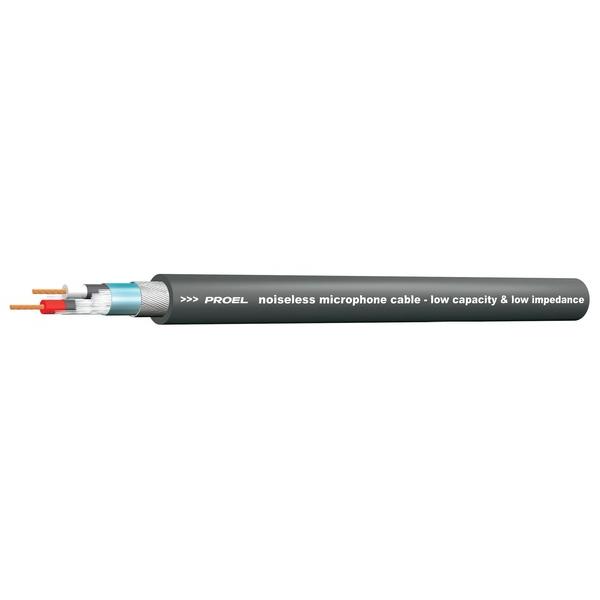

PROEL HPC220

Cavo bilanciato “high quality” – per microfono con guaina esterna robusta e flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0.22 mm²). Colore nero.

Cavo bilanciato “high quality” – per microfono con guaina esterna robusta e flessibile – O.F.C. (Oxygen Free Copper – Sezione 2 x 0.22 mm²). Colore nero.

• Application fields: Mic-Mixer connections / Microphone connections
• Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2)
• Insulation: PE Ø 1.80 mm
• Shield: Aluminium foil 100% / Tinned copper braid 8x16x0.10 mm 90%
• Jacket:
• Conductors: High-conductive PVC Ø 2.40 mm
• Cable: Flexible PVC 64 shore Ø 7.00 mm
• Color: Black
• Electrical resistance: 75 Ohm/Km (conductor) @ 20°C
• Electrical capacitance: 120 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 66 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 51 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging: 100 m carton reel
