PROEL RMW821H
PREZZO SU RICHIESTA
PLL UHF Wireless Bodypack Microphone System
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |

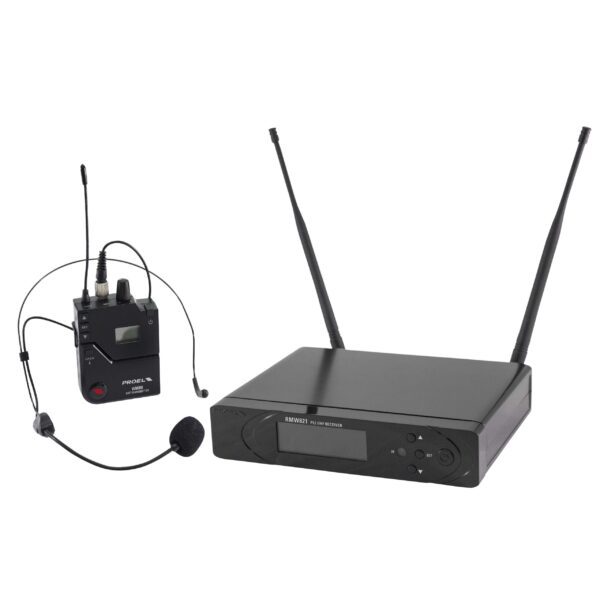

PLL UHF Wireless Bodypack Microphone System
- UHF Dual Band 821 – 832 and 863 – 865 MHz
- Frequencies selectable in steps of 25 kHz
- Up to 50 mt /100 feet range (open space)
- IR Synchronization
- True Diversity receiver
- Up to 5 systems usable in the same location depending on the circumstances
- ABS carrying and storage case

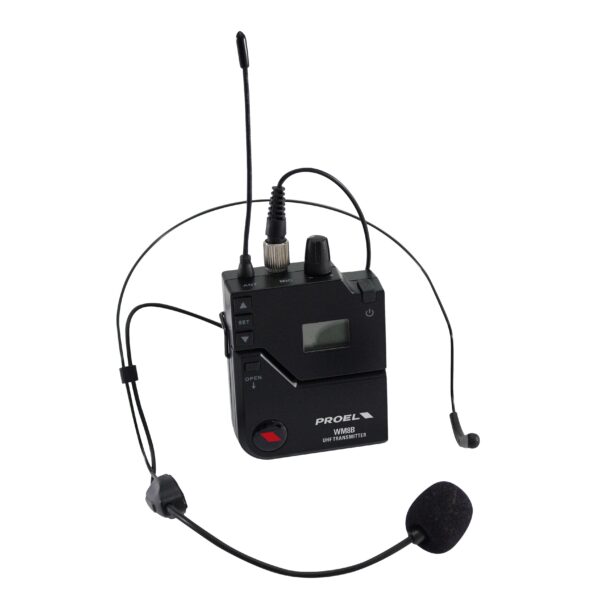

| WM8B BODYPACK TRANSMITTER | |
| Carrier Frequency Range | 821 – 832 MHz and 863 – 865 MHz |
| Modulation Method | FM (F3E) |
| Transmission Distance | Up to 50 m (open space) |
| RF Frequency Stability | 0,00% |
| Audio Frequency Response | 50 -15000 Hz |
| RF Max Deviation | ±50 kHz |
| Spurious Emission | Under limits EN300422 |
| RF Output Power | < 10 dBm Max Erp (Effective Radiated Power) |
| Mic Capsule Headset | Back electret condenser |
| Polar Pattern | Omnidirectional |
| Power Requirement | 2 x 1,5 Volt AA type |
| Battery Life | Up to 8 hours |
| Dimensions | H 73 x L 58 x W 22 mm |

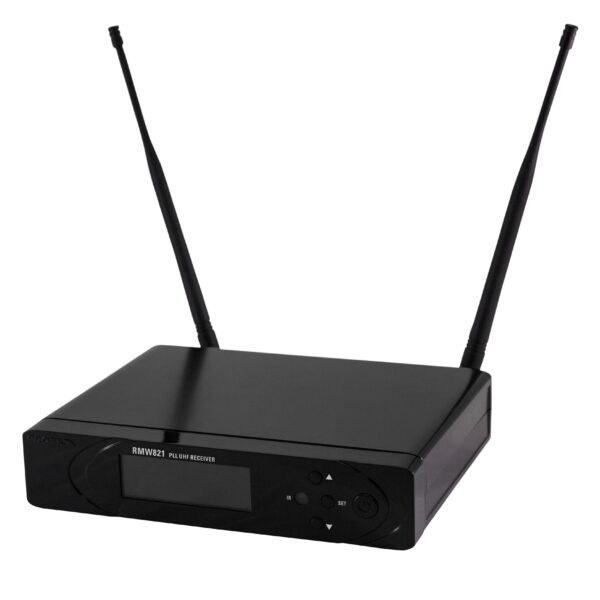

| WM821 RECEIVER | |
| Receiver Type | UHF Band |
| Frequency Range | 821 – 832 MHz and 863 – 865 MHz |
| RF Frequency Stability | 0,00% |
| Modulation Method | FM (F3E) |
| RF Image / Spurious Rej | > 70 dBm |
| RF Interference Rej | > 70 dBm |
| Sensitivity | -105 dB |
| Audio Frequency Response | 60 – 18000 Hz |
| THD | < 1 % |
| Dynamic Range | > 90 dB |
| S/N Ratio | > 100 dB |
| Power Requirement | +12 – 15 vdc 500 mA |
| Output Connector | Unbalanced ¼ “ jack – XLR 3 balanced |
| Dimensions | H 45 x L 210 x W 160 mm |
| Peso | 1,2 kg |
|---|---|
| Codice Ean | 8032496240150 |
