PROEL WM101KIT

PREZZO SU RICHIESTA

UHF Wireless Microphone

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 8032496240167 COD: WM101KIT Categoria: Wireless microphones

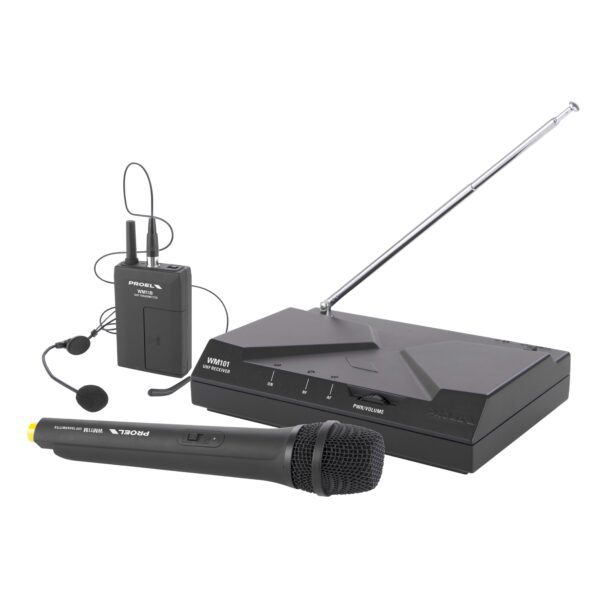

UHF Wireless Microphone

Kit Radiomicrofono mano- bodypack a frequenza fissa
Banda UHF 863 – 865 MHz
Distanza operativa massima fino a 25 metri / 85 feet
Risposta in frequenza 50 Hz – 15 KHz
Rapporto segnale rumore -105 dB
Capsula dinamica di tipo cardioide trasmettitore a mano
Headset con capsula a condensatore di tipo cardioide
Ricevitore da tavolo a basso profilo
Disponibili con 3 frequenze diverse , l’utilizzo in contemporanea è condizionato dalle possibili interferenze generate da altri trasmettitori radio
Custodia in ABS inclusa nella confezione
L’utilizzo in parallelo dei trasmettitori non è possibile,solo un trasmettitore alla volta può essere utilizzato .

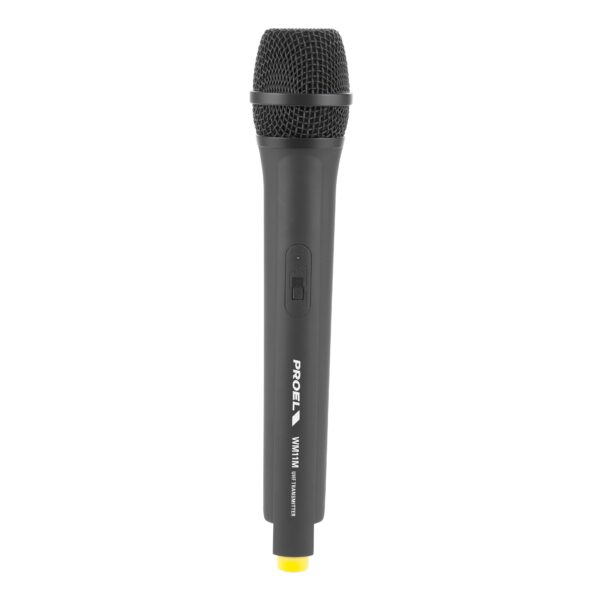

WM11M Handheld transmitter
Carrier frequency range	863 -865 mhz
Modulation Metod	FM(F3E)
Transmitting Power	< 10dBm Max Erp ( Effective Radiated Power )
Transmission distance	Up to 25 mt ( open space )
RF Frequeny Stability	0,00%
Audio Frequency Response	50 – 15000 Hz
RF Max deviation	± 50 khz
Spurious Emission	Under limits EN300422
RF Output Power	< 10dBm Max Erp ( Effective Radiated Power )
Mic Capsule	Dynamic
Polar pattern	cardioid
Power Requirement	AA*2
Battery Life	Up to 8 hours
Dimensions	H 260 x Ø 45 mm

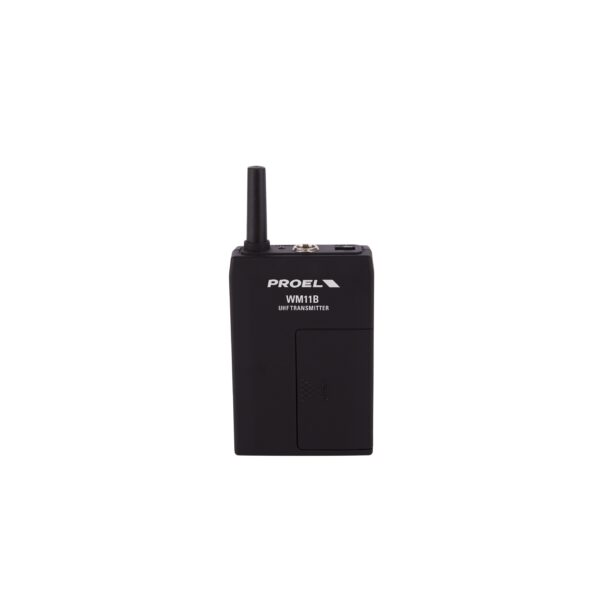

WM11B Bodypack Transmitter
Carrier frequency range	863 -865 MHz
Modulation Metod	FM(F3E)
Transmitting Power	< 10dBm Max Erp ( Effective Radiated Power )
Transmission distance	Up to 25 mt ( open space )
RF Frequeny Stability	0,00%
Audio Frequency Response	50 – 15000 Hz
RF Max deviation	± 50 khz
Spurious Emission	Under limits EN300422
RF Output Power	< 10dBm Max Erp ( Effective Radiated Power )
Mic Capsule Headset	Back Electret Condenser mini 3p xlr conn
Polar pattern	cardioid
Power Requirement	2 x 1,5 Volt AA type
Battery Life	Up to 8 hours
Dimensions	H 260 x Ø 45 mm

WM101 Receiver
Receiver Type	Uhf Band
Frequency range	863 -865 MHz
Modulation Metod	FM(F3E)
RF Frequeny Stability	0,00%
RF Image / Spurious Rej	>70 dBm
RF interference Rej.	>70 dBm
Sensitivity	-105 dBm
Audio Frequency Response	50 – 15000 Hz
THD	< 1%
Dynamic range	> 90 dB
S/N ratio	> 100 db
Power Requirement	2 x 1,5 Volt AA type
Output connector	Unbalanced ¼ “ jack
Dimensions	H 45 X L 150 × W 118 mm

Peso	1,2 kg
Codice Ean	8032496240167
