TOPP PRO TP MXI5

PREZZO SU RICHIESTA

Mixer 5 canali

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 4712646005115 COD: TP MXI5 Categoria: NO OWN Marchio: TOPP PRO

Descrizione
Informazioni aggiuntive

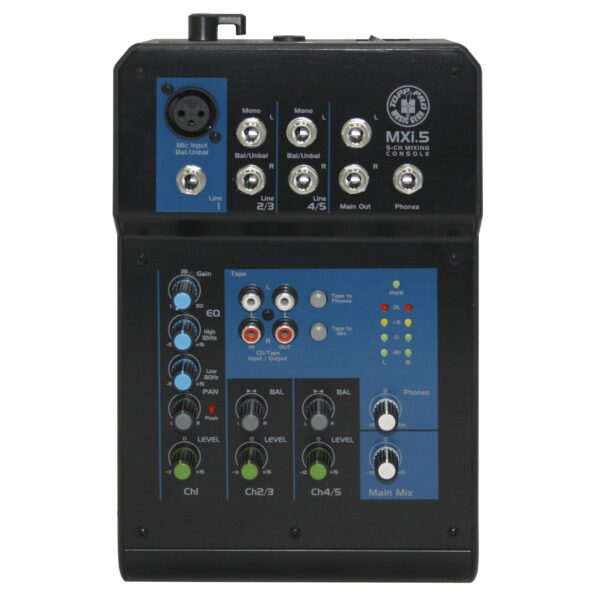

Mixer 5 canali

Questo mixer analogico passivo è davvero l’ideale per piccoli concerti . E’ dotato di 1 ch IN XLR, 2ch stereo line, volume e led di picco, 2 bande di equalizzazione per l’ingresso microfonico, 1 uscita cuffie, TAPE RCA in&out, Led meter per il master.

5 Input Mixer
1 MIC/Line input
2 Stereo Line Inputs
RCA Tape inputs/outputs
2-band EQ
Headphone output

Frequency Response

Mic Input to any Output (Trim at 0 dB)
+0, -1 dB	10 Hz to 150 kHz
-3 dB	10 Hz to 200 kHz

Distortion

THD and SMPTE IMD	20 Hz to 20 kHz
Mic Input to Main Output	<0.005% @+4 dBu output

Noise

20 Hz to 20 kHz BW (150 Ohm source impedance)
Equivalent Input Noise (EIN)	-129 dBu
Residual Output Noise
Main, Ctrl Room, Phones	-106 dBu

CMRR

Mic In	60 dB@1 kHz, Gain@ maximum

Crosstalk

Adjacent Inputs or Input to Output	-90 dB@1 kHz
Input Gain Conrol Range	0 dB to 50 dB
Phantom Power	+48 VDC

Equalization

High	+/-15 dB@12 kHz
Mid (except for MX.5)	+/-12 dB@2.5 kHz
Low	+/-15 dB@80 Hz

Mixer Rated Output

Main, Aux, Control Room	+4 dBu
Maximum Rated Output	+22 dBu

Maximum Input Levels

Mic Input	+12 dBu, Gain @+10 dB
Line Input	+30 dBu, Gain @+10 dB
Tape Input and Aux Return	+22 dBu

Input Impedance

Mic Input	2.6 kOhm , balanced
Line Input	20 kOhm , balanced
Stereo Aux Returns	20 kOhm , balanced
CD/Tape In	24 kOhm , unbalanced

Output Impedance

Main	240 Ohm , balanced; 120 Ohm, unbalanced
Ctrl Room, Aux Sends	120 Ohm
Tape Output	1 kOhm
Phones Output	25 Ohm

VU Meters

Main Left and Right (4-segment)	Clip (+18), +6, 0, -20 (0 LED=0 dBu)

AC Power Requirements

External Power Supply Output	18.5 VAC 2@150 mA (3-pin AC power connection)
External Power Supply AC Input
U.S.	120 VAC, 60 Hz
Europe	240 VAC, 50 Hz
Japan	100 VAC, 50/60 Hz
Korea	220 VAC, 60 Hz

Physical

Dimensions (H x W x D)
MX.5	41 x 133 x 203 mm (1.6″ x 5.2″ x 8.0″)
MX.6	203 x 133 x 41 mm (8.0″ x 5.2″ x 1.6″)
MX.10	41 x 188 x 252 mm (1.6″ x 7.4″ x 9.9″)
MX.12	41 x 272 x 259 mm (1.6″ x 10.7″ x 10.2″)
Net Weight
MX.5/MX.6	0.7 Kg (1.6 lb)/1.2 Kg (2.7 lb)
MX.10/MX.12	1.4 Kg (3.1 lb)/1.8 Kg (3.9 lb)
