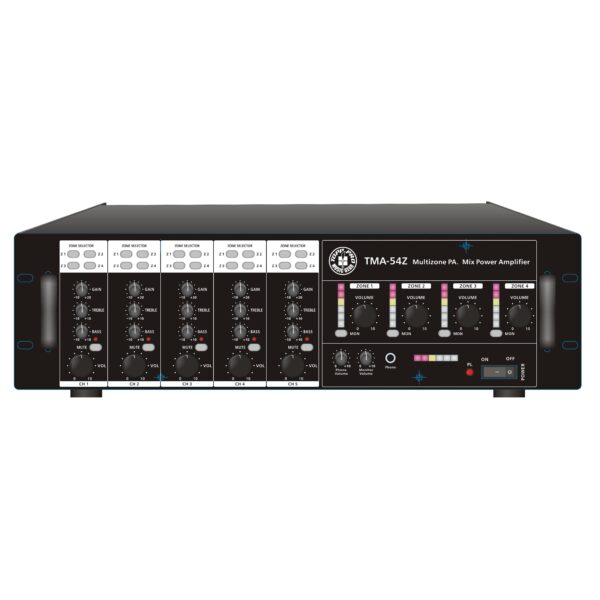

TOPP PRO TP TMA54Z

PREZZO SU RICHIESTA

Amplificatore professionale a 4 zone

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 8032496631965 COD: TP TMA54Z Categoria: NO OWN

Amplificatore professionale a 4 zone

Power Supply:

110-120V~ 60Hz or 220-240V~50/60Hz Selectable

Inputs Sensitivity:

CH1- 4:Mic/Phantom:-50dBV; Line: -10dBV balance
CH5: -10dBV unbalance
Telephone paging: -10dBV

Frequency response:

60-17000Hz(-3dB)

Tone control:

Treble: 10dB at 10KHz
Bass: 10dB at 100Hz

T.H.D.:

<1%

S/N ratio:

Priority for Mic-1:

mute CH2-CH5

Outputs impedance:

4 ohms , 8 ohms

Output constant voltage:

25V,70V,100V

Power output:

RMS120W X 4 (at 4 ohms )

Monitor output:

1W RMS

Phone output:

1V ( 47ohm)

Line out:

2.0V(BAL)

Monitor Line out:

1V( 600 ohms)

Controls:

5 Gain controls for Ch1-5
8 Volume controls for Ch1-5, tel. paging, monitor, phone
4 Master volume control
5 Trebel controls
5 Bass controls
4 Zone select switch for each channel
4 Zone monitor select switch
5 mute controls
1 AC select switch

Indicate LED:

Dimensions:(WxHxD)

483mm(W) x 133mm(H) x 395mm(D)

Peso	24,3 kg
Codice Ean	8032496631965
