TOPP PRO TP TMW-U1-100M

PREZZO SU RICHIESTA

Radiomicrofono professionale PLL UHF – Manuale

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 4712646002572 COD: TP TMW-U1-100M Categoria: Microphone&Headphone

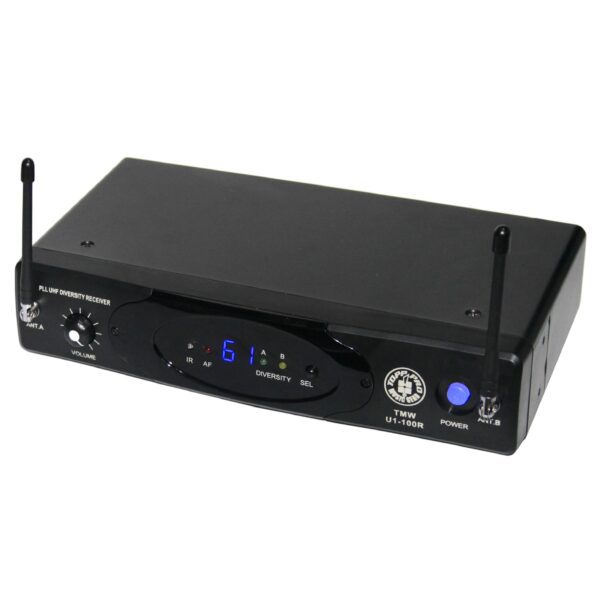

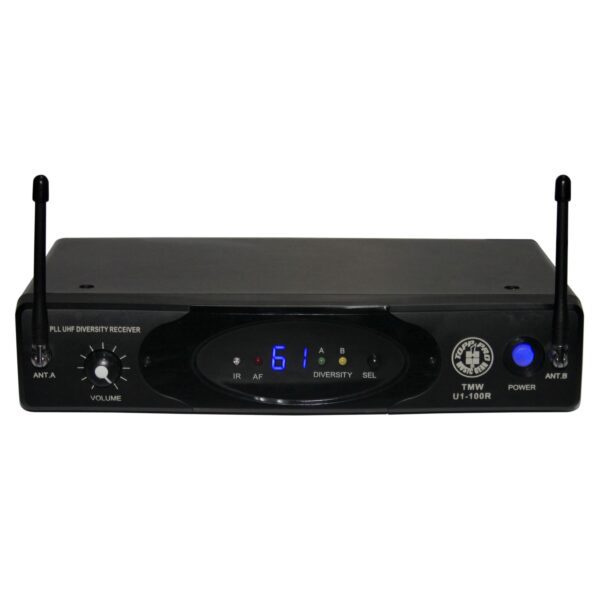

Channel	Single Channel, up to 99 frequency presets far each frequency bands
Receiver Type	PLL UHF SYNTHESIZED
Frequency Band	UHF
Frequency Response	50Hz – 15Khz (±3d8)
Frequency stability	±0.005%
Modulation Mode	FM (F3E)
T.H.D.	<1%
Dynamic	>100dB
Max Unbalanced Output	10d8u
Max Balanced Output	Max Balanced Output OdBu
SIN Ratio	> 100dB
RF Sensitivity	-100dBm/30mA
Power Supply	DC 15V / 30mA
Dimensions	220 (W) x 45 (H) x 125 (L) mm
Weight	0.56kg (Approx.)

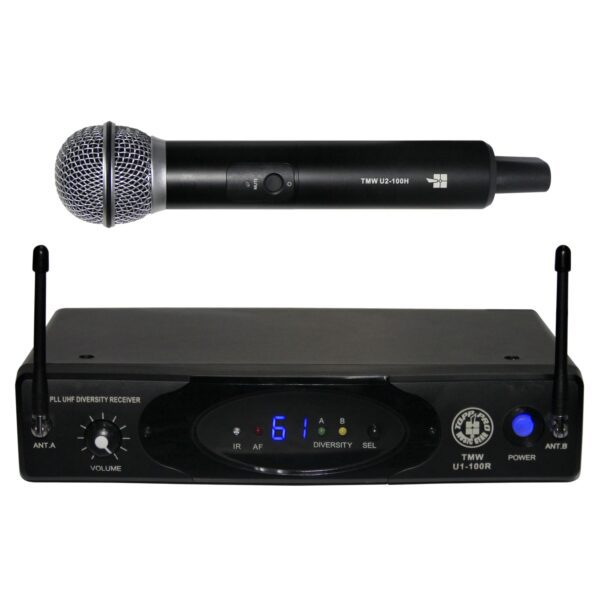

Model	U1-100T (Transmitter)
Tx Type	Handheld
Carrier Frequency Band	UHF
Oscillation Mode	PLL UHF SYNTHESIZED
Modulaion Mode	FM (F3E)
Frequency stability	±0.005%
RF Radiation (FCC)	10mW
Spurious Emissions	45dBm
T.H.D.	<1%
Frequency Response	50Hz – 15Khz (±3dB)
Current Drain	<150mA
Battery	“AA” x 2
Operation Temperature	-10°C to 50°C
Tone Frequency	35KHz
Dynamic	>100dB
Mic / lnstrument Input	10dBu
Microphone Capsule	Dynamic
4 Band Choice
Dimensions	240 x 50mm
Weight	0.270kg

Peso	1,2 kg
Codice Ean	4712646002572
