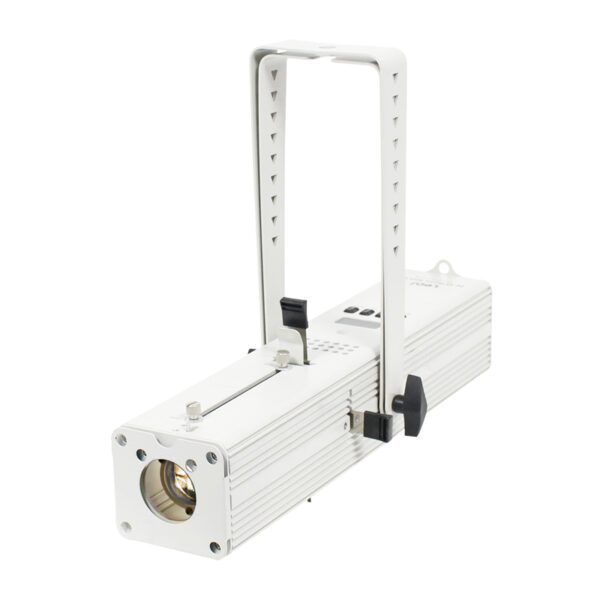

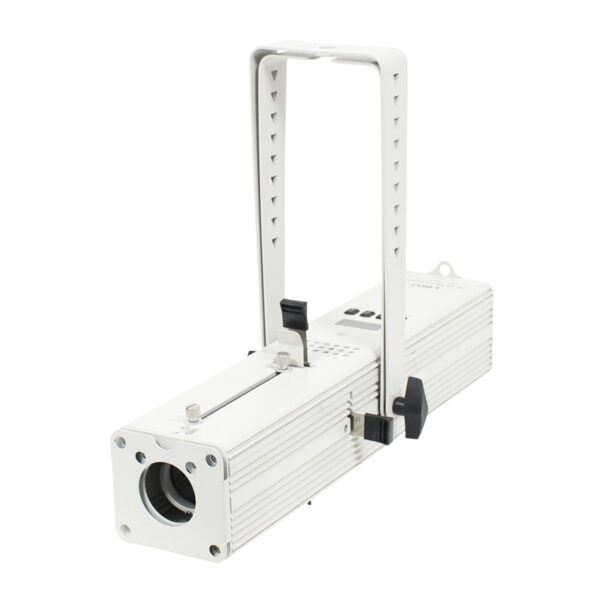

The PF 35 Profile spot is a mini profile powered by a high output 35W LED and uses a high quality optical system for sharp and precise projection. The beam angle can be manually focused and also adjusted via the 4 framing shutters. Custom gobos can be fitted into the unit via the easy access slot. A glass textured gobo and 4 metal effect gobos are also included. A removable frame allows users to easily insert coloured filters. 0-100% output and dimmer curves can be selected via the on-board 4 button LED menu or DMX.

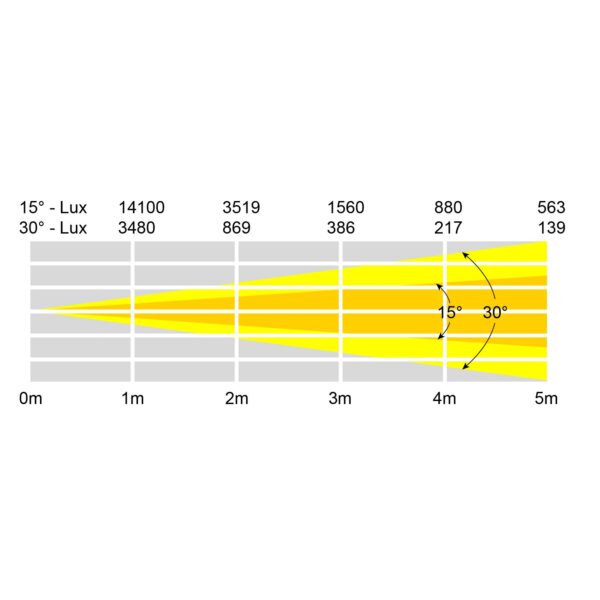

1 x 35W warm white LED (3200K), Adjustable beam angle: 15 Degree 30 Degree, 15 Degree 3,519 Lux @ 2m, 30 Degree 869 Lux @ 2m, 1kHz refresh rate, Adjustable focus, High quality optical system, DMX channels: 1/2 or 3 selectable, 0100% dimming, 4 dimming curves in both LED and halogen profiles: Linear, square law, inverse square law and Scurve, 4 framing shutters, Removable colour frame for filters, Easy access gobo slot, Includes a textured glass and 4 metal gobos, Bracket allows for multiple rigging or floor standing applications, PowerCON input/output, 3Pin XLR input/output, Fan cooled, Supplied with IR remote

Power consumption: 43W, Power supply: 100~240V, 50/60Hz, Fuse: T2A 250V, Dimensions: 340 x 160 x 430mm, Weight: 3.2kg
