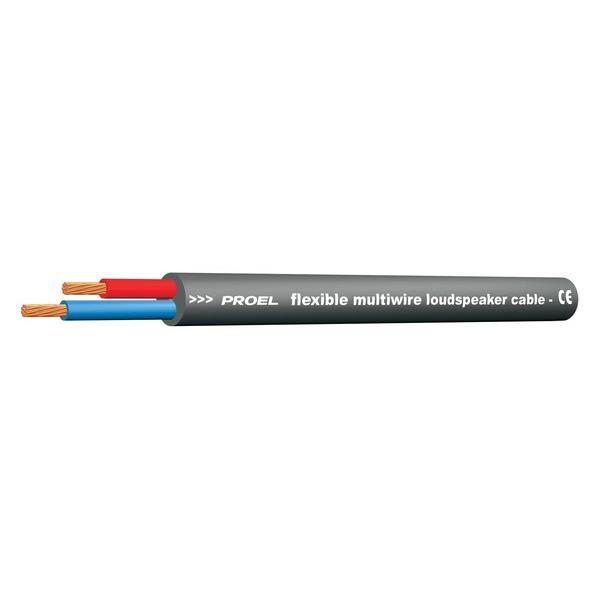

PROEL HPC620BK

Cavo ultra-flessibile a 2 conduttori twistati per diffusori acustici passivi

Cavo ultra-flessibile a 2 conduttori twistati per diffusori acustici passivi – sezione 2 X 2,5 mm². Colore nero

• Application fields: Passive speaker connections / sound reinforcement / studio installation / live
• Conductors: Bare copper 13 AWG = 48×0,25 mm
• Lay up: two conductors twisted in short concentric layers
• Insulation: flexible PVC 3,20 mm
• Jacket: Ultra – Flexible PVC – 60 Shore
• Overall diameter: 8,4 mm
• Cable section: 2.5 mm²/AWG13
• Electrical Resistance @ 20°C: 7,4 Ohm/Km (conductor)
• Electrical Capacitance @ 1 KHz: 131 pF/mt (conductor/conductor)
• Operating temperature: -20°C / +70°C
• Minumum bending radius: 10 x overall diameter
• Weight: 161 Kg/Km
• Color: Black
• Packaging: 100 m standard carton reel
• Packaging: 300 m wooden reel (HPC620BKR300)
