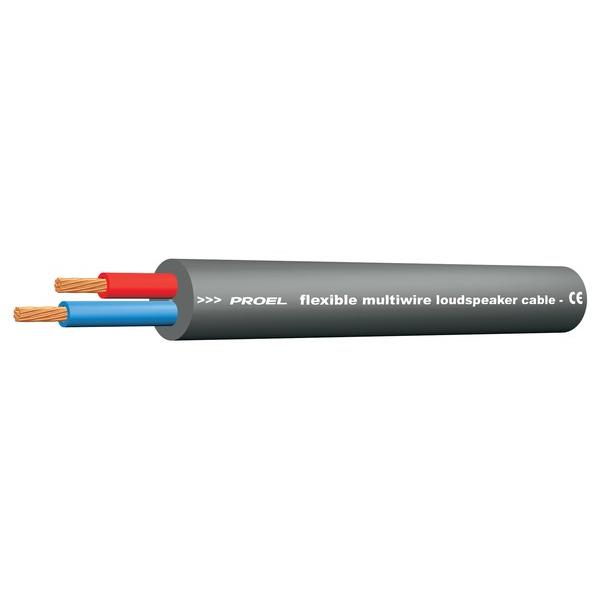

PROEL HPC624BK

Cavo ultra-flessibile a 2 conduttori twistati per diffusori acustici passivi

Cavo ultra-flessibile a 2 conduttori twistati per diffusori acustici passivi – sezione 2 X 4 mm². Colore nero

• Application fields: Passive speaker connections / sound reinforcement / studio installation / live
• Conductors: Bare copper 12 AWG = 80×0,25 mm
• Lay up: two conductors twisted in short concentric layers
• Insulation: flexible PVC 4,00 mm
• Jacket: Ultra – Flexible PVC – 60 Shore
• Overall diameter: 11,00 mm
• Cable section: 4 mm²/AWG12
• Electrical Resistance @ 20°C: 4,5 Ohm/Km (conductor)
• Electrical Capacitance @ 1 KHz: 116 pF/mt (conductor/conductor)
• Operating temperature: -20°C / +70°C
• Minumum bending radius: 10 x overall diameter
• Weight: 198 Kg/Km
• Color: Black
• Packaging: 100 m wooden reel
• Packaging: 300 m wooden reel (HPC624BKR300)
