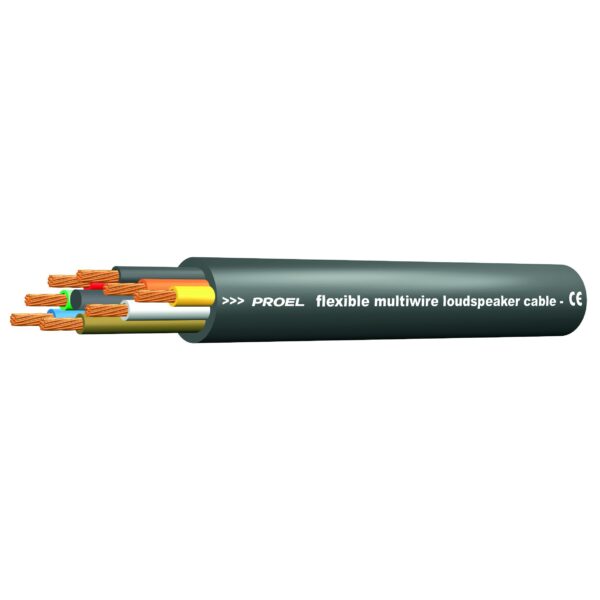

PROEL STAGE HPC684BK

Cavo flessibile a 8 conduttori twistati per diffusori acustici passivi

Cavo flessibile a 8 conduttori twistati per diffusori acustici passivi – sezione 8 X 4 mm². Colore nero

• Application fields: Passive speaker connections / sound reinforcement / studio installation / live
• Conductors: Bare copper 11 AWG = 133×0,193 mm

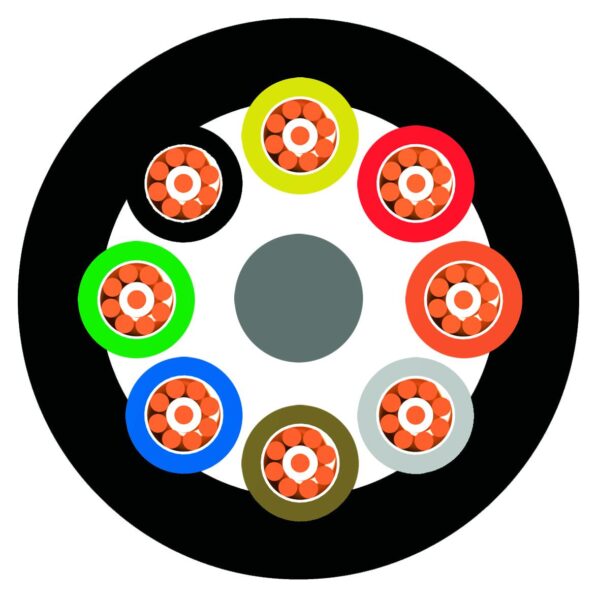

• Lay up: eight conductors twisted in short concentric layers
• Insulation: flexible PVC 3,80 mm
• Jacket: Ultra – Flexible PVC – 60 Shore
• Overall diameter: 18 mm
• Cable section: 4 mm²/AWG11
• Electrical Resistance @ 20°C: 4,50 Ohm/Km (conductor)
• Electrical Capacitance @ 1 KHz: 120 pF/mt (conductor/conductor)
• Operating temperature: -20°C / +70°C
• Minumum bending radius: 10 x overall diameter
• Weight: 650 Kg/Km
• Color: Black
• Packaging: 100 m wooden reel
