TOPP PRO TP HVA8.150

Name: TOPP PRO TP HVA8.150
Brand: TOPP PRO
SKU: tp-hva8-150
Availability: OutOfStock

699,00 €

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

Esaurito

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: N/A COD: tp-hva8-150 Categoria: Amplificatori a 100V Marchio: TOPP PRO

Descrizione
Recensioni (0)

Amplificatorein Classe-D 8 canali 1 Unità rack – 100/70 volts

• Class D design with SMPS
• 8 x 150 W on 70V/100V line
• Balanced inputs on Euroblock connectors
• Speaker outputs on Euroblock connectors
• 1 Unit 19” rack mount.
• 5,4 Kg Light weight

Power 70V (RMS) One Channel Driven	150W
Power 70V (RMS) All Channel Driven	135W x 8
Power 100V (RMS) One Channel Driven	150W
Power 100V (RMS) All Channel Driven	135W x 8
Input Sensitivity (Limiter Off)	0.9 – 1.1V (+0/-1dBv)
Input Impedance	20k? balanced or 10k? unbalanced
Frequency Response	(At 10dB Below Rated Power) 100Hz~15kHz (+0/-3dB)
Voltage Gain (100V)	40 (+0/-1dB)
THD	(Ref. 1kHz 1/8 Rated Power, A-Weighted) <0.1%
S/N Ratio	(Ref. Rated Power, A-Weighted) > 95dB
Crosstalk	(Below Rated Power) > 70dB
Damping Factor	(1kHz, 8W) > 200
Power/Output Circuity	Switching Power Class-D
Protections	Short circuit, open circuit, thermal, ultrasonic and RF
Controls	Front: On/Off Power Switch, Volume Channel A, B

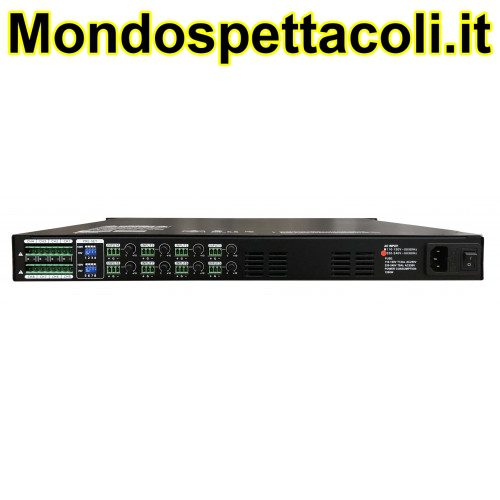

	Rear : 70/100V selector
Indicators	SIGNAL: 2 green LED – CLIP 2 red LED
POWER	1 green LED – PROTECTION: 2 red LED
Connectors	Inputs: Euro Block – Outputs: Euro Block
Power Supply	AC: 110-120V or 220~240V 50/60Hz
Dimension (W x D x H)	483 x 360 x 44 mm
Weight	5.4 kg
