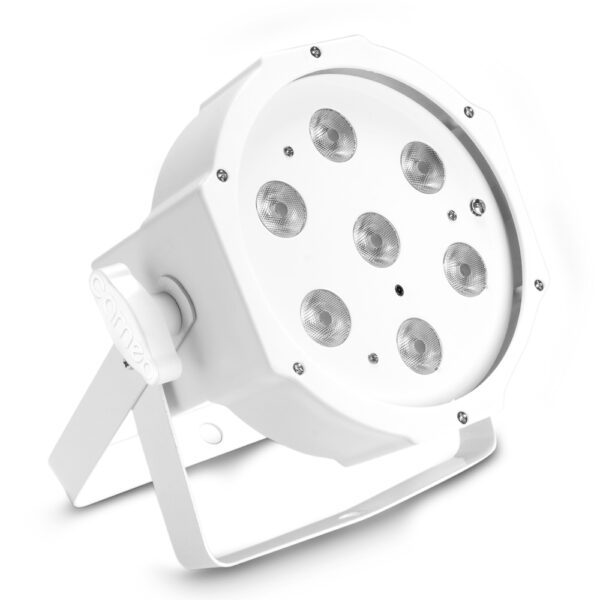

Cameo FLAT PAR 1 TW IR WH

Cameo FLAT PAR 1 TW IR WH – 7 x 4 W High-Power FLAT Tunable White LED PAR Light in white housing with IR remote control option

Equipped with seven 4 watt tunable white LEDs, the Cameo Flat 1 TW allows you to vary the white temperature from 3,400 to 7,000 K. This permits perfect adjustment from warm and subdued to cool and ultra bright tones to cover all scenarios that require white light. With high-efficiency convection cooling, the shallow-depth, 25° beam spread PAR light’s operation is absolutely noiseless making it an ideal choice for illumination tasks in shops, restaurants, bars and discotheques. Sporting a high 3,000 Hz refresh rate for flicker free performance, it is also perfect for motion picture and TV applications.

The Flat 1 TW provides 4 modes of DMX control, sound activation or automatic operation plus master, slave and standalone capability. It features a 4-button display for easy configuration, a high-speed strobe and dimming with a selection of 4 curves and halogen lamp-like or standard LED response. A convenient infrared remote control is available as accessory.

The compact ABS housing comes with adjustable twin brackets and sports 3-pin DMX plus IEC power inputs and outputs for daisy-chaining a maximum of 10 units. The Flat 1 TW is also available in black (item no. CLPFLAT1TW) or white versions (item no. CLPFLAT1TWWH).

• High-power 7 x 4 W Tunable White LED Flat PAR
• White colour temperature variable from 3,400 – 7,000 K
• Lens optimized for uniform light intensity
• Dimming with 4 selectable curves and halogen lamp-like or LED response
• 20 Hz high-speed strobe
• 4 DMX, automatic and sound control modes plus optional IR remote
• DMX and IEC power in and out for daisy chaining up to 10 units
• 4-button LED display for intuitive configuration
• Flat, compact ABS housing
• Low power consumption
• Twin brackets included

Tipo di prodotto	Proiettori PAR LED
Tipo	Interni
Spettro cromatico	Bianco caldo/freddo
Numero di LED	7
Tipo di LED	4 W
Frequenza di ripetizione	3000 Hz
Angolo di proiezione	25 °
Ingresso DMX	Presa XLR maschio a 3 poli
Uscita DMX	Presa XLR femmina a 3 poli
RDM	No
Protocolli	USITT DMX-512
Modalità DMX	3 canali, 7 canali, A 1 canali, A 2 canali
Funzioni DMX	Curva dimmer (8 preset), CW, Dimmer, Dimmer Response, Strobe, Temperatura colore (17 preset), WW
DMX wireless	No
Strobo Flash Rate	1 – 20 Hz
Modalità standalone	CW, Strobe, Temperatura colore (17 preset), WW
Elementi di comando	Down, Enter, Mode, Up
Indicatori	Display LED
Alimentazione	100 V – 240 V AC, 50/60 Hz
Potenza assorbita	22 W
Quanti dispositivi è possibile collegare (110V)	7
Quanti dispositivi è possibile collegare (240V)	10
Collegamento alimentazione elettrica	presa di corrente IEC maschio
Collegamento per passaggio corrente	Presa dispositivo IEC femmina
Materiale cassa	Plastica ABS
Colore cassa	Bianco
Classe di protezione IP	IP20
Raffreddamento	Convezione
Temperatura ambiente massima	0 – 40 °C
Flusso luminoso	1220 lm
Temperatura colore	3400 – 7000 K

Ingombro (senza staffa di supporto)

Larghezza	175 mm
Altezza	180 mm
Lunghezza	115 mm
Peso	1,2 kg
