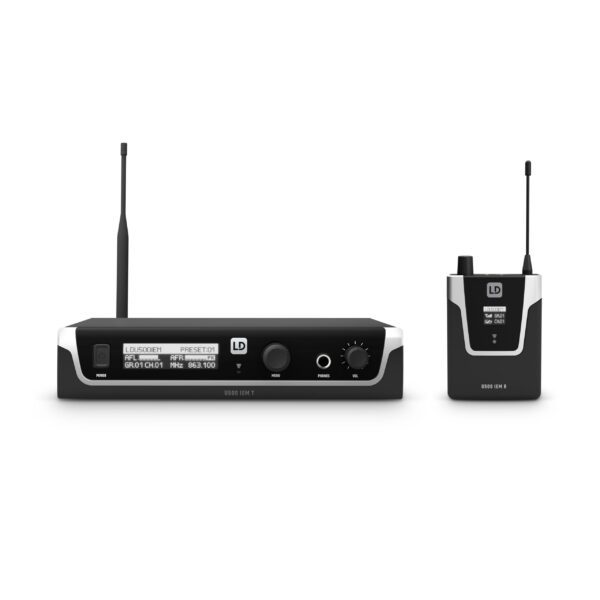

LD Systems U508 IEM

LD Systems U508 IEM – Sistema di monitoraggio in-ear – 863 – 865 MHz + 823 – 832 MHz

Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation.

U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.

To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear’s noise floor is exceptionally low.

Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.

U500® In-Ear Monitoring Systems are available for operation in five frequency ranges. The 470 – 490 MHz, 514 – 542 MHz, 584 – 608 MHz and 655 – 679 MHz bands permit running up to 12 systems simultaneously. In the 823 – 832 MHz + 863 – 865 MHz range six systems can be operated at the same time providing wireless monitoring for your entire band.

• Reliable in-ear monitoring with more than 100 m range
• 96 available channels
• 2, 10 or 30 mW ERP selectable transmission power
• Convenient infrared frequency syncing
• Individual user name assignment and memory for 10 custom presets
• Extended frequency response
• 3-band EQ with parametric mids
• Switchable limiter
• Stereo, focus and mono modes of operation
• High-contrast OLED display
• Transmitter with direct monitoring headphone output
• Bodypack receiver with three selectable squelch levels
• 10 h of bodypack receiver operation on two AA batteries
• Simultaneous operation of up to 12 systems
• U500® IEM transmitter compatible with U300® IEM bodypacks

Tipo di prodotto	Monitoraggio in-ear
Tipo	Set
Campo di radiofrequenze	823 – 832 MHz, 863 – 865 MHz
Peso	0,755 kg

LDU508IEMR – U508 IEM R

Tipo di prodotto	Accessori per monitoraggio in-ear
Tipo	Ricevitori
Campo di radiofrequenze	823 – 832 MHz, 863 – 865 MHz
Canali	12
Modo di trasmissione	FM, mono/stereo
Risposta in frequenza	40 – 16000 Hz
Uscite audio	Jack stereo da 3,5 mm
Livello di uscita audio massimo	33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
Elementi di comando	Down, On / Off, Up, Volume
Indicatori	Display OLED multifunzione, RF (LED)
Alimentazione	2 x 1,5 V AA
Durata d’uso	< 10 Std.
Larghezza	64 mm
Altezza	100 mm
Profondità	24 mm
Peso	0,095 kg
Accessori (forniti in dotazione)	2 x batterie AA, Antenna
Caratteristiche	LED di stato della batteria

LDU508IEMT – U508 IEM T

Tipo di prodotto	Accessori per monitoraggio in-ear
Tipo	Trasmettitori
Campo di radiofrequenze	823 – 832 MHz, 863 – 865 MHz
Canali	12
Modalità di funzionamento	Mono/Stereo
Modo di trasmissione	FM, mono/stereo
Risposta in frequenza	40 – 16000 Hz
Dinamica	88 dB
Ingressi	2
Connessioni ingressi	Combo TRS 6,3 mm, XLR bilanciato
Impedenza di ingresso (kOhm)	12 kOhm
Presa dell’antenna	BNC
Elementi di comando	Power On/Off, Pulsante di selezione del menu, Volume cuffie
Indicatori	Display OLED multifunzione
Alimentazione	12 – 18 V DC
Larghezza	212 mm
Altezza	43 mm
Profondità	123 mm
Peso	0,66 kg
Accessori (forniti in dotazione)	Adattatore di rete, Antenna BNC, Kit di montaggio su rack da 19
