RIGGATEC 400200052

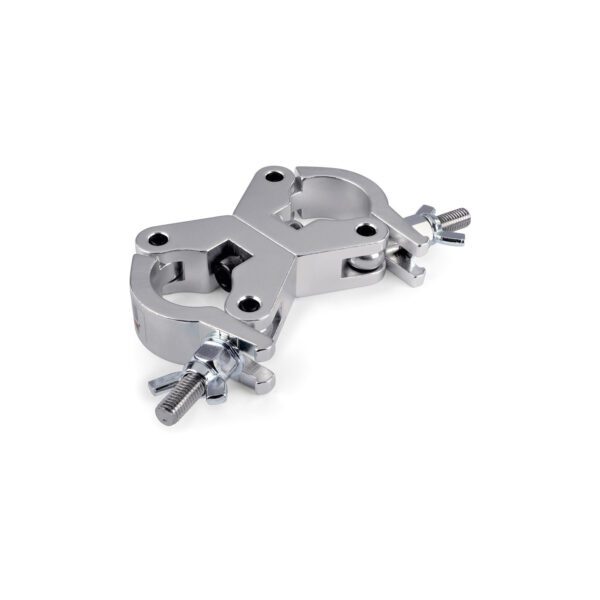

RIGGATEC 400200052 – Swivel Coupler Slim Silver max. load 750kg MKII (48 – 51 mm)

• For 48 – 51 mm pipe diameter
• 360° turnable
• TUV approved (certificate can be sent on request)
• Resilient up to 750 kg (tensile load)
• Clamp width: 30 mm
• Maximum shearing load: 100 kg
• Material: Aluminum 6061 T6
• Linked with bolt
• Lock screw M12 zinc coated with retaining ring, grommet and wing nut
• Outer dimensions: 113 x 30 x 162 mm (length x width x height)
• Weight: 0,89 kg
