Shure 503BG
99,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Solo 1 pezzi disponibili
Scopri i vantaggi del Noleggio Operativo: canoni mensili bassi e deducibilità fiscale al 100%.
Richiedi Preventivo| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |

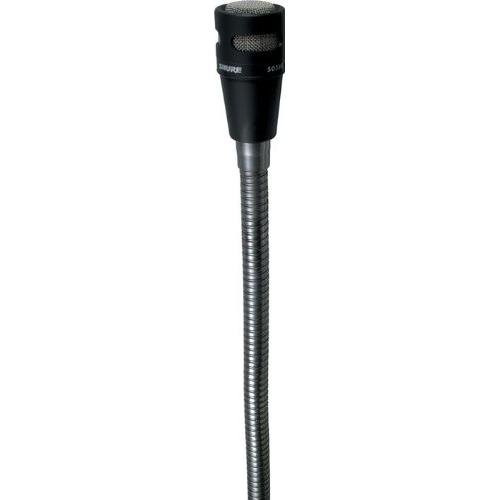

Developed for computer voice recognition applications, the 503BG microphone offers excellent voice fidelity while reducing background noise. Also use the 503BG in other close-talking applications such as paging and talkback.
The 503BG features a low-impedance, moving coil type transducer with an integral humbucking coil and an attached two-conductor shielded cable with a built-in strain relief. It produces a frequency response with an essentially constant output voltage over the voice spectrum when used close to the sound source.
The 503BG’s case is aluminum with a black enamel finish. It mounts to a gooseneck, a fixed pipe or a microphone stand using a standard 5/8″-27 thread. To secure the mounted BG503, tighten the 4-40 screw with the supplied #4 Allen (hex-head) wrench.
Features
- Optimized performance in voice processing and computer voice recognition applications.
- Smooth frequency response with excellent fidelity in the voice range.
- Cardioid pickup pattern and close-talking operation keep unwanted signals and background noise at low levels.
- Constant output over voice spectrum when close-talked.
- Humbucking coil minimizes undesirable hum effects such as CRT interference.
- Low-impedance design permits long cable runs in extreme hum fields.
- Small unobtrusive design does not interfere with CRT visibility.
- Rugged and reliable for years of consistent operation.
Operation
For best performance, speak as close to the 503BG as comfort permits. A distance of 1 to 5 cm (0.4 to 2 inches) provides the greatest discriminations between voice and background noise.
Acoustic Considerations
The 503BG maximizes performance in close-talking applications through its tailored frequency response, directionality and distance discrimination. It optimizes and controls sounds within the 100 to 7000 Hz frequency range and reduces sounds outside that range. The BG503 rejects noise through its inherent directional properties and discriminates against distant sounds in favor of close-range sounds.
Specifications
Type
Dynamic (moving coil), Unidirectional (Cardioid)
Frequency Response
100 to 7,000 Hz
Impedance
170 Ω actual
Output Clipping Level
open circuit voltage
-61.5 dBV/Pa (.84 mV) [1]
Polarity
Positive pressure on diaphragm produces positive voltage on white conductor with respect to black conductor
Hum Pickup
Maximum 15 dB equivalent SPL in m0e field
Cable
1.2 m (4 ft) two-conductor shielded
Housing
Aluminum with black enamel finish; stainless steel screen
Net Weight
128 g (4.5 oz.)
[1] 1 Pa = 94 dB SPL
Typical Frequency Response
Internal Connections
Overall Dimensions
