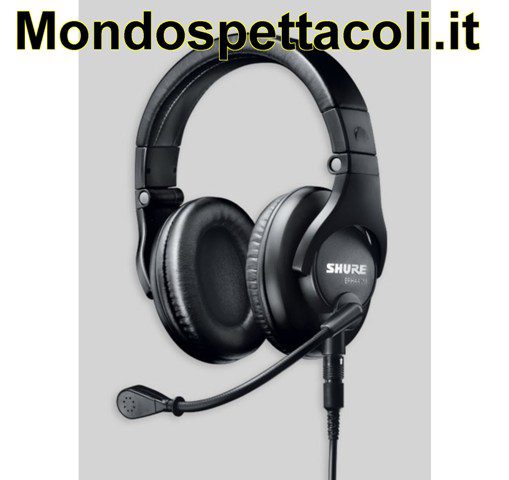

BRH440M Broadcast Headset

BRH series overview:

Designed to meet the needs of broadcast and media production professionals, the BRH440M & BRH441M Headsets provide exceptional audio quality, comfort and legendary Shure durability with user-replaceable accessories for a lifetime of use.

BRH440M Broadcast Headset features:

• • • Closed-back, supra-aural design with ultra-lightweight construction
    • Dynamic microphone delivers natural, highly intelligible vocal reproduction with cardioid polar
    • pattern and frequency response
    • optimized for communication in loud environments
    • Adjustable headband with cushioned temple pad for comfortable, ergonomic fit
    • Flexible boom microphone pivots 270 degrees for left or right side wear and precise positioning
    • Single-sided, fixed cable with unterminated ends (bare whip) enables connection to a variety of
    • devices. Kevlar® reinforced for
    • increased durability.
    • Legendary Shure durability designed under rigorous quality standards to withstand the demands of
    • everyday, professional use
    • User-replaceable ear pad and windscreen provided for a long product life

BRH440M Broadcast Headset specifications:

• • Net Weight (without cable) BRH 440M: 341 g / BRH 441M: 240 g
  • Cable Single-sided, detachable, unterminated, 6-conductor (1.8 m)
  • Microphone
  • Type Dynamic (moving coil)
  • Polar Pattern Cardioid
  • Frequency Response 50 to 15,000 Hz
  • Output Impedance 200 Ohms
  • Sensitivity (@ 1 kHz, open circuit voltage) -67.0 dBV/Pa* (0.45 minimum) *1 Pa – 94 dB SPL
  • Polarity Positive pressure on diaphragm produces positive voltage on pin 1 (red wire) with respect
  • to pin 3 (shield)
  • Headphone
  • Transducer Type Dynamic, Neodymium magnet
  • Driver Size 40 mm
  • Frequency Range 15 to 27,000 Hz
  • Sensitivity (@ 1 kHz) 101 dB/mW
  • Impedance (@ 1 kHz) 37 Ohms
  • Maximum Input Power 1000 mW
