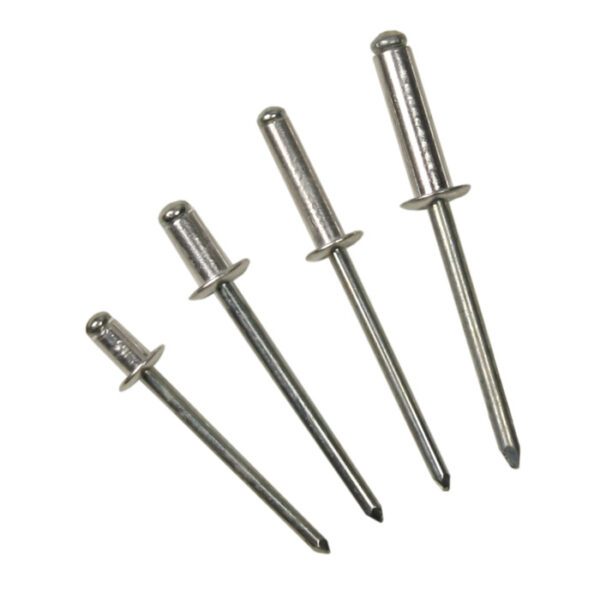

Bralo 55944812 – Rivetti Ciechi per Materiali Morbidi 4,8 x 12 mm
BLIND RIVETS FOR SOFT MATERIALS (ALUMINIUM)
This fixing ensures a secure and tight connection in soft materials. Therefore also particularly effective when used with materials such as plastic or wood.
The Bralo for soft materials is a mandrel break blind rivet This rivet is particularly suitable for materials that are soft or brittle, because the mandrel break load is controlled. It provides exceptional clamping force. A 3.5% aluminium-magnesium alloy gives increased tensile and shear forces.
Other rivet versions for special applications and requirements available in the shop.
- Single-sided application (blind rivet)
- Blind rivets can be inserted from both sides
- Can be used to connect soft and brittle materials, among other things (plastics, wood, glass fibre, metal to plastic )
- No damage to the surface after riveting
- Excellent resistance to temperature changes
- No loosening by dynamic influences (vibration-resistant)
- Available in aluminium with a magnesium content of 3.5%
- High quality, simple and quick installation.
- Ecological riveting process: no smoke, sparks or steam
- Simple, lightweight and rapid use.
| Tipo di prodotto | Dispositivi di fissaggio |
| Tipo | Chiodi |
| Ø rivetto | 4,8 mm |
| Lunghezza rivetto | 12 mm |
| Ø testa | 9,5 mm |
| Altezza testa | 1,4 mm |
| Ø mandrino | 2,73 mm |
| Campo di serraggio | 6,0 – 8,0 mm |
| Capacità di carico fermo | 2000 N |
| Capacità di carico trazione | 2700 N |
| Materiale rivetto | Alluminio |
| Lega rivetto | AlMg 3,5 |
| Materiale mandrino | acciaio |
| Superficie mandrino | Grezzo |
| Peso | 0,00278366666666666667 kg |
