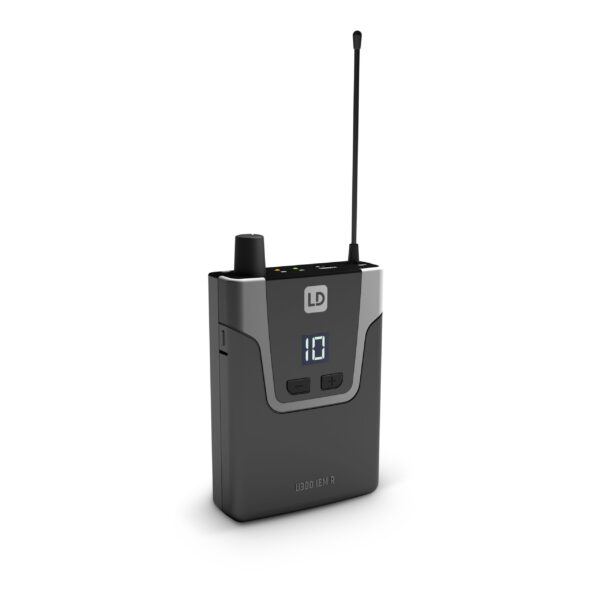

LD Systems U308 IEM R – Receiver
The new LD Systems U 300 IEM In-Ear Monitoring-System with 12 UHF channels offers outstanding sound quality and a large dynamic range in the 584 MHz – 608 MHz, 655 MHz – 679 MHz , 823 MHz – 832 MHz + 863 – 865 MHz, 470 MHz – 490 MHz or 514 MHz – 542 MHz.
The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 50 Hz – 16 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The U 300 IEM permits simultaneous operation of up to 6 systems.
Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more.
| Tipo di prodotto | Accessori per monitoraggio in-ear |
| Tipo | Ricevitori |
| Campo di radiofrequenze | 823 – 832 MHz, 863 – 865 MHz |
| Canali | 12 |
| Modo di trasmissione | FM, mono/stereo |
| Risposta in frequenza | 50 – 16.000 Hz |
| Fattore di distorsione armonica (THD) | 0,25 % |
| Uscite audio | Jack stereo da 3,5 mm |
| Minima impedenza collegata | 16 Ohm |
| Livello di uscita audio massimo | 100 (@ 16 Ohm capacità di carico) mW, 73 (@ 33 Ohm capacità di carico) mW |
| Presa dell’antenna | Fissata alla cassa |
| Elementi di comando | Canale su, Channel down (canale giù), Interruttore di accensione e spegnimento, Regolatore di volume. |
| Indicatori | RF (LED), Schermo a cristalli liquidi |
| Alimentazione | 2 x 1,5 V AA |
| Durata d’uso | < 10 Std. |
| Larghezza | 64 mm |
| Altezza | 103 mm |
| Profondità | 24 mm |
| Peso | 0,085 kg |
| Caratteristiche | incl. batterie, LED di stato della batteria |
