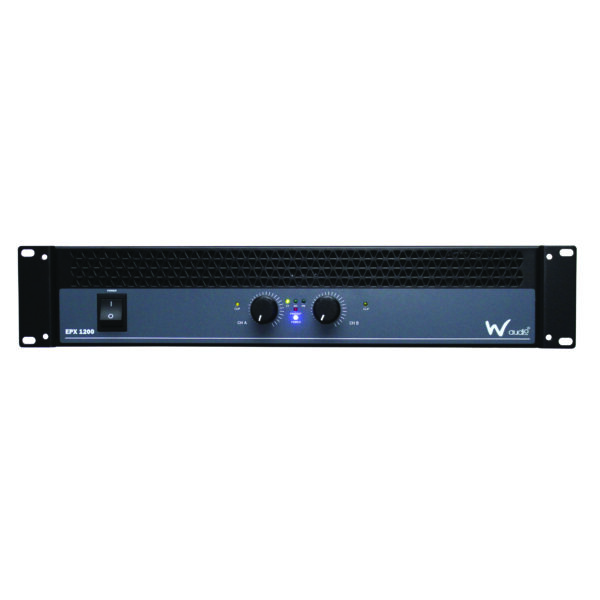

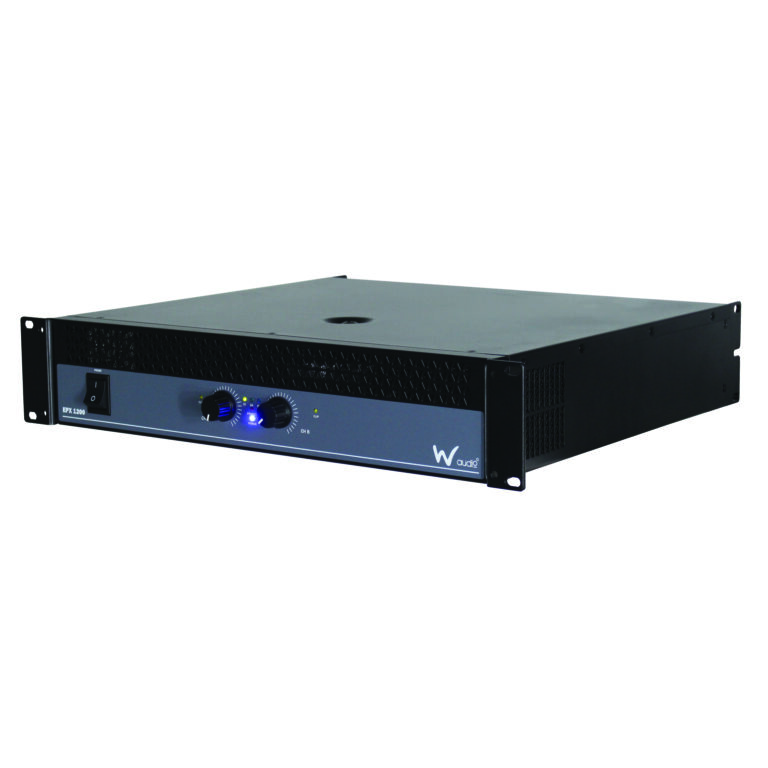

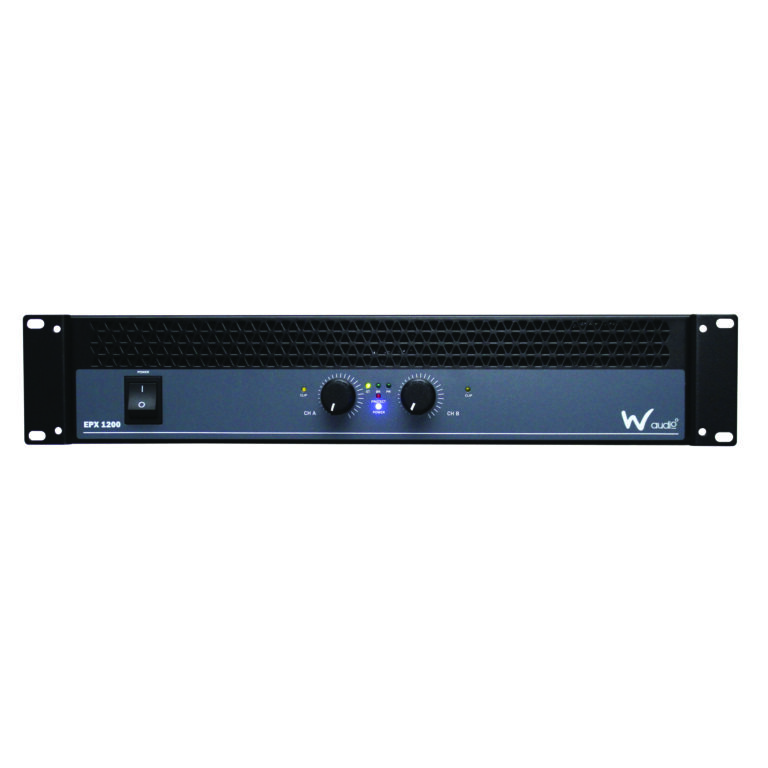

EPX 1200 Amplifier

W Audio have designed the EPX Series power amplifiers to work perfectly with most loudspeaker systems. These power amplifiers feature high power outputs, extended reliability, and superior stability for a wide range of applications.

2 x 600Wrms @ 4Ohm, 2 x 400Wrms @ 8Ohm, Bridge 1200Wrms @ 8Ohm, Frequency response: 20Hz to 20kHz, Input sensitivity: 0.775V / 1.0V / 1.44V, Protection circuits: Soft start, limit, thermal, short circuit, overload, DC fault protection and AC power supply fuse, LED indicators: Power, protect, clip, stereo, parallel and bridge, Input connections: 2 x XLR sockets, 2 x 1/4” jack sockets, 1 x powerCON mains input, Output connections: 2 x speakON connectors, 2 pairs of binding posts, 1 x speakON bridge connector, Additional features: Switchable stereo, parallel and bridge and filters/crossover: High pass and low pass and ground lift

Power supply: AC 240V/50Hz, Dimensions: 87 x 481 x 450mm, Weight: 18kg

Manuale in PDF da scaricare
