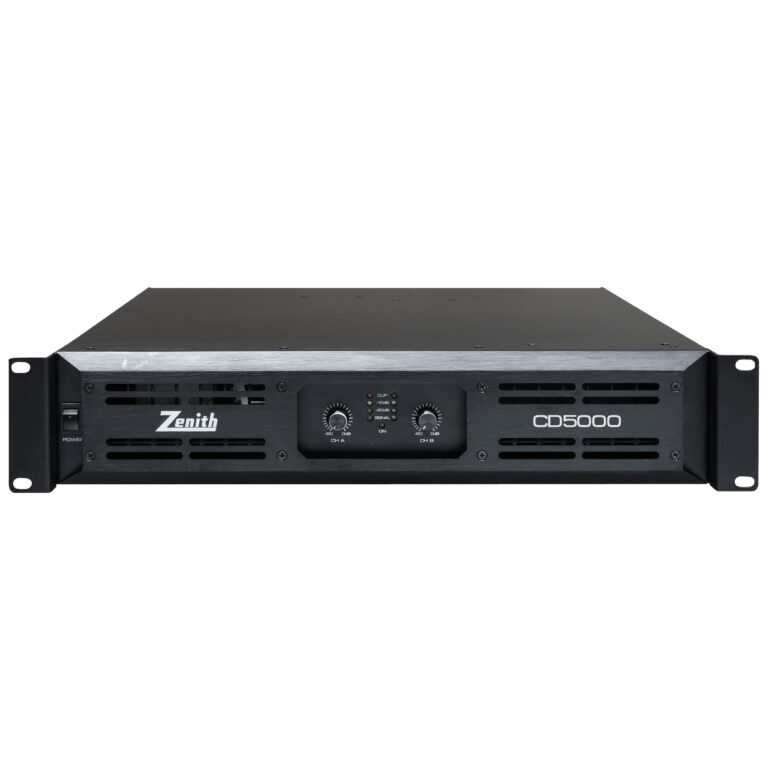

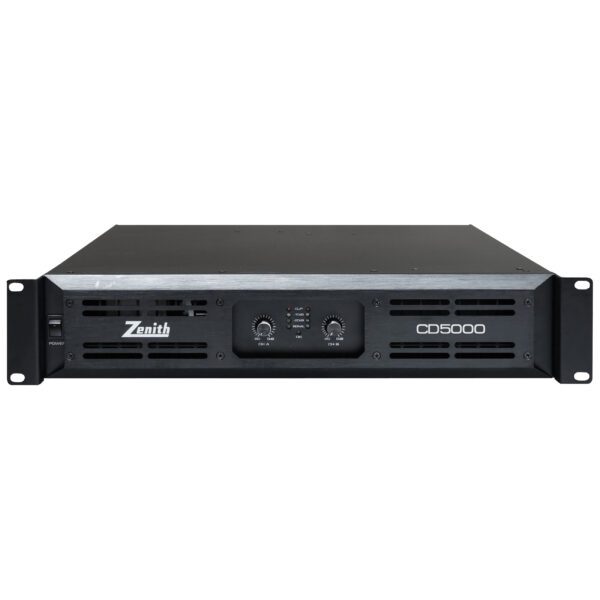

CD 5000 Amplifier

The CD series feature high power, outstanding sound quality and superior stability for a wide range of installed sound systems as well as portable live sound applications. Available in two and four channel versions and with a RMS wattage of up to 8000W this series feature class D technology in a compact 2U package. Automatic clip limiting along with high efficiency tunnel cooling and DC fans ensure reliability time after time.

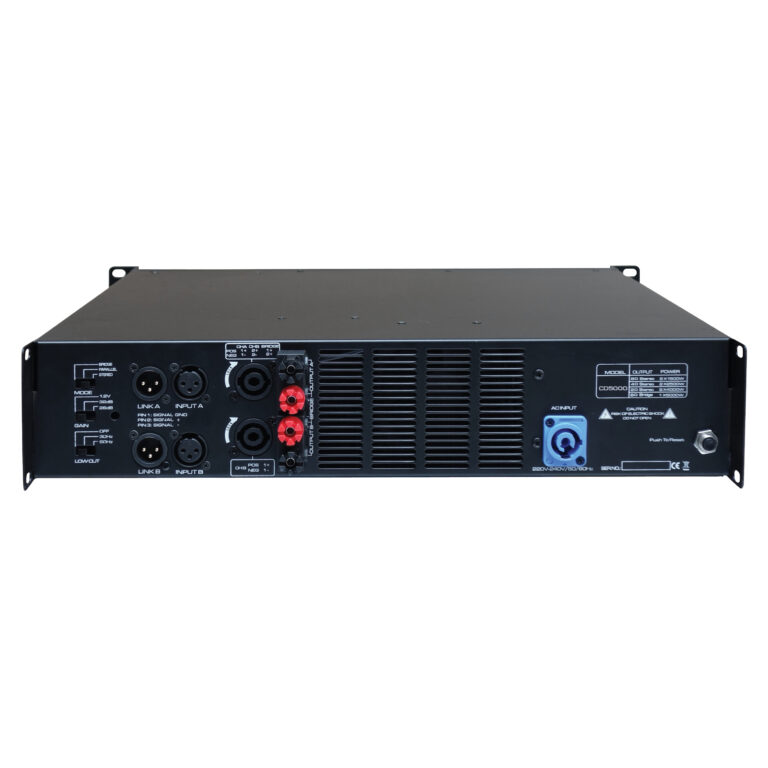

Power output @ 8Ohm: 2 x 1000Wrms, Power output @ 4Ohm: 2 x 1700Wrms, Power output @ 2Ohm: 2 x 2500Wrms, Power output bridge @ 8Ohm: 1 x 3400Wrms, Power output bridge @ 4Ohm: 1 x 5000Wrms, Frequency response: 20Hz to 20kHz, Input sensitivity: 1.2V, 32dB or 26dB, Min. Load impedance (Stereo): 2Ohm, Min. Load impedance (Bridge): 4Ohm, Protection circuits: Soft start, limit, thermal, short circuit, overload, DC fault protection and AC power supply fuse, LED indicators: Power, active, signal and clip, Input connections: 2 x XLR sockets, 1 x powerCON mains input, Output connections: 2 x speakON connectors and 2 pairs of binding posts, Additional features: Switchable stereo, parallel and bridge and low pass filter

Dimensions: 88 x 483 x 460mm, Weight: 9.5kg
