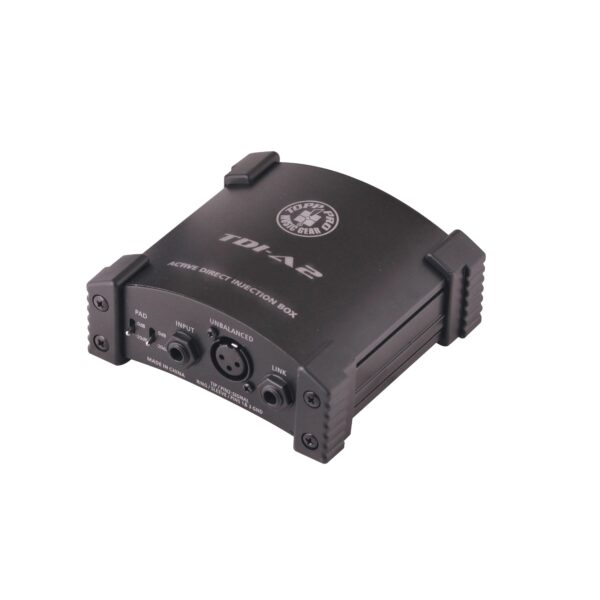

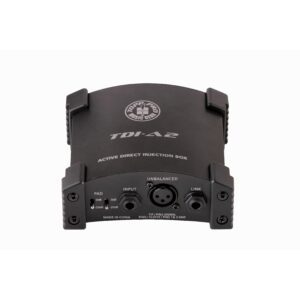

TOPP PRO TP TDIA2
42,00 €
D.I. Box attiva a 1 canale
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
D.I. Box attiva a 1 canale

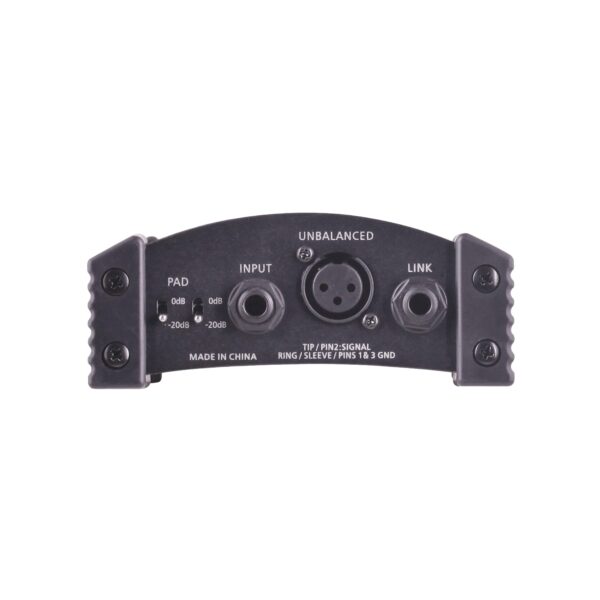

- Jack 1/4″ and XLR unbalanced input
- Jack 1/4″ unbalanced link output
- XLR balanced output Ground lift
- 20 dB attenuator
- 48V phantom power or 9V battery
| Inputs | 1/4″ mono jack connector (Top hot, sleeve ground) or 3-pin XLR connector (pin 2 hot, pins 1-3 ground, unbalanced parallel link output 1/4″ jack connector for feeding to other equipment or via buffer amplifier |
| Attenuator | At 0dB / At 20dB |
| Impedance | 1M Ohm / 47K Ohm |
| Max. Input Level | +13dB / +33dB |
| Outputs | 3-pin connector, transformer balanced output, will drive lines from 600ohm upwards. Maximum output level clip greater than +6dBu with battery or Phantom supply. |
| Frequency Response | 10Hz to 30KHz, ±1dB |
| Noise | -108dBu “unweighted” |
| THD | Less than 0.02% a 1KHz, 0dBu Output |
| “Phantom Power” power requeriments | +20V DC to +48V DC |
| Current Drain | “Phantom power” less than 8mA, Battery less than 2mA |
| Dimensions | 130 x 127 x 45mm |
| Weight | 0.6Kg |
| Peso | 0,65 kg |
|---|---|
| Codice Ean | 8032496630258 |
