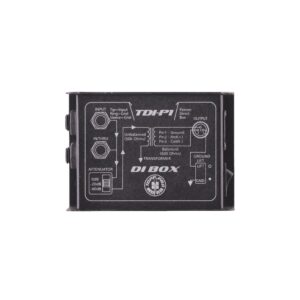

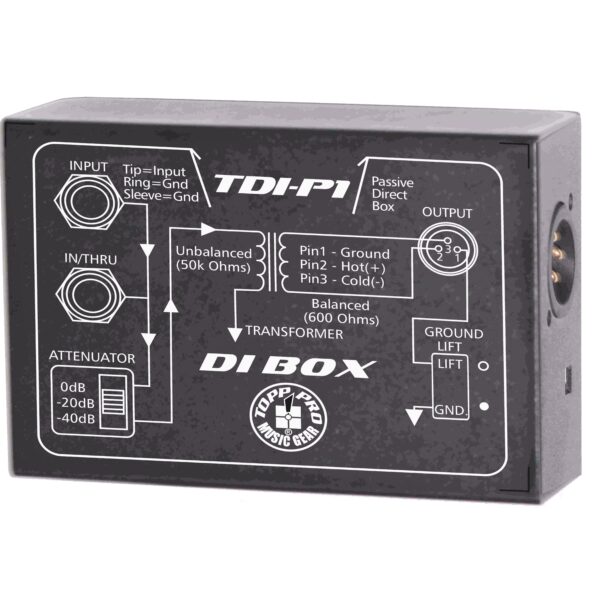

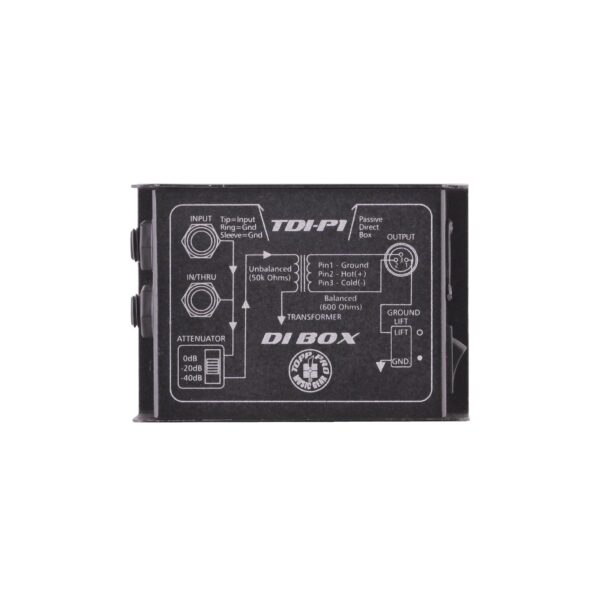

D.I. Box passiva a 1 canale

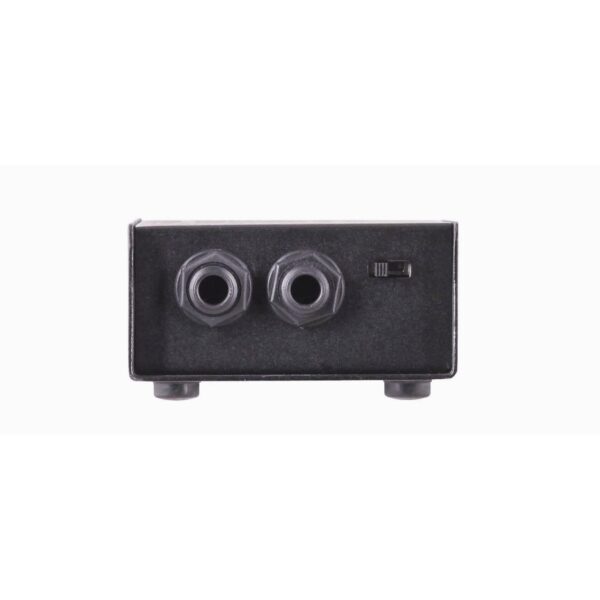

- Jack 1/4″ unbalanced input
- Jack 1/4″ unbalanced link output

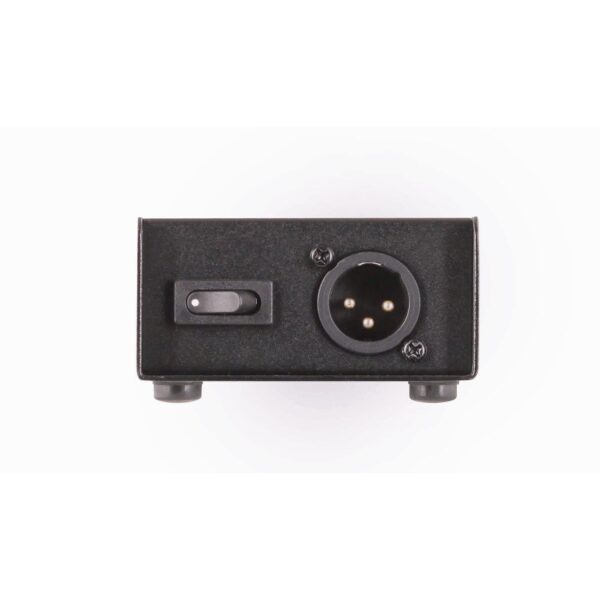

- XLR balanced output Ground lift
- 20 dB attenuator
Input | 1/4″ mono Jack connector (Tip Hot, Sleeve Ground) parallel link output 1/4″ Jack connector |
for feeding to other equipment | |
Attenuator | 0dB / 20dB / 40dB |
Impedance | Unbalanced 50K Ohms / Balanced 600 Ohms |
Output | 3 pins connector, transformer balanced, will drive lines from 600 Ohms |
Frequency Response | 10Hz to 30KHz ±1dB |
Dimensions | 127 x 76 x 45mm |
Weight | 0.54Kg |
